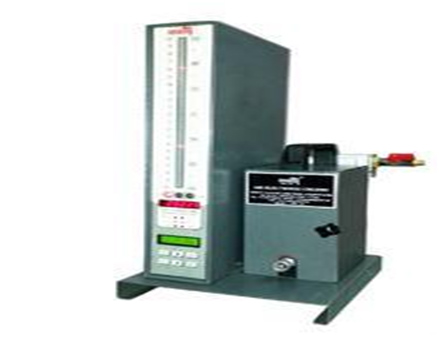

Air Gauge Unit (Column Type)

• Tri colour bar graph display with markers.
• Tri colour display indicates component status (RED-Reject, GREEN-Ok, YELLOW-Rework.) plus 3 colour LED for status indication (HI / OK / Low)
• 6 digit LED display for readings.
• LCD display for easy user interface / program setting.
• Least count of 0.1 µ / 0.5 µ / 1µ (µ → micron).
• Selectable range of ±10 µ / ±30 µ / ±100 µ.
• Metric / inch measurements.
• Absolute / relative readings.
• Mode: Max / Min / TIR.
• Auto sensing of component feature.
• RS232 output port for PC interface to transmit data. (SPC)
• User friendly software for Master calibration.
• 10 programs can be stored against any serial number and any one program can be recalled by selecting the serial number. (optional).
• Optional Relay Output.
• Optional foot switch interface.
• Wireless network interface optional.
