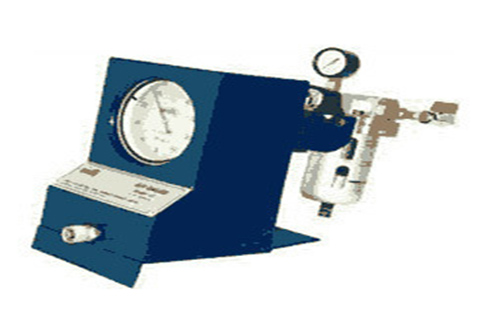

Air Gauge Unit (Dial Type)

• Useful for fast inspection of components in mass and batch production.
• Quick response to measurement.
• Works on null balance principle.
• Input pressure of 4 – 10 kg/cm2.
• Easy setting, two setting masters ensure correct linear calibration.
• Measuring range :
  • ±0.040 mm
  • ±0.020 mm
• Least count :
  • 0.001 mm
  • 0.0005 mm
• Repeatability of the instrument ±1 division.
• Inbuilt filter and regulator unit ensures moist and oil free air supply.
• Differential Air Gauge on request.
