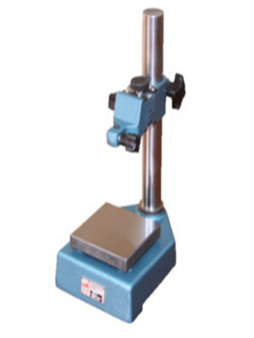

Comparator Stand

• It is sturdy and rugged comparator stand with cast iron base.
• It is provided with hardened, stress relived ground and lapped rectangular flat/serrated base.
• The hardened and ground vertical column is fitted to the base at the corner of the table.
• This allows the dial gauge to be positioned vertically over all the points on the base.
• The vertical columns are available in two lengths 300 mm and 400 mm for CS 3A & CS 3Bmodels respectively.
• The column has a helical threaded arm on which the dial gauge is fixed and can be accurately positioned on the job by means of threaded nut.
• Granite base stand also available
