Research and Lab Equipment - Refrigerator

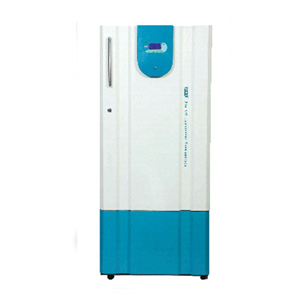

‘Eltek' Laboratory Refrigerators are specially designed with aesthetic appearance for storage of Vaccines, Reagents. Cultures. Medicines and Blood samples etc. These refrigerators are available in 10 basic models to fit storage requirements. They are equipped with Hermitical type heavy duty compressors. Inner chamber having direct airflow temperature uniformity to maintain vital operational temperature at 2 to 8'C. Display ensures crystal clear and accurate temperature values from long distance. The transparent inner door provides clear viewing kept in the chamber.

Salient Features:
- Micro controller based graphic LCD display.
- CFC free refrigerant and high density PUF insulation.
- Audio-Visual alarm when the temperature deviates.
- Blower Motors for Temperature uniformity in chamber, - CFL lamp for chamber internal visibility.
- Purported Stainless Steel heavy duty baskets.
- Castor Wheels for mobility.
- Door open Alarm.

7
Technical Specifications :
MODEL NO. ELR-100 ELR -200 ELR -300 ELR -400 ELR -500 ELR -600 ELR -700 ELR -800 ELR -900 ELR -1000
Temperature 2 to 8°C 2 to 8°C 2 to 8°C 2 to 8°C 2 to 8°C 2 to 8°C 2 to 8°C 2 to 8°C 2 to 8°C 2 to 8°C
Inner Dimensions (mm) 450x450x500 500x450x900 550x500x1100 600x560x1200 600x600x 1400 650x640x1450 700x690x1450 750x740x1450 1040x600x1450 1050x660x1450
External Dimensions (mm) 570x650x920 620x690x1320 670x700x1550 720x780x1670 720x810x1870 770x850x1950 820x890x1950 890x1160x2070 1160x1000x2070 1370x1030x2070
Temp. Accuracy ± 0.5°C ± 0.5°C ± 0.5°C ± 0.5°C ± 0.5°C ± 0.5°C ± 0.5°C ± 0.5°C ± 0.5°C ± 0.5°C
Storage Volume 100 Ltrs 200 Ltrs 300 Ltrs 400 Ltrs 500 Ltrs 600 Ltrs 700 Ltrs 800 Ltrs 900 Ltrs 1000 Ltrs
No. of Baskets 3 4 5 5 6 6 8 8 8
Power Supply 230 VAC 50Hz 230 VAC 50Hz 230 VAC 50Hz 230 VAC 50Hz 230 VAC 50Hz 230 VAC 50Hz 230 VAC 50Hz 230 VAC 50Hz 230 VAC 50Hz 230 VAC 50Hz
Chamber MOC 0.8 mm S.S.-304 0.8 mm S.S.-304 0.8 mm S.S.-304 0.8 mm S.S.-304 0.8 mm S.S.-304 0.8 mm S.S.-304 0.8 mm S.S.-304 0.8 mm S.S.-304 0.8 mm S.S.-304 0.8 mm S.S.-304
No. of Chamber Blowers 1 Axial Fan 1 Motor 2 Motors 2 Motors 2 Motors 2 Motors 2 Motors 2 Motors 2 Motors 2 Motors

*GMP Model: Inside stainless stee1 304, 0.8mm thick and outside stainless steel 304, 1.00mm thick. Standard Model: Inside Stainless Steel 304, 0.8mm thick and outside 1.00mm mild Steel powder coated.

Optional Accessories:
8.14 temperature data scanner with sensors, printer interface data management, drive data retrieval facility.
Mobile alert via GSM in case system fails.
Power Failure alarm (Optional).
Validation Port (Optional).

Calibration:
The equipment calibrated with the help of master calibrator, which is certified for its accuracy by Electronics Regional Test Laboratory (ERTL - Mumbai.
