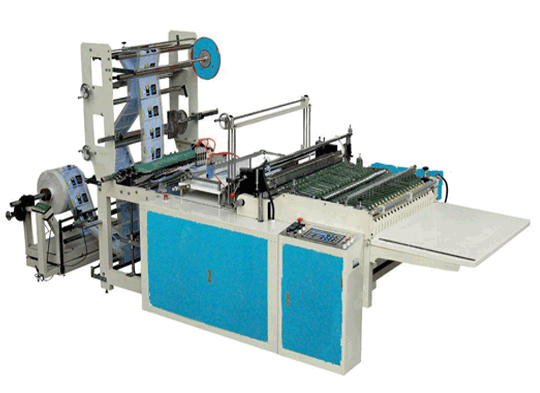

Automatic Side Sealing Machine

Features --
  • Suitable for HM, PP, LDPE, HDPE, HMHDPE, LLDPE and other plastic films
  • Suitable for Plain and Printed Bags
  • Imported Photo Cell can be attached to operate for Printed Bags
  • Imported Servo Drive and Motor controlled Bag material drawing system which makes the machine automatic
  • For producing your required bags, just to key-in your required bags length to 'Controller (motion control system)', the machine will be able to make your required bags length automatically without any manual adjustment
  • Variable Speed Drive with Ingra-Red Sensor for Unwinder system assuring Automatic Feeding of Bag material to the machine
  • Variable Speed Drive for Main motor drive for changing speed of the machine like fan regulator
  • The following optional attachments are available to produce variety of bag structures
    - Lip Formation
    - Bottom Gusseting
    - Tape Applicator
    - Hole Punch
    - Film Folding Device
Model SS 0124 SS 0227 SS 0332 SS 0436
Working Width 2” to 22” 2” to 26” 2” to 30” 2” to 34”
Length Control 2” to 30” 2” to 30” 2” to 36” 2” to 40”
Bags Production 30 - 150
bags / min
30 - 150
bags / min
30 - 150
bags / min
20 - 150
bags / min
