Digital readout - xtreme+
            for radial drill

All the functions of Xtreme + Mill

Specially designed for radial drill machine

User friendly GUI

2/3/4 axis configuration

Part tolerance

Touch probe interface

IR remote keyboard

  Vertical screen profile
              projector

Models V30 / V36 / V40

Screen size 300 / 360 / 400mm

Choice of work stage

Traverse X & Y axis

Choices of telemetric lens

Vertical traverse

100mm with motorized movement

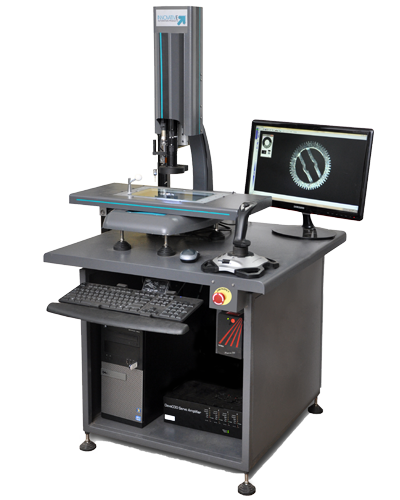

  Video vision Machine

Video edge detection

Profile scanning

SPC analysis

Part view with dimensions

Touch probe

Magnification 30X–200X

Fully dimensioned part view

  USB LVDT Interface

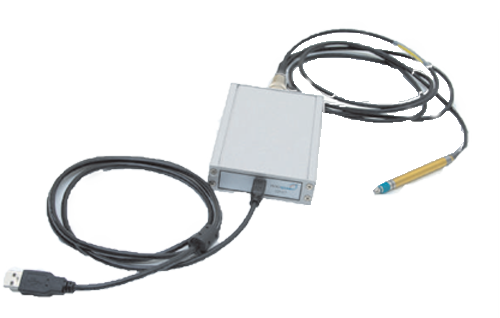

          LUIB-01

Plug & play USB LVDT signal conditioner

Resolution - 1μm, 0.1μm or customized (factory programmed)

Compatible to peterhirt, Tesa, Marposs, Mhar inductive probe

Excitation frequency 20HZ to 20 Khz (factory settable)

Sampling frequency 167 samples per second

ADC resolution - 16 bit

USB 2.0 compliant

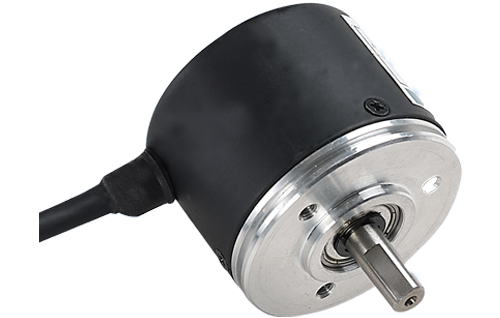

        Rotary Encoder

Diameter : 40mm & 58mm / Shaft diameter : 6 / 8 / 10 mm

Specially designed for radial drill machine

Different mounting options

Accuracy : +/- 360 deg (8 x line count) down to + or - 15"

Output : +5V TTL square wave

Incremental encoder

To be used with ME-6012 magnetic read heads
