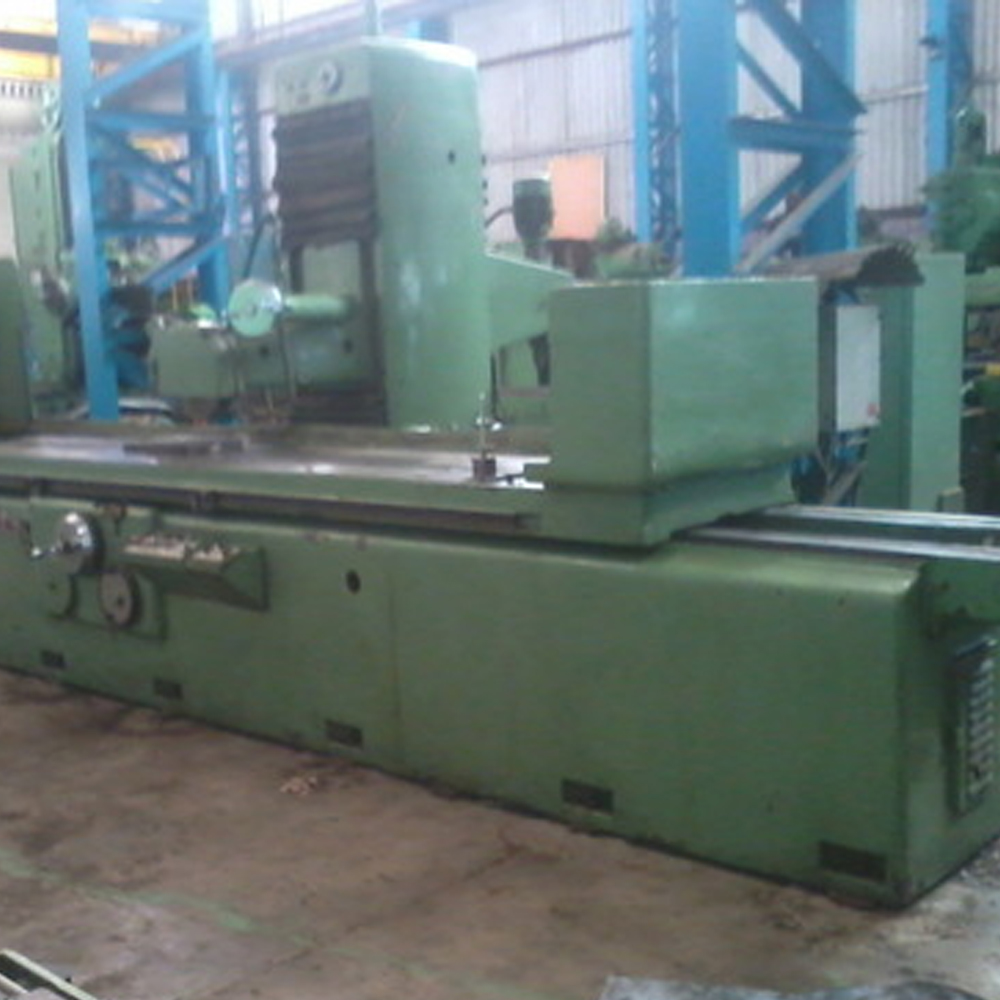

Slide Way Grinding Machine

• Length 5000 mm
• Width 1500mm
• Height 1250mm
• Clamping Width 1250mm
• Clamping Width (table Width)
• Distance between Column 1500mm
• Cross Travel 2090mm
• Overall Lenth Approx. 14000mm
• Overall Height Approx 4800mm
• Overall Width Approx 5800mm
• Maximum Weight of workspace 4500 kg
• Command of the table
• Group Type of Hydraulic The VH4
• Engine Comondo 18.5 kw
• Table Speed infinitely adjustable 5-45m/min

Slide Way Grinding Machine Jobwork

Slide way Cum Surface Grinding with dual heads.Hydraucally operated. Slide way Cum Surface Grinding with dual heads.Hydraucally operated. Make- ELB Made in Germany. Table 2500 x 600mm. Vertical stroke- 650 mm
