PRODUCTS » Mini Float Guided Level Switches For Liquids - MFGSNext Product

Economical, compact and easy to install. Generally used for applications requiring very short insertion lengths and limited float travel. It is mounted on top, bottom or side of the tank..

‡ Specifications

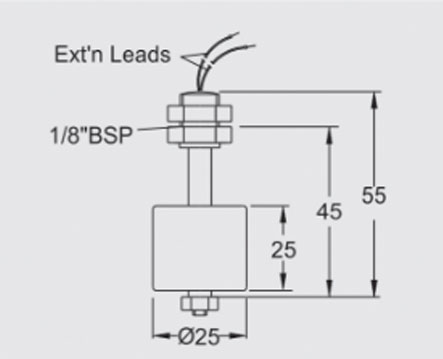

Model : MFGS – U21
Guide Tube x Float : PP x PU Float,Ø 25	Process Connection : 1/8" BSP	Reed Switch x Action : 10VA ,NO x Reversible
Differential : 3-5mm	Termination : PVC leads x 300mm Long	Max. Temp : 70°C
Max. Pressure : 1 Kg/cm2	Density : ≥0.75 g/cm3	Unit Price - INR 284/-

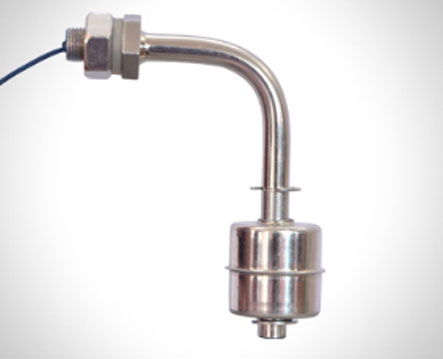

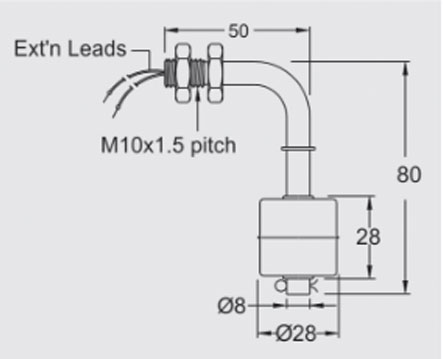

Model : MFGS – S39
Guide Tube x Float : SS316 x float Ø 28	Process Connection : M10	Reed Switch x Action : 10VA ,NO x Reversible
Differential : 3-5mm	Termination : PTFE leads x 300mm Long	Max. Temp : 100°C
Max. Pressure : 5 Kg/cm2	Density : ≥0.8 g/cm3	Unit Price - INR 981/-

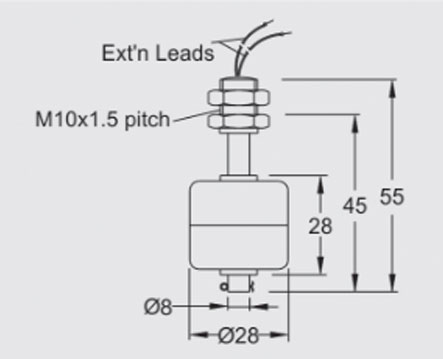

Model : MFGS – U39 (S)
Guide Tube x Float : SS316 x float Ø 28	Process Connection : M10	Reed Switch x Action : 10VA ,NO x Reversible
Differential : 3-5mm	Termination : PTFE leads x 300mm Long	Max. Temp : 100°C
Max. Pressure : 5 Kg/cm2	Density : ≥0.8 g/cm3	Unit Price - INR 1319/-

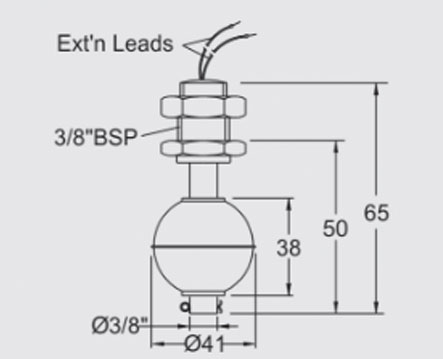

Model : MFGS – S43)
Guide Tube x Float : SS316 x float Ø 4128	Process Connection : 3/8" BSP	Reed Switch x Action : 10VA ,NO x Reversible
Differential : 3-5mm	Termination : PTFE leads x 300mm Long	Max. Temp : 100°C
Max. Pressure : 5 Kg/cm22	Density : ≥0.8 g/cm3	Unit Price - INR 1483/-

‡ Terms & Conditions :

- Payment against proforma invoice.
- Minimum order quantity 10 Nos.
- Taxes are extra as applicable.
- Price ex-works inclusive of packing.
- Delivery 2 Weeks

‡ Applications :

Hot Water/Coffee Servers, Vending Machines, Lubrication Systems & Spark Erosion Machines
