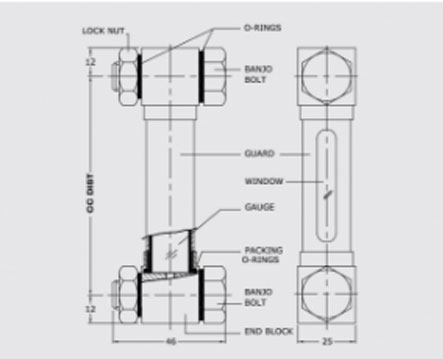

Economical, rugged, compact & reliable gauge for visual indication of oil level in small tanks.
| Gauge : Borosilicate Glass x 16mm OD | Range (CCD) : 75 - 300mm | Wtd Parts : CS |
| Visibility : CCD minus 40mm | Process Connection : M12 OR M8 Banjo Bolts | Packing : Neoprene (700C) or Viton (1000C) |
| Max. Temp : 100°C | Max. Pressure : 1Kg/cm2 | - |
| CCD (mm) | Model No M12 X Neoprene | Unit Price * | Model No M8 X Neoprene | Unit Price * |
|---|---|---|---|---|
| 100 | OLG-11A | 1080/- | OLG-21A | 1035/- |
| 200 | OLG-11B | 1125/- | OLG-21B | 1080/- |
| 300 | OLG-11C | 1170/- | OLG-21C | 1125/- |
| CCD (mm) | Model No M12 X Viton | Unit Price * | Model No M8 X Viton | Unit Price * |
|---|---|---|---|---|
| 100 | OLG-12A | 1234/- | OLG-22A | 1190/- |
| 200 | OLG-12B | 1279/- | OLG-22B | 1234/- |
| 300 | OLG-12C | 1324/- | OLG-22C | 1279/- |
- Minimum order qty 10 nos.
- Payment against proforma invoice.
- Price ex-works inclusive of packing.
- Taxes are extra as applicable.
- Delivery 2 Weeks.
- Mention Quotation No as Online price from punetechtrol.com in Purchase Order
Small Storage & Process Tanks
