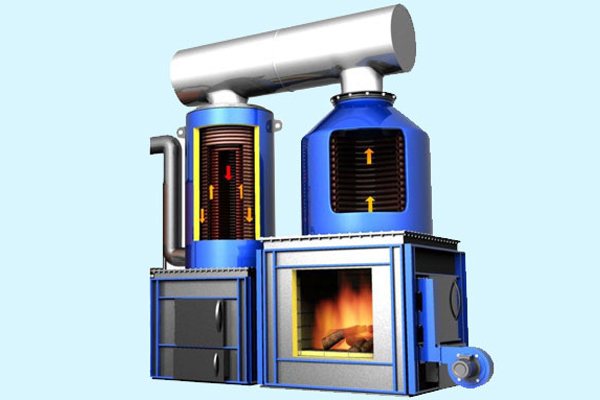

Larger, more efficient 4-pass designs are manufactured in capacity range of 400,000 to 4,000,000 kcal/hr, in which the heat exchanger is split in two vertical sections; the radiant section installed above the furnace & the convection section installed next to it and connected with a refractory lined flue duct. Although, this design takes up a large floor space, it is more efficient and well planned for thermal expansion.
The vertical design with integral furnace assures rated output on any sold fuel like coal, wood & bagasse. The well-planned design of the DELTA ensures thermal expansion with low stress.
| PRODUCT NAME |
|---|
| 4 Pass Solid Fuel Fired Thermic Fluid Heaters |
| Model | Capacity (kg/hr) |
|---|---|
| DELTA 400 | 400000 |
| DELTA 600 | 600000 |
| DELTA 800 | 800000 |
| DELTA 1000 | 1000000 |
| DELTA 1500 | 1500000 |
| DELTA 2000 | 2000000 |
| DELTA 2500 | 2500000 |
| DELTA 3000 | 3000000 |
| DELTA 3500 | 3500000 |
| DELTA 4000 | 4000000 |
Thermic fluid heaters find their uses where high temperatures are required at low pressures. Thermic fluids can go up to a temperature of 300 °C in normal thermic fluid heaters and in special units we can attain temperatures upto 340 °C.
Ross thermic fluid heaters are used in various chemical, petrochemical industries. The common uses are as below.
Thermic fluid heaters are used for high temperature frying of various foodstuffs like potato chips, pellets, Indian namkeens and banana chips.
Thermic fluid heaters are used for heating in stenters in textile industries
Thermal oil heatres are used for heating of tanks for pretreatment of metal components before painting.
Thermic fluid heaters are used for training in educational institutes for product training and demonstration in labs.
Thermic fluid heaters are used in corrugated box manufacturing industry.
Small thermic fluid heaters are used in R & D labs for a variety of research applications.
For Drying Applications / Metal Pre Treatment / Process Application.
The above clip shows design and working of the equipment. All items shown may not be in standard scope of supply.Please refer to the offer for specific scope of supply. We reserve the right to incorporate our latest design and material changes without any notice or obligation.
