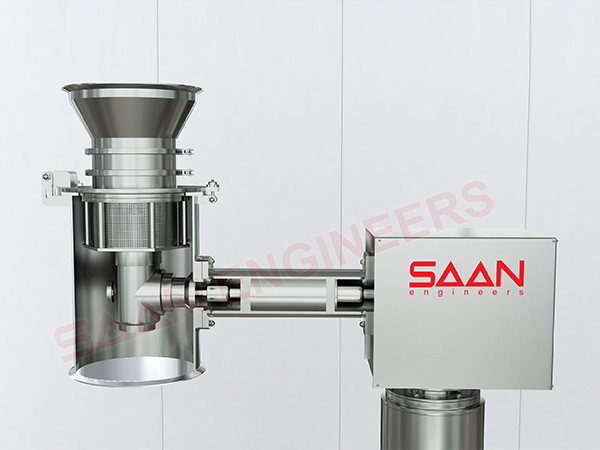

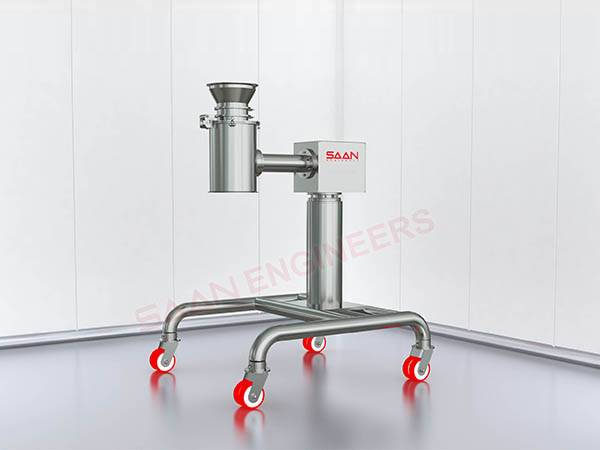

Rotary Sifter
Rotary Sifter
Description
The equipment has a cutting edge technology in high capacity sifting and delumping technology.
The Principle of Operation
- The indeed falls into the sifting chamber.
- Centrifugal acceleration ensures a continuous flow of material.
- Finished products are discharged 360˚ around the screen.
- Impurities are collected in the screening chamber which can be easily removed.
The sifting chamber rotates along with the drive at rpm ensuring discharge up to 2 tons per hour.
Salient Features
- It is extremely gentle on product as there is low heat generation during the entire process.
- Noise level below 95db is easily achieved due to the advance drive systems.
- Almost the entire product is sieved and in case there are lumps, the baffle breaks the same and it is finally sieved.
- The equipment is extremely compact in design. Also the equipment is made customizable i.e.
- The cantilever length of the arm can be increased or decreased.
- The discharge height of the sieving chamber can be made adjustable.
- The admit distance between the support legs can be widened or decreased depending upon the vessel into which the discharge takes place.

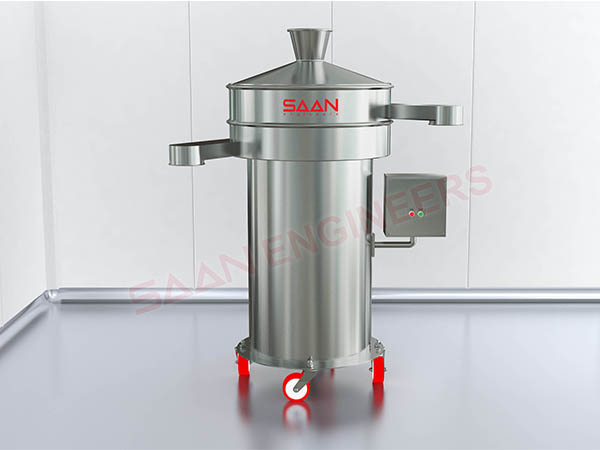

Vibro Sifter
Working Principle
The top weight on the motor shaft rotates in a plane close to the center of the mass of assembly. Rotation of the top eccentric weights creates vibration on the horizontal plane which causes material to move across the screen cloth to periphery increasing the horizontal throw, causing oversize material to discharge at a faster rate.
The bottom eccentric weight rotates below the center of mass creating tilt on the screen giving vibration in verticals and tangential plane. Increasing the verticals component of motion, this promotes turnover of material on the screen surface helping maximum quantity of undersize material to pass through the screen. Rugged springs placed over the circular motor base amplifies the vibration.
Salient Features
- Double Decker arrangement can be provided
- Easy dismantling and cleaning
- Reputed make vibratory motor
