Clamshell Grab Buckets


We bring in for our clients wide range of Clamshell grab buckets that is widely used for managing limestone, iron scrap, sugarcane, bulk cargos and also for wooden logs and dredging purpose. Further, these buckets are fabricated from quality raw material that make them highly durable and long lasting. Available in different specifications, our range can also be modified as per the specifications detailed by the clients.

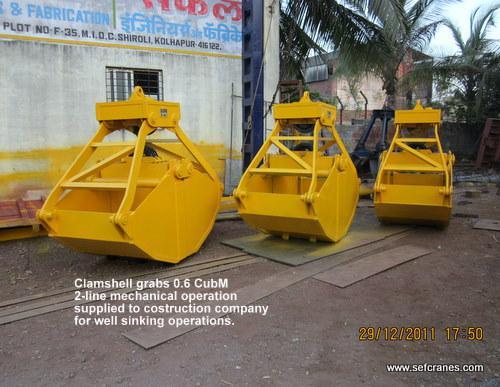

Clamshell Grab Buckets for Mucking

0. 6 m3 clam-shell grabs (3 nos) shown here are 2-line operation mechanical type. These will be used for foundation well sinking. These have been supplied to an infrastructure company for their delhi project.


Rehandling Clamshell Buckets

We are offeringRehandling Clamshell Buckets. This is 6 cub-m capacity low weight (less than 5 t), 4-wire operation all mechanical grab used for loose bulk cargo. Our clamshell is well acknowledged for its creative designs that suit the requirement of customers. These are widely used for many industrial purpose of transferring products from one place to other.

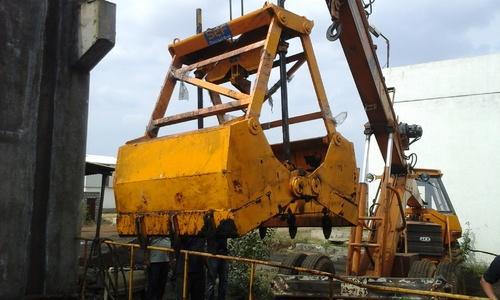

Clamshell Grab Bucket

We are offrering Clamshell Grab Bucket. Shown alongside is 2 cub-m double line operated mechanically. This has been supplied to a renowned construction company for foundation well mucking.

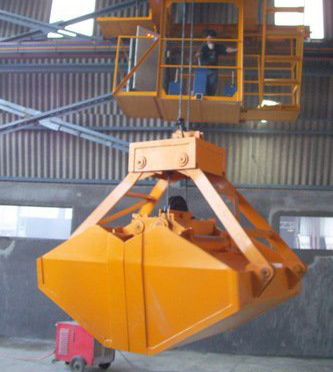

Mechanical Clamshell Grab Bucket

Mechanical Clamshell Grab shown is 1 cubm capacity. This is used on grabbing eot crane (also our own product).This grab is 2-wire operation, with small tooth points. Bucket is used to handle scrap batteries for feeding on to battery crusher.

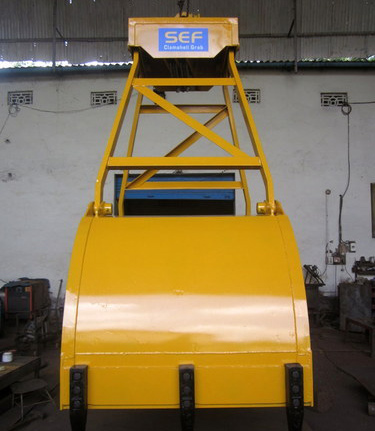

Clamshell Grab Bucket

Grab bucket shown here is having 2 CubM capacity and is a typical dredging clamshell grab bucket. Other specifications are as below.

  • This is 2 rope operation grab.
  • Made out of heavy steel plates confirming to IS 2062.
  • Wire rope pullies are in Cast steel as per IS 1030. Pulley diameter to suit 26 mm wire rope.
  • Cutting teeth (5 Nos) are in Cr-Mn steel as per IS 276. These are heat treated and fixed to grab with high tensile bolts.
  • Bucket is having Epoxy paint (2 coats of epoxy primer and 2 coats of paint. Color shed can be to any RAL color to suit customer requirement.
  • Grab empty weight is 3000 Kg (+/- 5 %)

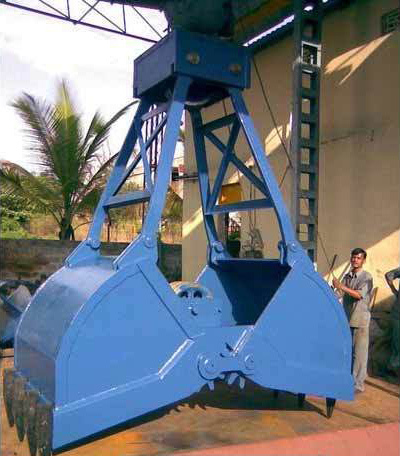

Rehandling Clamshell Grab Bucket

Clamshell grab bucket shown alonside is rehandling bucket. Specifications are as below.

  • Capacity 3 CubM
  • Type: 4 rope operation, 2 Nos closing & 2 Nos holding ropes.
  • Empty bucket weight 3500 Kg
  • Material handled carbon from 4 mm to 80 mm
  • Bucket materials: Legs, bucket plates IS 2062
  • Bucket materials:Wire rope pullies Cast steel with sealed bearings
  • Bucket materials:Shafts & pins IS 1570 (Eq EN 9)
  • Bucket materials: Wear plates eq to IS 276 Cr steel, fixed to grab bottom with CSK HT bolts.
  • Wire rope size 14 mm,Pully grove PCD 280mm

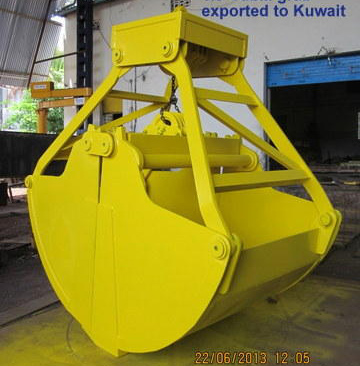

Clamshell Grab Bucket

Grab bucket shown here has been exported to Kuwait for foundtion well excavation.

Specifications are :

  • Capacity 1.5 M3
  • Operation:- Two rope mechanical, wire rope size 20 mm dia.
  • Tooth points :- 7 Nos, in Cr-Mn steel to IS 276
  • Bucket material MS plates, IS 2062-2011 (E 350 Grade)
  • All pins & axles : EN 24, hardened & ground
  • Paint: Epoxy

Touch Down Grab (Single Rope Operation)

Touch Down Grab - It operated with Single Rope Drum.

Typical arae for use - In steel mills for removal of Mill Scale from scale pits, In bridge construction for removal of loose mud/sand/soil from well.

Can be used with any single drum operated crane such as Mobile cranes, Single Girder EOT Cranes, Double Grider EOT Cranes.

This grab does not require any electricals or hydraulic systems for its use with a crane. Pure Mechanical operation. Made out of Steel compling to IS2062 Or any hi-grade steel as per customer's specifications.
