Construction Instruments
We offer a wide range of Construction Instruments that is fabricated using premium quality raw material and advance technology. Our wide array is used by construction companies for various construction processes. Further, our Construction Instruments are used in construction and maintenance operations. Lightness and compactness, and superior environmental performance with respect to vibration and shock are its special features.

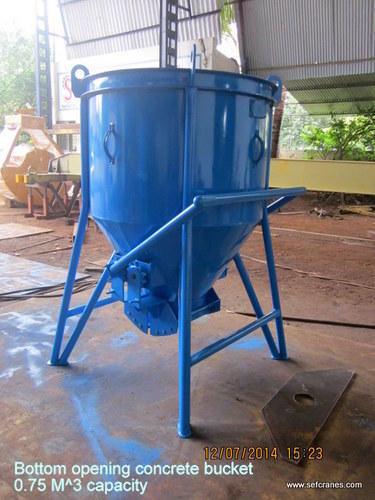

Concrete Bucket
Concret Bucket shown here has following specifications.
- Capacity 0.75 M3
- Operation: Manual, Gate opens by Hand lever. Both gates have gear sectors attachec, at hinge point.
- Bucket self weight is limited to bet 200 to 250 Kg.
- Construction :
- Made out of quality MS sheet (4 mm thick)
- Support structure is made of NB 50 MS pipe (M class)
- Painting: Epoxy primer 1 coat & epoxy paint 2 coats
Round Shuttering
Our Round Shuttering is available in size of 900 mm dia. X 2400 mm long material used: made from 10 x 50 mm ms flat & 2. 5 mm ms sheet. They are used in bridge pier columns.
Cutting Edge for Bridge Pier
We are offering Cutting Edge For Bridge Pier. This cutting edge is made up of ms angle 75 x 6 welded back to back & bent to obtain the required shape. Vertical flat is 20 mm thick x 300 mm wide bent to shape and welded to angle to form strong cutting edge for bridge foundation wells.

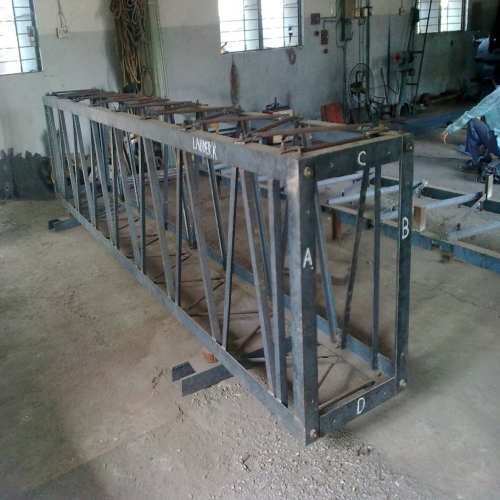

Formwork Support Columns
Column shown here is 600 mm x 900 mm x 4800 mm long. This column gets folded as ladders & bracings. Completed column weighs about 300 kg. As this is folding type column no of columns per truck load is more, which saves on transport cost. swl of column is 40 tons. Other Information : Packaging Details: Packed loose,in dismantled condition.
