EOT Cranes
We are engaged in offering a broad range of EOT Cranes, which is highly appreciated for low maintenance cost and longer service life. Due to its quality features, it finds its application in the areas like railway workshops, boat manufacturing and glass handling for lifting structure steels in construction sites. Available in various specifications, these EOT Cranes can also be custom made as per the clients specific requirements.

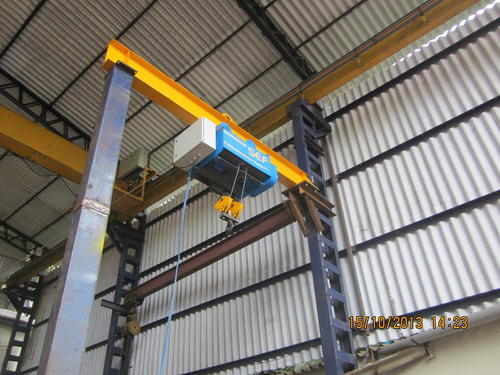

Single Beam EOT Crane
Single girder EOT crane shown here has specifications as below :
- Class: IS 3177, M5
- SWL 3 Ton
- HOL (Height of lift) 5.7 M
- Span 9 M
- Travel 20 M
- Hoist:- Wire rope hoist made by SAFAL-Model SEF
- Please click on tab "additional detailed information" to get hoist specifications., alongside.

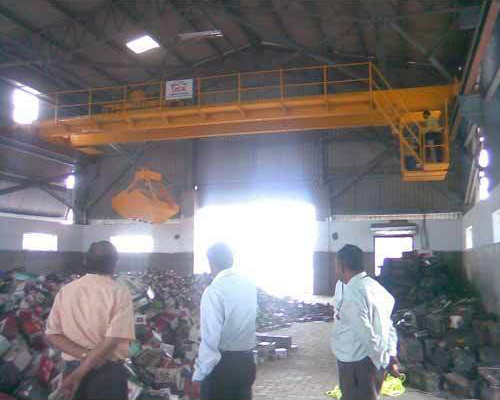

Double Girder EOT Grabbing Crane
We offer Double Girder EOT Grabbing Crane that are used for handling scrap batteries. This has been supplied to renowned battery manufacturer in India, for their lead recovery plant near pune (India) grab shown here is a product developed in-house. specifications :
- swl 4 t
- lift 6 m
- span 13.75 m
- grab bucket 1 m3
.jpg)

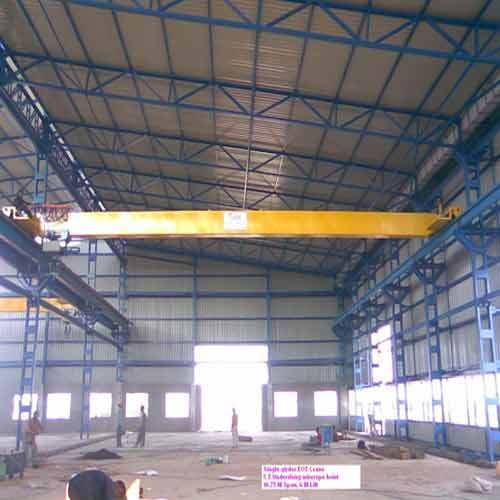

Single Girder EOT Crane (5 Ton)
We are offering Single Girder EOT Crane (5 Ton) to customer specifications. Shown here is single girder, underslung hoist, with swl - 5 ton, span - 16. 75 m, lift- 5 m,long travel - 34 m. This crane has been supplied to MNC and is working in their western Maharashtra (India) unit.

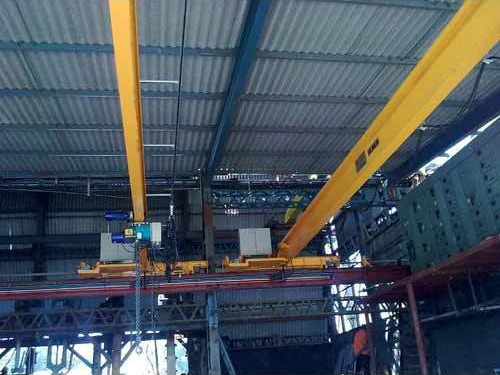

Double Beam EOT Cranes
We are offering Single Girder EOT Crane are working on same gantry girder with anti collission device for additional protection. These cranes have been supplied to leading battery manufacturer for their lead recovery plant near pune, maharashtra. Specification :
- Crane no 1:- swl 2 t, lift 4 m, span 10. 725 m, under-slung chain hoist
- Crane no 2:- swl 3 t, lift 4 m, span 10. 725 m, under-slung chain hoist

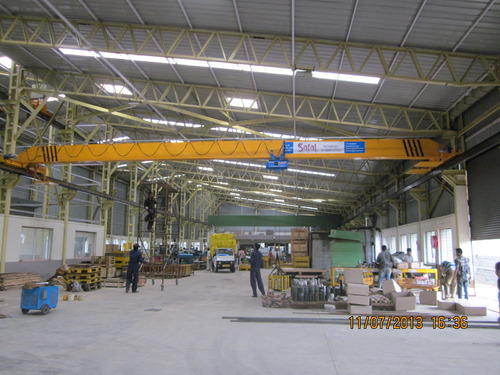

Single Girder EOT Cranes
SGEOT crane shown here is used in steel foundry for hot metal ladle handling.
| SWL | 1 Ton |
| SPAN | 17.2 M |
| Lift | 5.7 M |
| Crane Classification | IS 3177- M6 |

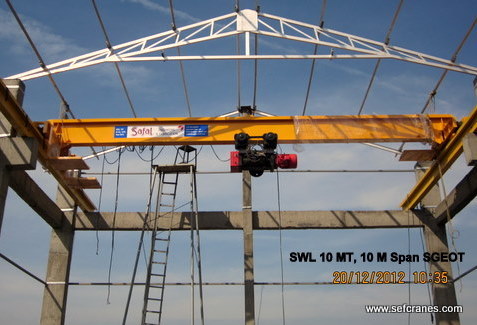

Single Girder EOT Crane
The crane shown here is 10 T capacity SGEOT crane.
| SWL | 10 T |
| Hoist | Wire rope hoist 'torque' by Electromech |
| Span | 10 M |
| HOL | 6 M |
| Hoist speed | 3.5 M/min |
| CT speed | 17 M/min |
| LT speed | 17 M/min |

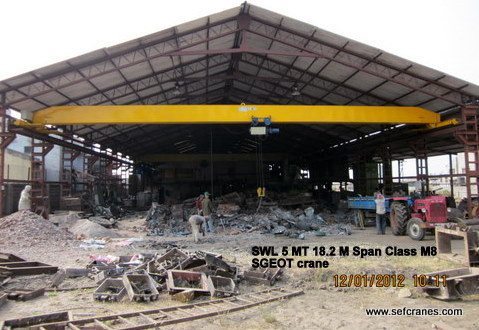

Single Girder Crane
The Single Girder EOT Cranes shown here is working in Foundry at Kolhapur. This is class IV crane (as per IS 3177-1999 Class M 8). Other specifications are :-
| SWL | 5 T |
| Span | 18.2 M (60 feet) |
| HOL | 6 M |
| Hoist speed | 4 M/min |
| CT speed | 10 M/min |
| LT speed | 19 M/min. |
EOT Cranes
We are offering single girder eot crane are working on same gantry girder with anti collission device for additional protection.
Cranes

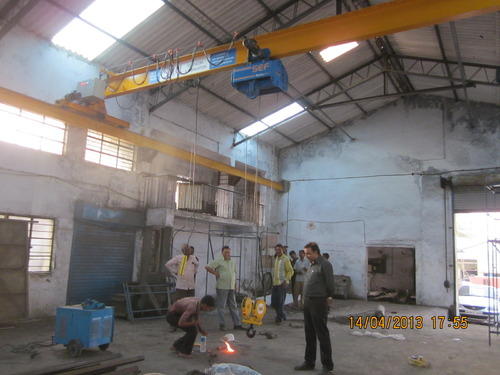

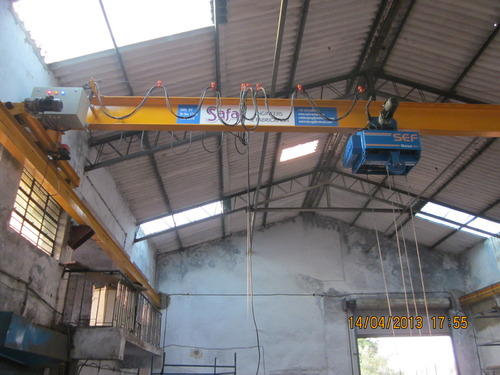

Single Girder EOT Crane (5 Ton). The crane shown here is 5 T capacity SGEOT crane. Specifications are :-
| SWL | 5 T |
| Hoist | Wire rope hoist 'SEF' by Safal Engineers, our own product |
| Span | 10 M |
| HOL | 6 M |
| Hoist speed | 2.9 M/min |
| CT speed | 12 M/min |
| LT speed | 17 M/min |
Wire Rope Hoists
Wire rope hoist shown here is developed in house with best specifications.These hoists are made as per relevant IS codes and codal provisions are delegently followed. All hoists except SWL 500 Kg are true lift with 4/2 reeving. This adds additional safety to hoist and load lifted does not sway / move sideways.Gearbox is with all helical gears duly hardened and splash lubricated.
All hoists have total length of wire rope wound in one layer. Steel cored wire rope is used and is reeved on grooved drum. This reduces rope wear as successive winding do not rub against each other. Load hooks are forged and srictly tested as per IS codes. Each hoist is tested in house as per IS codes. We want our customers to witness this test.
