Jib Cranes


Jib cranes are an alternative to overhead cranes, where limitation due to space and supporting structure for overhead cranes. Thes are used for material handling. Capacity range offered by us is :

  • SWL max upto 5 MT
  • Maximum Jib arm radius upto 8 M. Here limitation is on Safe working load. In this case with 8 M Jib arm, we can offer max 3 T as SWL.
  • Cranes offered are as below :
    • Free standing column jib crane rotation from 90 deg to 360 deg.
    • Wall / column mounted Jib cranes, rotation limited to 180 deg.

Jib Crane, Free Standing Column

jib crane alongside is supplied to Bharat Benz dealer in Maharashtra. Crane Specifications are:-

  • SWL 2 MT
  • Jib Radius from column center 7 M
  • 8 M high Free standing column made as Sq box out of IS 2062 plates to cater for strength required for such heavy load.
  • Max HOL (Height of lift) 6 M
  • Hoist used is 'torqk' brand from house of ELECTROMECH, Pune.
  • Hoist is wire rope hoist with motorized CT. All hoist motions are controlled through pendant push buttons. Control panel is with hoist. Panel is having rotary limit switch for hoisting motion & lever type limit switch for CT motion.
  • Jib can rotate upto 2600. This rotation is manual driven.
  • Since all bearings for King Post are antifriction ball & thrust bearings strain on operator is minimum for moving crane through 2600

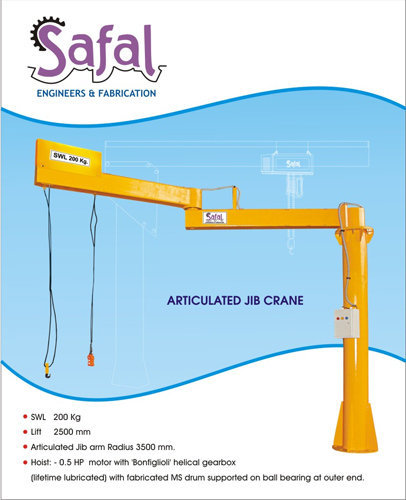

Articulating Jib Crane

Safal Engineers offers Articulating Jib Crane. Specifications :-

  • SWL 200 Kgs
  • Jib Arm 3500 mm (Articulation from 1800 mm from centre)
  • HOL 2500 mm
  • Operation through pendant
  • Hoist with bonfiglioli gearbox with 0.5 HP LHP brake motor, drum supported on ball bearings.
  • Crane reach as shown in attached photograph is 3500 mm circle , full area.
  • You can lift material from anywhere in this circle without angular pull and place it anywhere within circle.
  • limit switch is optional extra.
  • IWRC wire rope is provided.

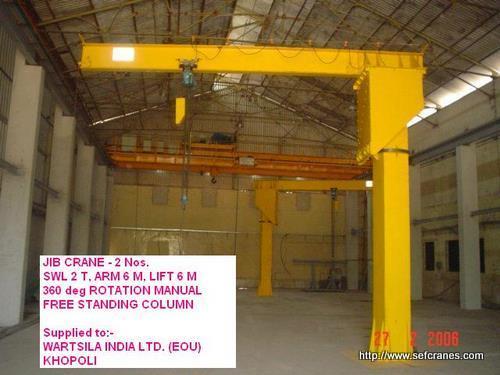

Jib Crane (360 Degree Rotation)

We are offering jib crane highly durable, precise and strong jib crane.

  • Specifications: swl 2 tons
  • Radius: 6 m, free standing 6 m column, swivel through 360o.
  • Operation: electric except swivel operation.

Articulated Jib Crane

Grab bucket shown here has been exported to Kuwait for foundtion well excavation. Specifications are :

  • Capacity 1.5 M3
  • Operation:- Two rope mechanical, wire rope size 20 mm dia.
  • Tooth points :- 7 Nos, in Cr-Mn steel to IS 276
  • Bucket material MS plates, IS 2062
  • All pins & axles : IS 1570, eq to EN 8
  • Paint: Epoxy

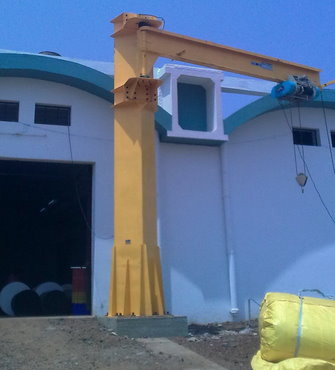

Pillar Mounted Jib Crane

Pillar Mounted Jib Crane shown alongside has following specifications:

  • free standing column
  • 3 t swl
  • 6 m jib radius
  • 2700 rotation, manual control
  • 7 m height of column
  • crane is mounted on concrete foundation.
