Lifting Cranes


We offer a gamut of Lifting Cranes that are fabricated by us using high end technology. These are ideally used in varied infrastructure projects that include for tunneling, in dam, bridges, aviation . Available in various specifications, these Lifting Cranes can also be custom made as per the clients specific requirements.


Material Lifting Cranes

We are offering single girder EOT crane are working on same gantry girder with anti collision device for additional protection. These cranes have been supplied to leading battery manufacturer for their lead recovery plant near pune, Maharashtra. Specification :

  • Crane no 1 :- swl 2 t, lift 4 m, span 10. 725 m, under-slung chain hoist
  • Crane no 2:- swl 3 t, lift 4 m, span 10. 725 m, under-slung chain hoist

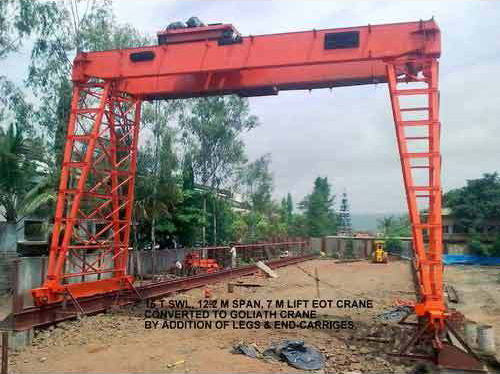

Goliath Crane

The photograph alongside shows goliath crane converted from an eot crane by adding legs, modified end-carriages with new improved drive unit. The specifications are :

  • Swl 15 t
  • Lift 7 m
  • Outdoor
  • Electric supply through protected shrouded bus
  • Bars

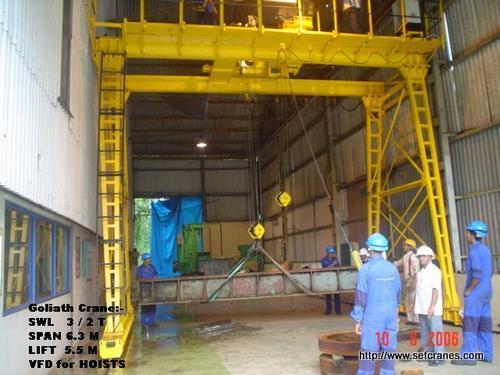

Industrial Goliath Crane

We are offering Goliath crane. This crane is supplied to major MNC's in India.

Specifications: SWL 3/2 T, span 6. 3 M, lift 5. 5 M, all electric pendant control and VFT control for hoist motors.


Single Girder Goliath Crane

Goliath crane shown alongside is used for handling pipes for cleansing prior to further process. Specifications are :

  • SWL 2 MT
  • Dual hoists 2 MT each
  • Hoist manufactured by Safel i.e. our own product. This is a wire rope hoist.
  • Span 9.3 M
  • HOL 6 M
  • Both hoists can be operated from one control or separately, independant of each other.
  • This is all electric operation crane.
  • Radio remote control plus Independant pendant is also provided.

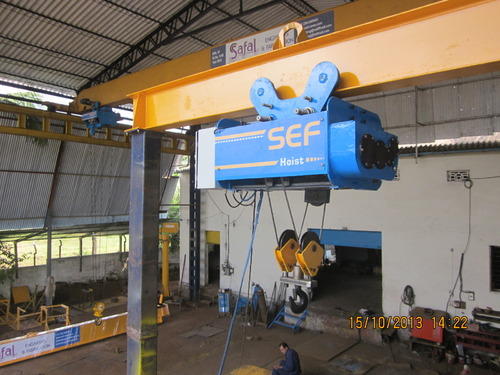

Electric Rope Hoist

Wire rope hoist shown here is developed in house with best specifications.These hoists are made as per relevant IS codes and codal provisions are delegently followed. All hoists except SWL 500 Kg are true lift with 4/2 reeving. This adds additional safety to hoist and load lifted does not sway / move sideways.Gearbox is with all helical gears duly hardened and splash lubricated.

All hoists have total length of wire rope wound in one layer. Steel cored wire rope is used and is reeved on grooved drum. This reduces rope wear as successive winding do not rub against each other. Load hooks are forged and srictly tested as per IS codes. Each hoist is tested in house as per IS codes. We want our customers to witness this test.
