Leading Manufacturer and Exporter of Material Handling Cranes such as Electric Wire Rope Hoists and Single Girder Goliath Crane from Kolhapur.

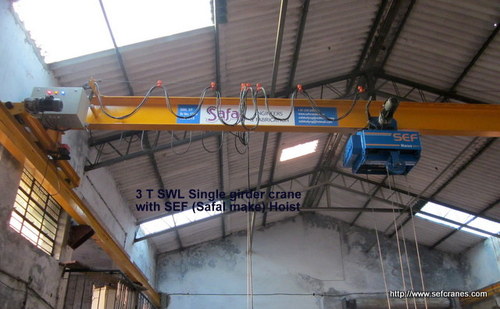

Electric Wire Rope Hoists
Wire rope hoist shown here is developed in house with best specifications.These hoists are made as per relevant IS codes and codal provisions are delegently followed. All hoists except SWL 500 Kg are true lift with 4/2 reeving. This adds additional safety to hoist and load lifted does not sway / move sideways.Gearbox is with all helical gears duly hardened and splash lubricated.
All hoists have total length of wire rope wound in one layer. Steel cored wire rope is used and is reeved on grooved drum. This reduces rope wear as successive winding do not rub against each other. Load hooks are forged and srictly tested as per IS codes. Each hoist is tested in house as per IS codes. We want our customers to witness this test.
Material Handling Cranes
The gantry shown here is used for welding pipes to form boiler coils. Specifications are as follows :
- SPAN 4 m
- Height below hoist girder 2. 2 m
- Crab ct movement is manual.
- Crab carries orbital welder
- Gantry is provided with festoon arrangement to carry welding cable, gas pipe line.
- Orbital welding torch is suspended from crab with the help of spring balancer to reduce fatigue on operator.
- lt mechanism is motorized.
- End carriage trolley carries welding set & control panel.
- Electric supply to crane for welding machine & it motors through shrouded bus bars.
Single Girder Goliath Crane
We offer Single girder goliath cranes. Crane shown here has following specifications :
- SWL 2 MT
- Span 9.3 M
- HOL 5 M
- This crane is provided with 2 Hoists of identical capacity of 2 MT
- Crane is all electric with radio remote control and also an independant pendant
