NEXT BACK PRODUCTS → Inductive Proximity Switches

Sai Tech Control offers you a wide range of high quality Inductive Proximity Switches. these are used in all areas of control & automation such as Machine Tools, Packaging, Injection Moulding, Automobile Industries, Process Industries, Textile Industries and other Automated Systems.

Operating Principle :

The LC oscillator circuit generates the electromagnetic field over the active face, energy is drawn from oscillator. resulting damping of the oscillator. This Change is detected by the electronic circuit to give output signal.

Advantages :
• Non Contact Operation
• Corrosion Resistance
• High Operating Frequency
• IP 67 Grade of Protection
• Bounce Free Operation
• Repeat accuracy ± 0.02 mm
• Vibration Resistance
• Long Life.

Enclosure :
Proximity Switches are available in Tubular shape made of BRASS , S.S., M.S. Other odd Shape Switches or as per customer requirement can be made available on request.

Operating Temperature :

Operating Temperature of Proximity Switches is O c to 55 c. 0 Temperature up to 100 c can be manufactured on request.

Protection :
AC Switches are protected against transients and surges. DC Switches are protected against Short Circuit and Reverse Polarity.

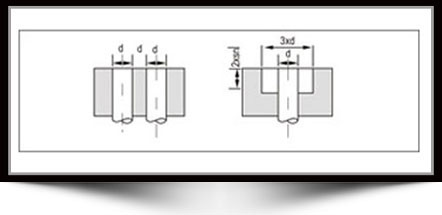

Mounting : : In case of Flush Mounting the sensing distance is limited to 0.8 times of the sensing distance for Non Flush Type.

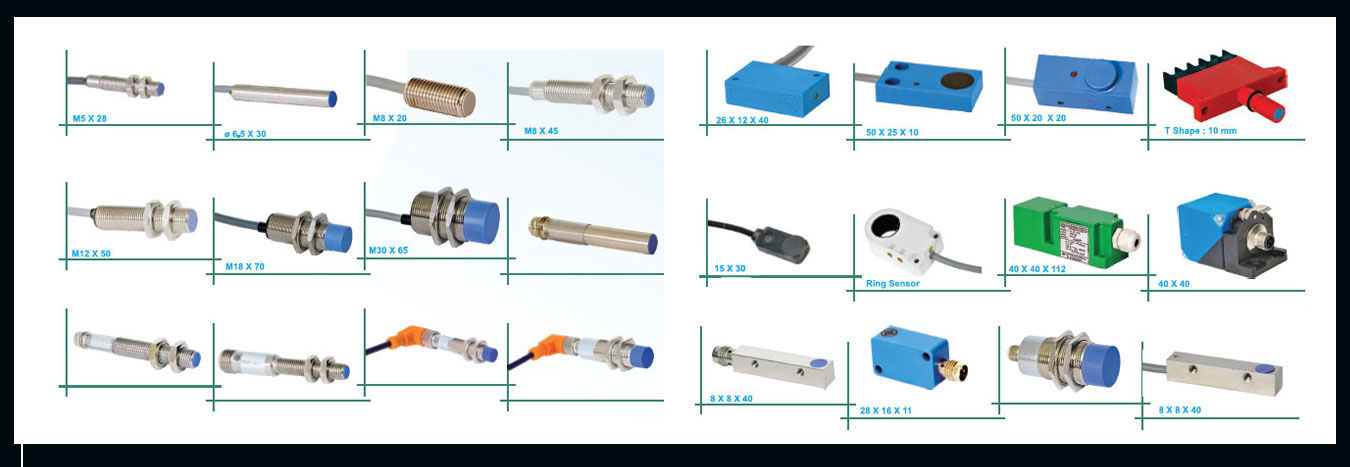

Tubular Switches : Enclosure Type

Miniature Sensors : Our miniature sensors with short circuit protection. M 8 x 30 mm & M 12 x 30 mm with LED Indication

Types of Inductive Proximity Switches :

AC Proximity Switches - Type PS 12 :

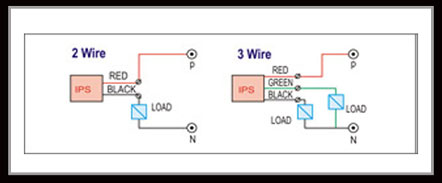

These are available in 2 wire and 3 wire as shown. These switches are to be connected in series with the load.
- Operating Voltage : 110VAC/240VAC/90-240VAC
- Logic : NO/ NC/CO
- Load : up to 500 MA



DC Proximity Switches - Type PS 13:

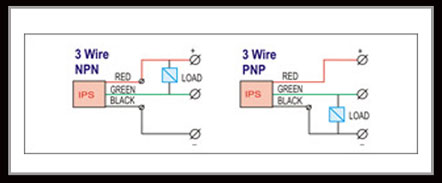

These are available in 3 wires as shown. Special models of 2 wires and 4 wires are available on request.
- Operating Voltage : 5V to 30V DC (up to 220V DC on request)
- Logic : NPN / PNP
- Load : up to 400 MA

Dimensional & Technical Specification :
Size
mm		 Sensing distance
in mm Flush Non Flush		 Load Current in ma
For AC For DC
Ø 6.5 1 - - 250
M8 1.5 2 - 250
M12 2.5 3.5 - 250
M18 5 7 250 250
M30 10 7 400 250
M36 15 18 400 250
M50 15 20 400 250
M80 30 35 - 400
17 x 17 x 36 7 - 250
20 x 20 x 38 7 - 250
26 x 12 x 40 3.5 - 250
40 x 40 x 112.5 13 20 400 400
