Our portfolio has expanded from air receivers & small pressure vessels to the entire product range in pressure vessels, Storage Tanks, Process Columns, Reactors & Heat Exchangers required by the petrochemical, fertilizer, power and process industries. We manufacture specialized equipment from various steels and metals in a range of dimensions and handling capacities.

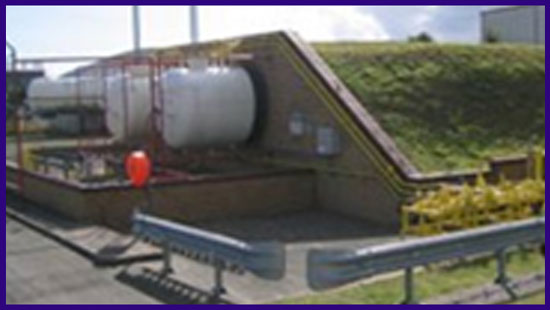

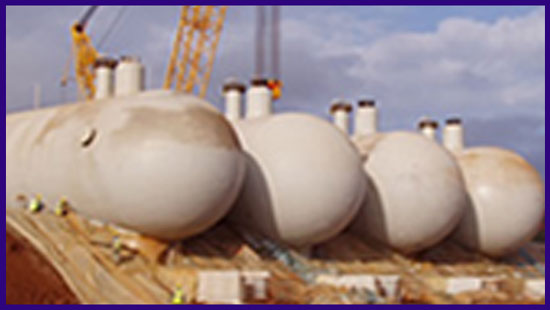

LPG MOUNDED BULLETS / PROPANE MOUNDED BULLETS / PROPYLENE MOUNDED BULLETS/ AMMONIA MOUNDED BULLETS:
Continuous efforts towards improvement of safety standards led to the design of these types of storage vessels. These are horizontal bullets installed for bulk storage of liquefied petroleum gas (LPG). Offering a safer method for storing highly inflammable LPG; mounded LPG bullets are large, buried, horizontal cylindrical steel tanks with dished ends of size ranging between 3.5 to 8.5 meters diameter and lengths of 35 to 90 meters.
LPG mounded bullets Volumes are from 500 M3 to 20000 M3 Total Storage, as well as Refrigerated mounded for propane storage. The Mounded Bullets are designed as per ASME Sec. VIII Div.1, ASME Sec. VIII Div.2 and BS 5500 codes. We have executed storage facility including Mechanical, Civil, Piping, Instrumentation and Electrical.
We undertake the Projects Execution on LSTK/ EPCC (Engineering, Procurement, Construction & Commissioning) basis.
The scope of EPCC Contracts include:
- Design and Detailed Engineering
- Fabrication, Testing, Procurement, Erection, of Piping and Mounded bullets.
- Safety measures like Fire Fighting etc.
- Supply and Installation of Cathodic Protection System.
- Ground Improvement & Civil works
- Electrical and Instrumentation work
Technical Specifications:
- Design Code : ASME, AD MERKBALTTER, PD 5500, CODAP 2000 AND OTHERS
- Design Pressure : 17.16 Bar
- Design Temperature : -20 Deg C To +55 Deg C
- Volume : 500 M3 to 20000 M3
We are manufacturer of LPG Mounded Bullets.
Total Project Commissioning for BULLETS :
- 6 x 1900 cum. LPG Mounded Storage Bullet.
- 3 x 1500 m3 LPG Storage Bullets
- 5 x 3000 cum. Mounded LPG Bullet.
- 6 x 1650 cum. LPG Mounded Bullets.
- 2 x 2000 cum.LPG Mounded Storage Bullet Tanks.
- 2 x 2500 cum. LPG BULLET
- 4 x 2000 cum LPG BULLETS Tanks.
