Our portfolio has expanded from air receivers & small pressure vessels to the entire product range in pressure vessels, Storage Tanks, Process Columns, Reactors & Heat Exchangers required by the petrochemical, fertilizer, power and process industries. We manufacture specialized equipment from various steels and metals in a range of dimensions and handling capacities.

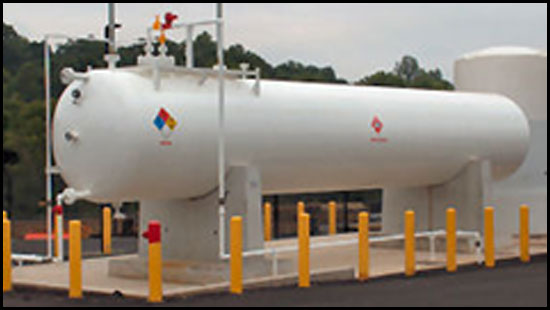

Propane is the most common form of liquefied petroleum gas (LPG) that can be used as a fuel in areas where no gas mains are installed. A byproduct of the oil refining process, it is compressed into a liquid for ease of storage and delivery. In a domestic storage tank, fuel vaporizes in the upper part of the vessel which can be tapped for use
as a cooking and heating gas. Its pressure is regulated down to a level compatible with the appliances it runs. In cold climates, the ambient temperature is sometimes too low for the propane to vaporize fast enough, in which case a heat source, known as a vaporizer must be used. In its natural form, Propane has no smell and an odorant is added before distribution, for safety reasons. The propane industry uses many different types and sizes of tanks, from 0.5M³ to 1000 M³ at the distributor, to a barbecue cylinder. Our propane tanks are built to 250# working pressure. Under normal circumstances, the vapor pressure at 37.78°C is 12.09 kg/cm². The unit comes with all safety features as per norms. The tanks are provided with all accessories like safety fittings, valves, pipelines etc.
Technical Specification:
- Design Pressure : 17.16 Bar to 23 Bar
- Design Temperature : - 40 Deg C to + 65 Deg C
- Design Code : ASME , AD MERKBALTTER , PD 5500 , CODAP 2000 AND OTHERS
- Volume : 0.5M3 to 1000M3
