Nebuliser Elements

PZT ELEMENT WITH BULLS-EYE ELECTRODE FOR NEBULISER APPLICATIONS

We are recognized as a successful manufacturers and suppliers of Nebulizer Element in the market at present. These are commonly used for the treatment of cystic fibrosis, asthma, COPD and other respiratory diseases and are used primarily in laboratory settings for elemental analysis. Nebulizers use oxygen, compressed air or ultrasonic power to break up medical solutions and suspensions into small aerosol droplets that can be directly inhaled from the mouthpiece of the device.

Features

  • Highly effective
  • Natural atomizer
  • Portable in nature

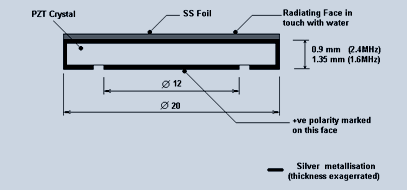

Specifications:

  • Dimensions in mm.
  • img Not to Scale
  • img SS foil approx. 0.05 mm thick bonded to the radiating face
  • img Thickness adjusted to achieve 1.6 or 2.4 MHz frequency
  • img Frequency Tolerance : +/- 5%
  • img Material : SP-4 (ºPZT4) or SP-8 (ºPZT8)
  • img Can be supplied in 25mm dia.
