LOAD CELL

We are instrumental in offering our clients a comprehensive range of Load Cell. Our range is manufactured using premium quality raw material and is known for its durability and high efficiency.

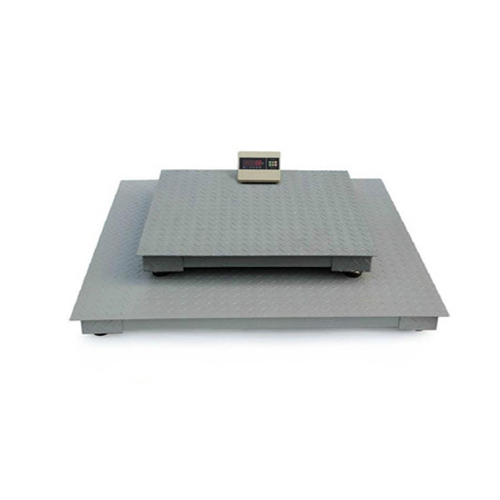

Multi Load Cell

UP 1T1H4	1000kg	100g	1200 x 1200mm
UP 2T2H4	2000kg	200g	1000 x 1000mm
UP 2T2D1H4	2000kg	200g	1200 x 1200mm
UP 2T2D2 H4	2000Kg	200g	1500 x 1500mm
UP 2T2D3H4	2000Kg	200g	1800 x 1800mm
UP 2T2D4H4	2000Kg	200g	2000 x 2000mm
UP 3T5H4	3000Kg	500g	1500 x 1500mm
UP 3T5D1H4	3000Kg	500g	1800 x 1800mm
UP 5T1D1H4	5000Kg	1kg	2000 x 2000mm

Load Cell

Capacities:
• 200, 300, 500, 700,
• 1000, 2000 gm

Application:
• Precision balances, electronic scale,
• by single load cell

1.	Rate Load Capacity	10,15,20,30,50 tons
2.	Input Resistance	800 +/- 30 W
3.	Output Resistance	700+/- 5 W
4.	Excitation Recommended	Max 15 Volts
5.	Rated Output	3.0 +/- 10% mv/v
6.	Non-Linearity	+/- 0.03% of applied load
7.	Hysterisis	+/- 0.03% of applied load
8.	Thermal Effect on Zero	0.05% of applied load/10 deg C
9.	Thermal Effect on Sensitivity	0.03% of applied load/10 deg C
10.	Insulation Resistance	> 1000 m W
11.	Creep at 20 Minutes	+/- 0.05 % of applied load
12.	Temperature Range Operative	0 deg. C to 50 deg. C
13.	Safe Load	150% of rated capacity
14.	Ultimate Load	300% rated capacity
15.	Protection Clause	IP 67
