Plastic Injection Moulding

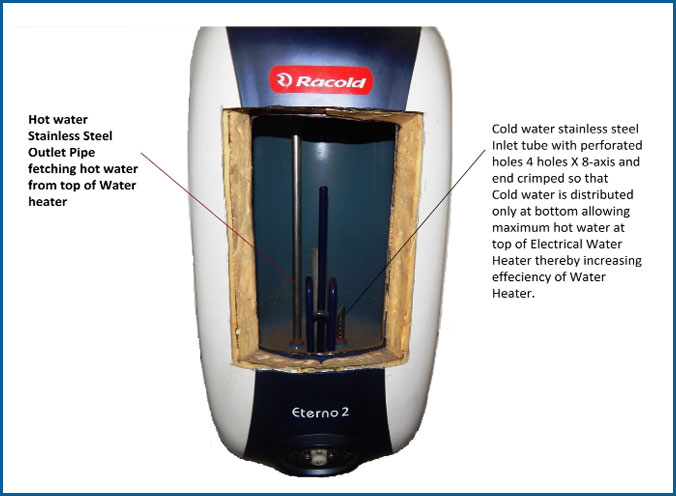

We are engaged in manufacturing of insert moulded Inner lnlet pipe and Inner Outlet pipe used in inner tank on Electric Water Heater made with high precision from stain-less steel (304 food grade) and temperature resistant engineering plastic. These pipes are also called as dip tubes and plays important role in electrical water .

heater. Our dip tube / inner inlet pipe is designed to direct the incoming cold water to the bottom of the heater. Also the inner outlet pipe is designed to fetch hot water from the top of the water heater. Without a dip tube the cold water coming into heater would just mix with some of the hot water at the top of the tank on its way to the outlet.

Vacuum forming process

1. The process involves heating heating a plastic a plastic sheet until soft. sheet until soft.
2. The softened sheet is draped over a mould.
3. A vacuum sucks the sheet into / onto sucks the sheet into / onto the mould. the mould.
4. The newly shaped sheet is taken off the mould and 4. The newly shaped sheet is taken off the mould and trimmed. trimmed.

Vacuum formed Components

Vacuum formed End Cap/Dome for Solar Water Heater Outer Tank made up of UV-Resistant ASA-ABS Plastic, this enhances the aesthetic of Solar Water Heater, it is light weight, dent proof and rust proof , good strength thereby increases life of solar water heater. Internal Dia Size Available : 434 mm, 475 mm, 612 mm and 795 mm.

Vacuum formed Hydroponic Trays extensively used by goat/ cattle farmers for soil less cultivation of fodder which en-hances growth of goats/sheeps and quality and quantity of milk. Multilayer farming done saving valuable space. Size Available : 3 feet x 2 feet, 2 feet x 1.5 feet

Housing Packing

End Cap/Dome assembled on Solar Water heater
