Water Treatment Systems
OSR Range of Water Treatment Systemss
From bench-top high purity lab water systems to industrial water reuse; from drinking water to wastewater treatment; Aquatic Solutions touches every component of water and wastewater treatment. We can work with you to implement the best solution for your need.
| Sr.no | Product | Product Description |
| 1. | OSR-MGF | Multigrade Sand Filter which is designed in FRP, MSRL, and SS to filter suspended solids. Aquatic solutions are experts in design and development levels of a Multigrade Sand Filter which has international premier quality with advantages of highest velocity, flow rates, Low maintainability and less filtrate. Application of multigrade filter such as potable water treatments, clarified water, sea water and chemical solutions filtration. We are avail with the different specifications of multigrade filters |
| 2. | OSR-ACF | Activated Carbon Filter which is designed in FRP,MSRL, SS to filter Chlorine, VOC, color, Odor. |

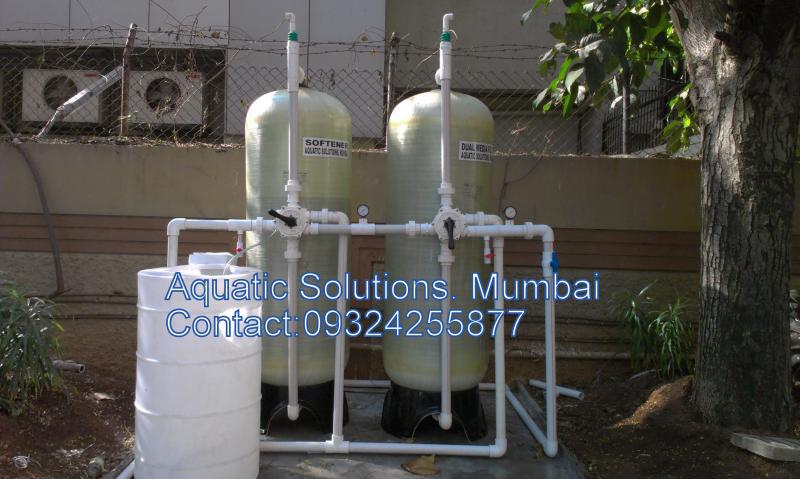

| 3. | OSR-SF | Softener which is designed in FRP, MSRL, and SS to filter carbonates that is Hardness from water to create soft water. |
| 4. | OSR-FE | Iron Removal Filter which is designed in FRP,MSRL, SS to filter Iron in Water with rechargeable resin or Brim media. |
| 5. | OSR-M | Zinc & Manganese Removal Filter which is designed in FRP, MSRL, and SS to filter Zinc & Manganese in Water with special resin. |
| 6. | OSR-CU | Is a Cation Unit which is designed in FRP, MSRL, and SS to filter cations & followed up by Anion Unit in DM System. |
| 7. | OSR-AU | Anion Unit which is designed in FRP, MSRL, SS to filter Anions & followed up by Mixed Bed Unit or EDI Unit in DM System. |
| 8. | OSR-MB | Mixed Bed Unit which is designed in FRP, MSRL, SS to filter both Cation & Anions & used as Polisher Unit after DM System & RO Plant. |
| 9. | OSR-UF | Ultrafiltration System for removal of suspended solids and SDI. It can be used as both pre-treatment & post-treatment to RO System. |
| 10. | OSR-RO | Reverse Osmosis System for removal of TDS/Conductivity to produce Pure Water for Process, Drinking and other application. |
| 11. | OSR-EDI | Electrodeionoization System which is designed to filter both Cation & Anions & used as Polisher Unit after DM System & RO Plant. |
| 12. | OSR-UV | Ultraviolet System in SS316 chamber & cabinet to remove & kill all types of micro-organism. |
| 13. | OSR-OZ | Ozone Generation System in SS316/MSPC chamber & cabinet to remove & kill all types of micro-organism |
Features
- Available over a wide range of Flow with Semi Automatic or Fully automatic (PLC) options available.
- Material of Construction: FRP Housing, SS Housing, SS Skid, MSEP Skid.
- Complete with all monitoring & controlling instruments mounted on a panel.
- Low energy consumption & High recovery with continuous operation.
- Installed & Commissioned by our well trained engineers.
Salient Features
- 100% Orbital welded (Triclover joints/manual welding use is minimal) with closed head orbital welding machines.
- Specially designed supports for clean room installations.
- Execution by Own/in-house highly experienced and well trained installation crew.
- SS 316 L Tubes and Fittings with Ra values <0.5 Microns with complete material traceability.
- Zero dead leg valves for sampling and for Points of use.
