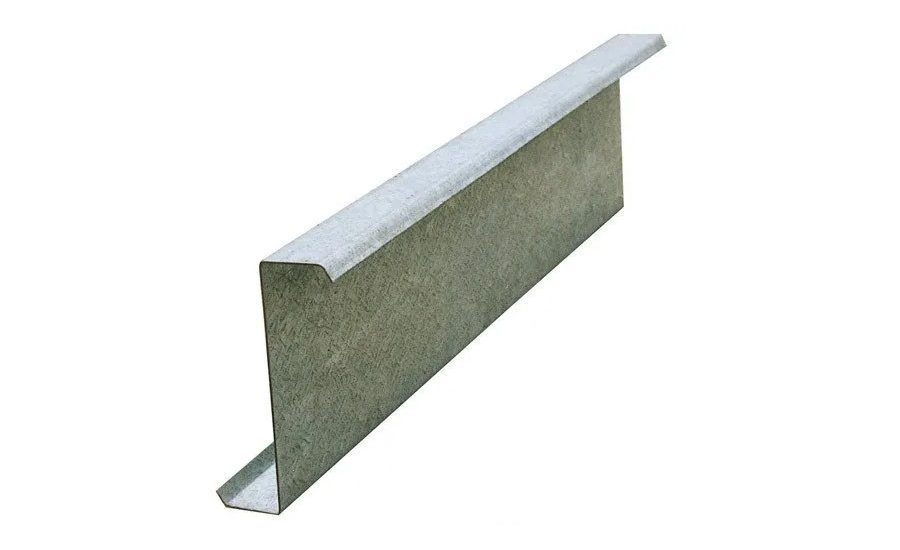

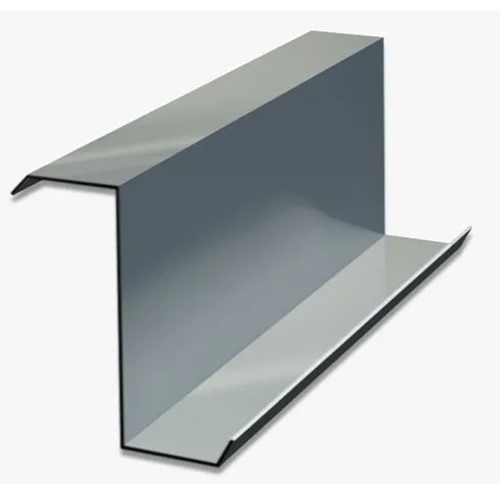

Z Purlins
Our company manufactures finest grade Z Purlins, which are used for supporting roof. These are built from cold-formed or rolled sheets that add to their flexibility. We find their usage in godowns, industrial sheds, workshops, railway stations etc. It saves around 50% of structural cost against hot rolled angles. These are accurate in designs and come with precise straightness.
Features :
- Perfect dimensions
- Superb design
- Ability to span length
- Comes with immense cost benefits
- Easy handling
- Quick erection
- Accurate straightness
- Highly durable
- Uniformity & versatility
Applications :
- Workshops
- Industrial sheds
- Garages
- Warehouses
- Carports
- Available Material: Red Oxide Primed, Galvanized, Stainless Steel
Product Details :
| Web | Flange | Flange | Lip | Thickness |
| 200 | 50 | 54 | 20 | 1.6 to 3mm |
| 160 | 70 | 60 | 20 | 1.6 to 3mm |
| 200 | 70 | 60 | 20 | 1.6 to 3mm |
| 220 | 80 | 70 | 20 | 1.6 to 3mm |
| 250 | 80 | 70 | 20 | 1.6 to 3mm |
| 300 | 80 | 70 | 20 | 1.6 to 3mm
|
