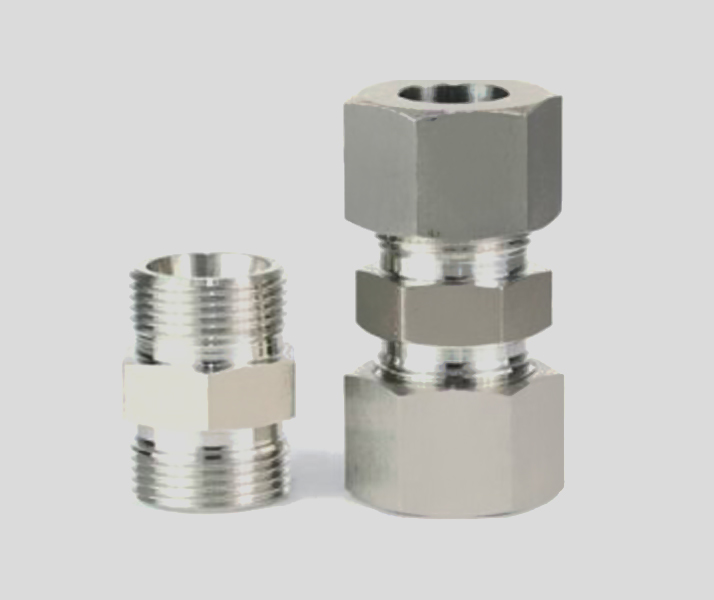

Coupling Body Adaptor

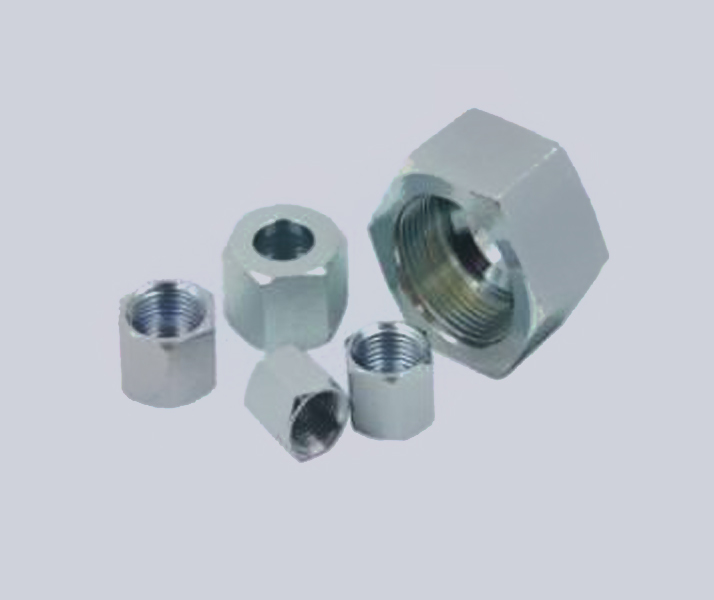

NUT AND FERRULE

1. THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series
2. Raw material grade – carbon steel /ss304/316/brass
3. Sealing angle – 24 degree

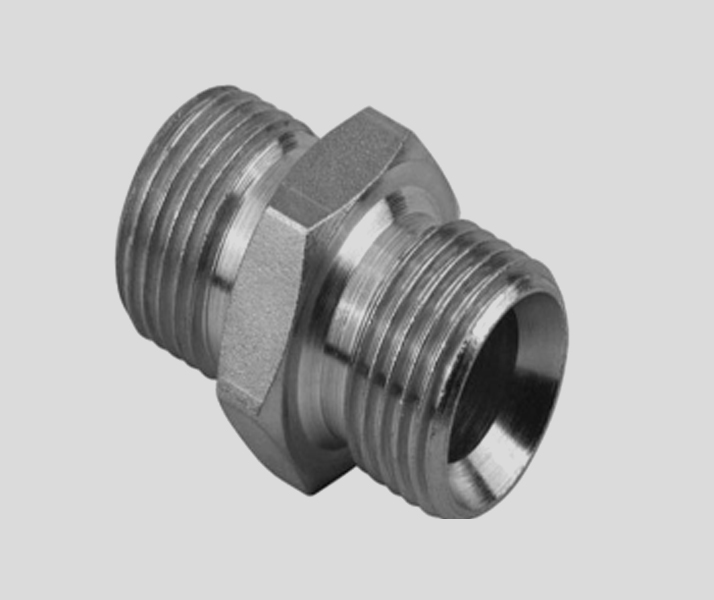

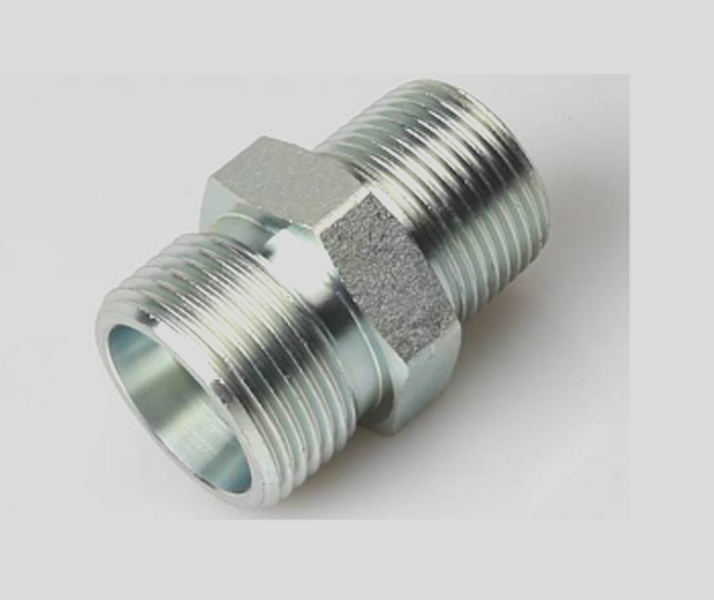

Coupling body pipe end fitting both sides

Raw material grade – carbon steel /ss304/316/brass

MM SERIES

1. THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series
2. Sealing angle – 24 degree

Coupling body pipe end fitting both sides

Raw material grade – carbon steel /ss304/316/brass

INCHES SERIES

THREAD SIZE –1/4” TO 2” Sealing angle – 60 degree

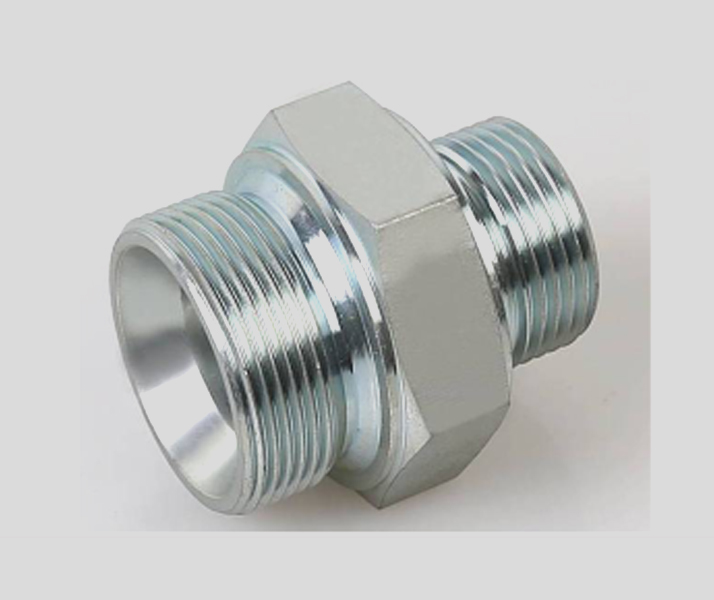

Coupling body parallel male

Raw material grade – carbon steel /ss304/316/brass

MM SERIES

1. THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series
2. Sealing angle – 24 degree

Coupling body parallel male

Raw material grade – carbon steel /ss304/316/brass

INCHES SERIES

1. THREAD SIZE –1/4” TO 2”
2. Sealing angle – 60 degree

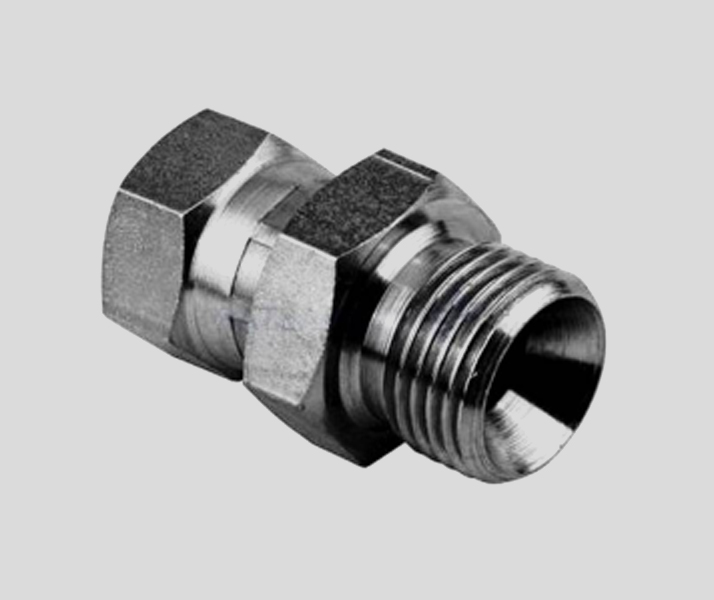

Coupling body parallel male swivel connector wire lock/nut crimped

Raw material grade – carbon steel /ss304/316/brass

MM SERIES

1. THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series
2. Sealing angle – 24 degree

Coupling body parallel male swivel connector wire lock/nut crimped

Raw material grade – carbon steel /ss304/316/brass

INCHES SERIES

1. THREAD SIZE –1/4” TO 2”
2. Sealing angle – 60 degree

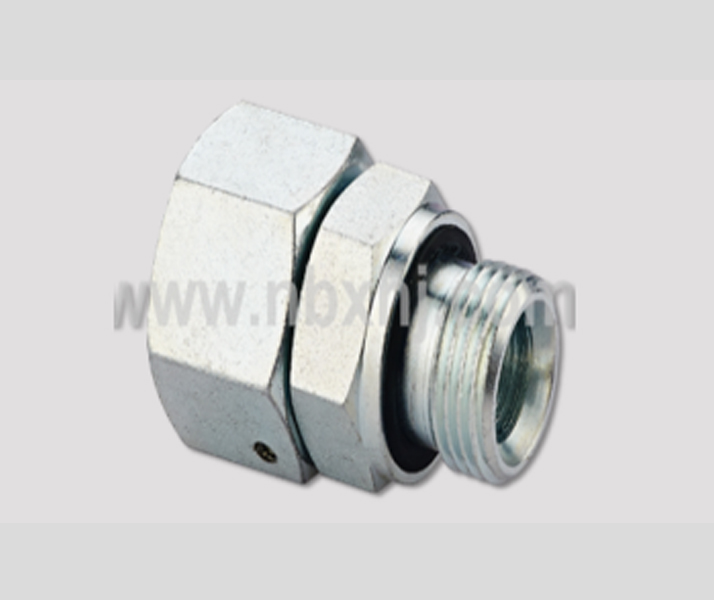

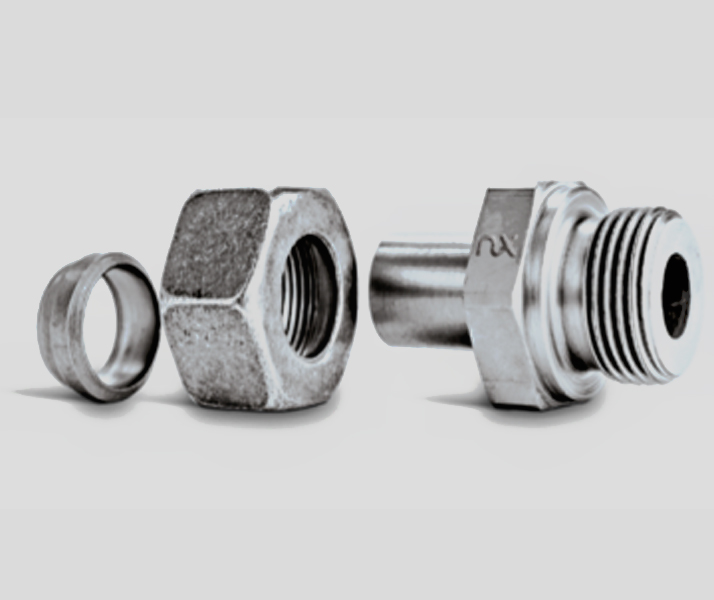

Coupling body parallel male swivel connector ferrule series(mm)

1. THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series
2. Raw material grade – carbon steel /ss304/316/brass
3. Sealing angle – 24 degree

Coupling body swivel connector both sides ferrule series(mm)

1. THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series
2. Raw material grade – carbon steel /ss304/316/brass
3. Sealing angle – 24 degree

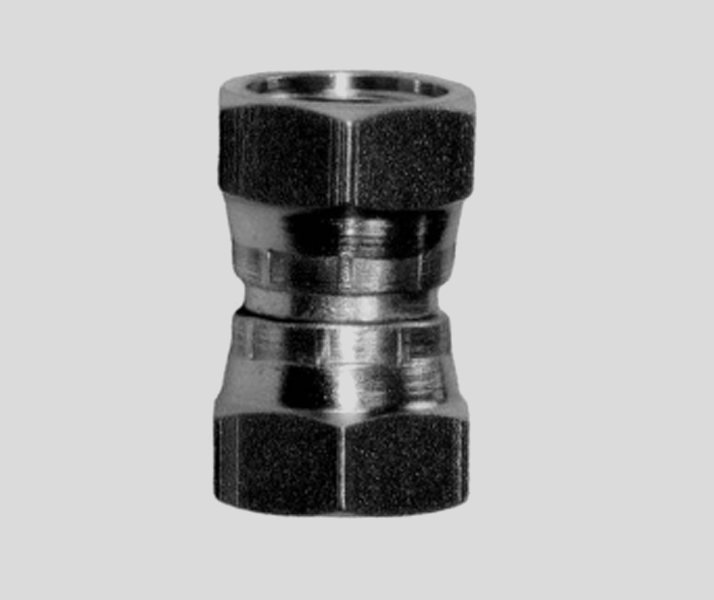

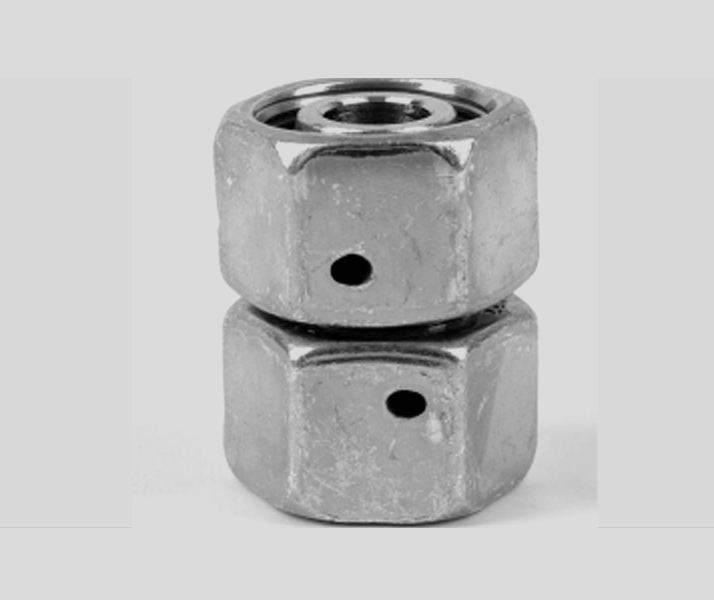

Swivel connector both sides crimped / wire lock series

Raw material grade – carbon steel /ss304/316/brass

MM SERIES

1. THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series
2. Sealing angle – 24 degree

Swivel connector both sides crimped / wire lock series

Raw material grade – carbon steel /ss304/316/brass

INCHES SERIES

1. THREAD SIZE –1/4” TO 2”
2. Sealing angle – 60 degree

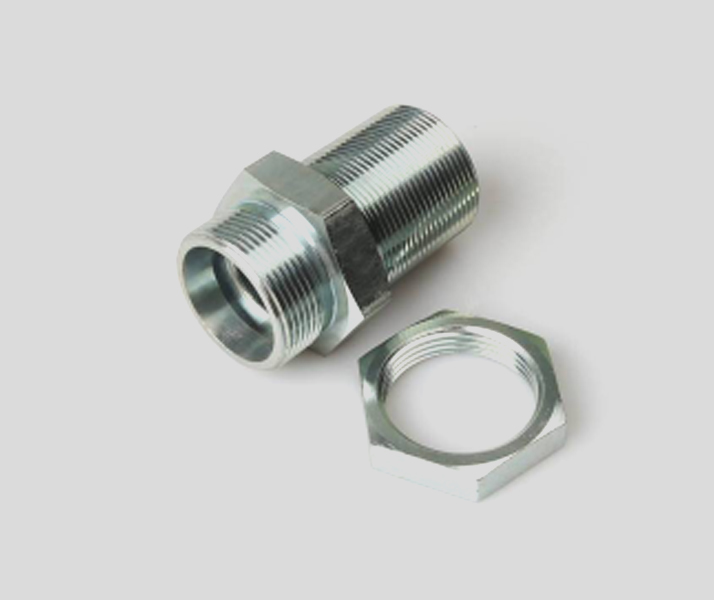

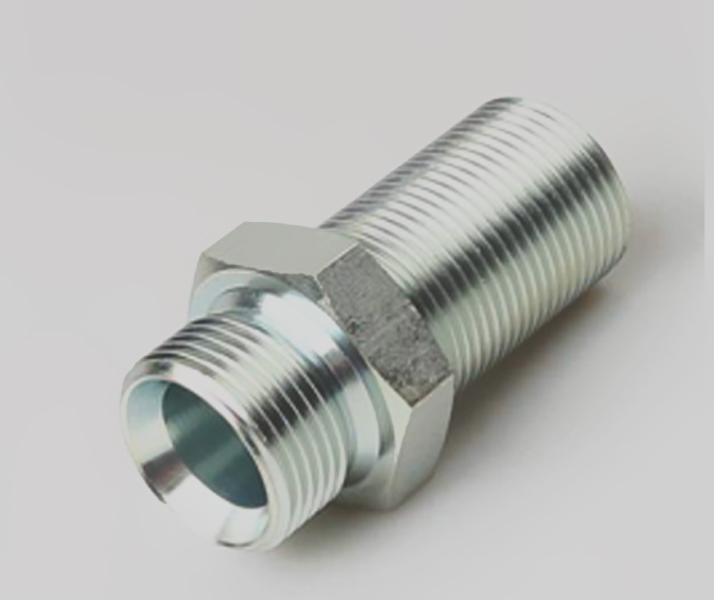

BULK HEAD STRAIGHT COUPLING

Raw material grade – carbon steel /ss304/316/brass

MM SERIES

1. THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series
2. Sealing angle – 24 degree

BULK HEAD STRAIGHT COUPLING

THREAD SIZE –M12 TO M52 for PIPE SIZE- 6mm TO 38 mm available in both heavy and light series

Raw material grade – carbon steel /ss304/316/brass

INCHES SERIES

1. THREAD SIZE –1/4” TO 2”
2. Sealing angle – 60 degree
