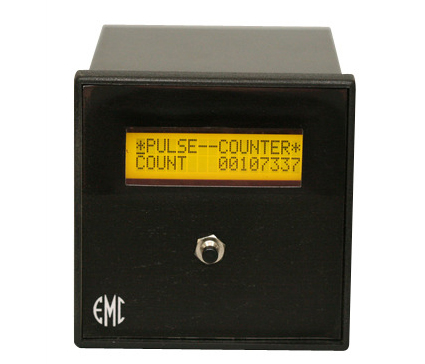

Specification of 8 Digit Counters (LCD Type):

• Display : 16 x 2 line LCD display.
• No. of digits : Maximum 8 Digits.
• Input Pulse :
  a) 230 VAC/110 VAC pulse through contactor or limit switch.
  Or
  b) 10-30 VDC Proximity switches three wires PNP-NO-type.
  Or
  c) Any 10-30 VDC pulse.
• Minimum pulse width of pulse : 1 mesc.
• Maximum Speed of count : 200 counts / Sec.
• Counting Method : Up counting
• Reset Methods :-
  Manual reset by key.
• Count Memory : count memory for Actual Count
• Count display : 8 digits.
• Terminations : All terminations for supply, pulse input etc. at back of unit.
• Power : 230 VAC +/- 10%, 50 Hz, Single Phase.
• Size : a) Overall : 96 x 96 x 120 mm
  b) Cut Out : 90 x 90 mm
