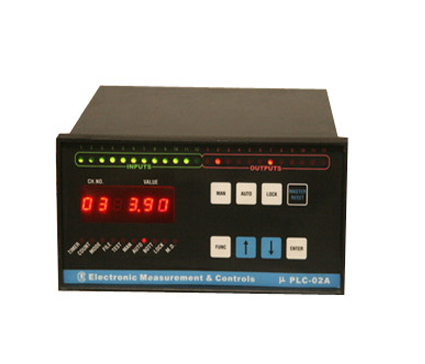

Programmable Logic Controller (Micro PLC)

Specification for Micro Programmable Logic Controller:

  • No. of Inputs : 12 Nos. Optically Isolated.
  • No. of Outputs : 12 Nos. Optically Isolated.
  • Type of Inputs : 24 V DC/50 mA such as from D.C. Proximity
  • Switch or Potential free contacts.
  • Type of Outputs : Open collector transistor rated at 30 V/3 A.
  • External fast Blow fuse of 2 A should be
  • Provided to protect the transistors.
  • Counters : 6 Digits 1 No.
  • Pulse to counters : Internal from operating sequence.M
  • Timers : 12 Nos. Standard. For options consult factory.
  • Timers Setting : By Front Keys.
  • Timers Range : 0 to 999.9 Sec.
  • Timer Mode : Down counting standard optional up counting.
  • Time Base : Quartz Crystal.
  • Timer Accuracy and Repeatability : ± .01%
  • Displays : 6 Nos. 7 Segments Red LED’s.
  • ( 2 for Ch: Nos. & 4 Datas )
  • Keys : 8 Key Std.


Program Facilities:

  • Testing of keys & displays.
  • Testing of Individual outputs.
  • Testing of Individual Inputs.
  • Programming of all parameters by Front keys.
  • System operation & fault finding Error codes.
  • Sequential display of timers.
  • Other facilities : a) Battery backup for data memory.
  • Power fluctuation Indication.
  • Watch log timer for CPU check.
  • Functional Led Indications.
  • Locking of Keys to prevent unauthorized access.
  • Input, Output Indication for fault finding.

Front panel components:

  • 6 Nos. 7 segment Red Led’s.
  • 10 functional Led’s.
  • 8 Keys.
  • Input Led’s - Green
  • Output Led’s - Red

Back side components:

  • 3 way terminal for L.N.E.. with move.
  • Fuse for above.
  • Heat sink with power Regulator.
  • 16 pin HCL connector for Outputs, 16 pin HCL connector for Inputs.
  • Operating Sequence : Stored program as per customers flow chart.
  • Operating Temperature : 0 - 55 °C.
  • Relative Humidity : 5% to 95% Rh. Non condensing.

Construction:

  • Plated MS inside chassis.
  • ABS molded cover.
  • Front Membrane Key pad.
  • Easy mounting & removals of cards.

Power required :

  • Isolated 230 V AC ± 10% 50 hz,
  • single phase Or 24 VDC ± 10% Please specify.

Size:

  • Overall 96 mm x (W) 192 mm x (D) 230 mm
  • Cutout 90 mm x 184 mm

Additional Information:

  • Item Code: MicroPLC
