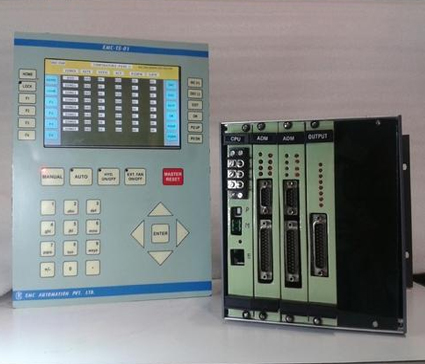

Multi Zone Hot Runner Temperature Controller

Product Description:

As one of the leading entity of this domain, we are engrossed in providing supreme quality Multi Zone Hot Runner Temperature Controller. This controller is developed using stainless steel materials and industry approved components. Our professionals opt for strict quality test taking humidity, pressure, moisture, and radiation in concern. The controller is tested and ensure for delivering exact results by through calibration. In order to provide accredited controller, our professionals have through industry knowledge and experience.

Digital Output:

  • 8 output per card.
  • All outputs are optically isolated of drive capacity 24 v/2 Amps.
  • Fuse protected.
  • Type - NPN/PNP.

Main Unit:

  • Cpu Card for control functions and communication.
  • ADM Card for temperature read and control.
  • 8 Zones per Card.
  • Max. up to 4 ADM Card possible.
  • Optional Output Card for other control function.
  • Size of Main Unit :- 168(L) x 177(H) x 201(D) in mm.
  • Controls implemented in RTOS.
  • Control Action:- Manual and Auto Tune PID Control.
  • Optional PC connectivity.
  • Supply voltage:- 24 VDC.
  • Operating temperature:- 0 to 500 c.
  • Rack mountable.

Temperature Card:

  • Type of Thermocouple:- J type or K type selectable.
  • Temperature range:- For J type ( 0 to 600 0c) , For K type ( 0 to 1200 0c).
  • Ambient compensation and linearization: - automatic.
  • 24-bit ADC (Resolution).
  • 8 zones per card.
  • Max. up to 4 Cards(32 Zones).
  • Page wise display of all parameters.
  • 8 Zones per page display.
  • Open circuit indication.
  • Sensor break indication & Protection.
  • Controls:- (i) Advance PID control with Auto tune facility.
  • (ii) Fully settable PID parameters/zone.

HMI (Keyboard & Display):

  • 7” TFT colour LCD display.
  • 800 X 480 pixels with touch screen.
  • Integrated Keyboard and Display (with touch screen) unit with 34 keys.
  • Parallel operation (Either Touch or Keyboard).
  • Keyboard dimension :- 220.0 x 283.0 mm.

Other Details:

  • Compact Modular design with plug in cards.
  • User friendly feather touch front panel for easy Programming.
  • Front panel colour LCD display.
  • Open and closed loop controls.
  • Integrated Temp. Control with adjustment.
  • Temp. Based interlock for screw safety.
  • Locking of set parameters through key.
  • Multilevel access.
  • High Immunity to disturbances.
  • Real Time Clock.
  • Diagnostic features for all parameters.
  • Log information.
  • Recipe storage.
