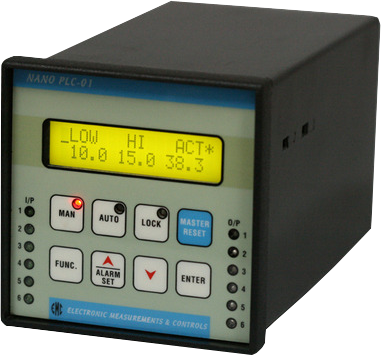

Nano Programmable Logic Controller (01)

Specification for Nano Programmable Logic Controller – 01

  • No. of Inputs – 6 Digital Input + 1 analog I/P
    Sensor Type :- PT100 N O – 10 V DC or 4 to 20 mA.
    a) Input Voltage – 24 VDC Std.
    b) Must on Voltage – 14 VDC
    c) Min. Input pulse width – 20msec.
  • No. of Timers - 16 max.
    a) Timers Range – 00.00 to 99.99 Sec.
    b) Timers Least Count – 10 Millisecond
    c) Timers Accuracy - ± .01%
    d) Time Base – Quartz Crystal
    e) Counting Mode of Timers – Down counting Type Std. Up counting on Request.
  • Counter – 1 total Count.
    a) Counter Range – 999999 Count Max.
    b) Counter Pulse – Internally from sequence software command.
  • No. of Outputs – 6 max.
    a) Output Voltage – 24VDC Std.
    b) Output Type – Transistor Open collector O/P.
    c) Output Current – 1 Amp-Max.
    d) Output Protection – Output short circuit protected for momentary short. (1 min Max.).
  • Sequence of Operation – As per customer provided sequence of operation.
  • Front
    a) Display – 2 line Alphanumeric character LCD Display to display All settings & operational parameters.
    b) Keys – 8 Keys Keyboard below LCD Display to enter all settable parameters & give Auto/MAN commands etc.
  • Back Two, 8 way terminals for Inputs, Outputs & power to PLC.
  • Power
    a) Power to unit ± 24 VDC/500 Ma ±10%
    b) Power for I/O operation± 24 VDC
  • Size
    a) Cutout – 90 x 90 mm
    b) Overall – 96 x 96 x 160mm.
