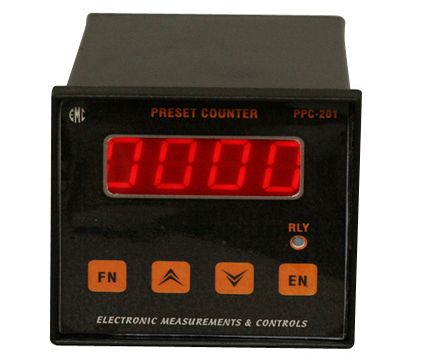

Specifications of Programmable Counters:

• No. of digits : Maximum 8 Digits.
• Display : 8, Seven Segment LED type display. (Four for Set & Four for Actual)
• Settings : All setting by keyboard.

Input Pulse:

• 230 VAC/110 VAC pulse through contactor or limit switch.
• 10-30V DC Proximity switches three wires PNP-NO-type.
• Any 10-30 VDC pulse.
• Maximum Speed of count : 200 counts / Sec.
• Minimum pulse width of pulse : 1 mesc.
• Counting Method : Up counting / down counting selectable by keyboard
• Control O/P. : 1 c/o relay contact rated at 3A/230V AC

Size:

• Overall : 48 x 48 x 95 mm
• Cut Out : 45 x 45 mm
• Options : a) External Reset - By 230 VAC Pulse. Extra Alarm Output - one N.O.C. relay contact for additional alarm O/P.

Reset Methods:

• Manual reset by key-always valid.
• Auto reset – If selected, Auto reset time programmable by keyboard.
• Power on reset, if selected count will reset to all zero at power on & count will start from zero.
• Power on reset & auto reset – if selected, combination of B & C.
• Count display : a) Set value : 4 digits.
• Actual value : 4 digits.
• Count Memory : count memory for
• Actual Count
• Total Count
• Keyboard : All setting & display page change through keyboards only.
• Terminations : All terminations for supply, relay, pulse input etc. at back of unit.
• Power : 230 VAC +/- 10%, 50 Hz, Single Phase.
