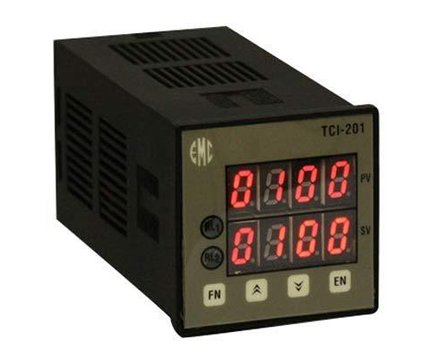

Specification of Temperature Controller:

• Input : K, S, R, E, J, N, Pt 100
• Measurement Range : K ( 0 - 1300°C)
• S ( 0 - 1700°C)
• R ( 0 - 1600°C)
• E ( 0 - 1000°C)
• J ( 0- 1200°C)
• N ( 0 - 1300°C)
• Pt 100 ( - 200 to + 800° )
• Temperature Accuracy : 0.3% ± 1°C
• Control Mode : ON-OFF control or Intelligence PID control with Auto tuning.
• Temperature display resolution : 1°C

Output Mode:

• Relay contact (Capacity : 250 VAC/ 2 A or 30 VDC / 2 A)
• SSR voltage output (12 VDC / 30 mA)
• Alarm Function : High Limit / Low Limit and deviation high / deviation low alarm.
• Power Supply : 100 ~ 240 V AC, - 15%, + 10%, 50 ~ 60 Hz.
• Ambient : Temperature of 10 ~ 60°C/14 140° F, humidity of 0 ~ 90 RH%.
• Reliability : Repairing and returning rate 0.8%.
• Power Consumption : 3 W.

Display:

• Upper display -- 7 + Four Seven Segment Red LED type display EO
• Display process value or code of a parameter.
• Lower display -- Four Seven Segment green LED display to display set
• Value, alarming code, or value of a parameter.
• Setting : Four keys for set up, accessing parameter table, confirming change,
• data shifting, activating auto tuning, data decrease and for data increase.
• Indicator lamps for OP1, AL1, AL2, AU1 and AU2 indicate to I/O action on corresponding modules.
• Size : 48 x 48 mm.
• Operating Temp. : -10 to +50°C.

Additional Information:

• Item Code: TCI-201
