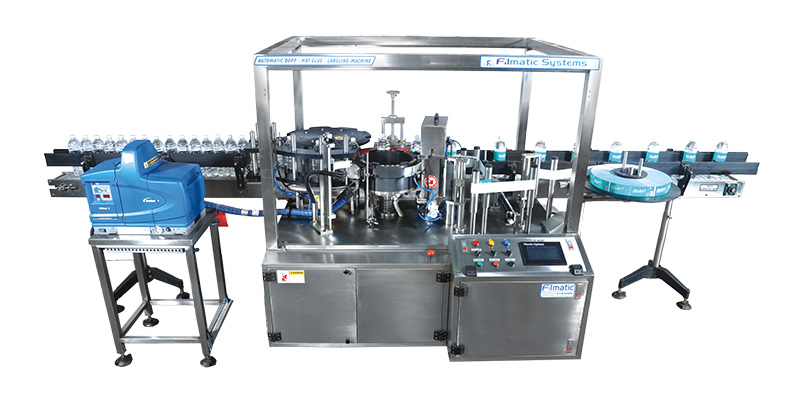

Automatic BOPP Labeling Machine
SPECIAL FEATURES
Durable and compact design, the machine frame is covered by stainless steel sheet, anti-vibration and noise absorbing construction.
Rotary machine design, the bottle turret by servo motor (Fuji japan make)
Control cabinet integrated in the machine housing
Hot melt dispensing contact type labeling system
Label cutting with eye mark as well as length in mm
Cutter is easy adjustment and replacement, cutting at any speed with precision
Vacuum drum is synchronized with platform rotation, driven by servo motor (fuji japan make)
Label web tracking for correcting its height and guarantee the consistent position
| SR. | Model no. | FS Bopp 90 |
|---|---|---|
| 1 | Output speed | Up to 5400 bph) |
| 2 | Bottle diameter | 50-95mm |
| 3 | Bottle height | 150-350mm |
| 4 | Size of label | h.50-100mm, l.160-295mm |
| 5 | Diameter of label roll(mm) | Iner:150mm, outer:500mm |
| 6 | Power supply | 220v, 50/60 Hz, 3 Phase |
| 7 | Air required | 6kg.8cfm |
| 8 | Power consumption | 10kw | 9 | Machine dimension(feet) | Fully Mechanical |
