Telescopic covers are generally produced from cold-rolled uncoated thin plates in thicknesses from 1 to 3 mm. Wherever guideways on machines have to be protected, we have a suitable solution. Our guideway protections systems boast a high degree of operational reliability, a long service life, and make use of innovative technical solutions in vertical & cross rail application.

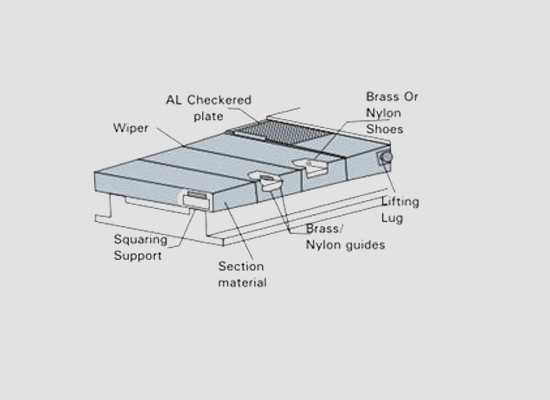

GUJAR INDUSTRIES Telescopic covers are sturdy, most durable & designed with easily replaceable highly anti wear polyurethane & synthetic rubber wipers, dampers, phospher bronze / engineering plastic guide shoes. Wiper systems in various designs for fast-running telescopic covers.
Machine tools come in a wide variety of designs. That is why a modern lathe needs another type of telescopic cover than, for example, a large bed-type milling machine.The following designs provide an overview of typical designs.
The U-shaped design is generally used in a horizontal, lying position for milling table guides. With this design the maximum width of the telescopic cover should be limited to 1.5 m.

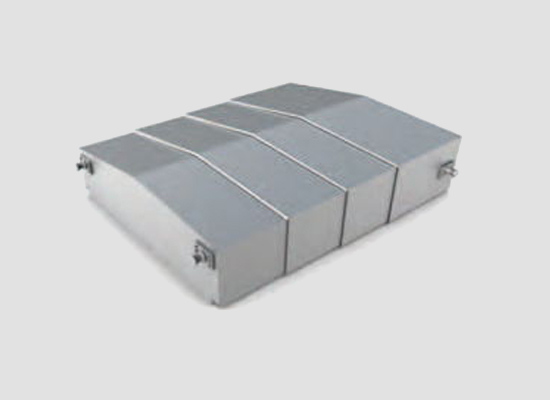

This design is always advisable when cooling lubricants are used. The inclined surface allows the water – and naturally also the chips – to run off more easily. With large covers (> 3 m width) for reasons of stability, etc. at least three roof angles should be provided.

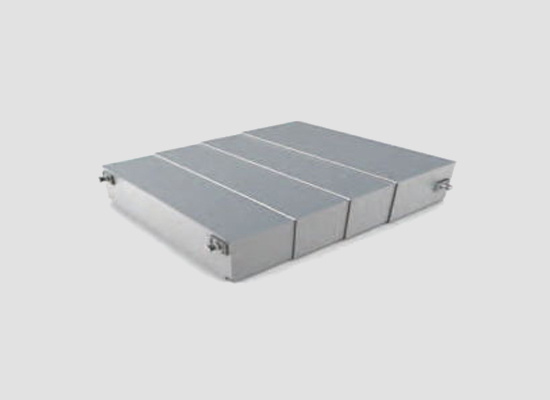

The flattened roof shape is a special construction method with two roof angles. Primarily for dry operation and widths > 3 m.
The shape with incline to one side has a special roof shape. Depending on the possible incline, covers can be constructed with widths of up to 1.5 m. This shape is likewise a recommended solution when large amounts of coolant are present. Depending on the angle of incline, this form also helps to discharge coolants / chips.

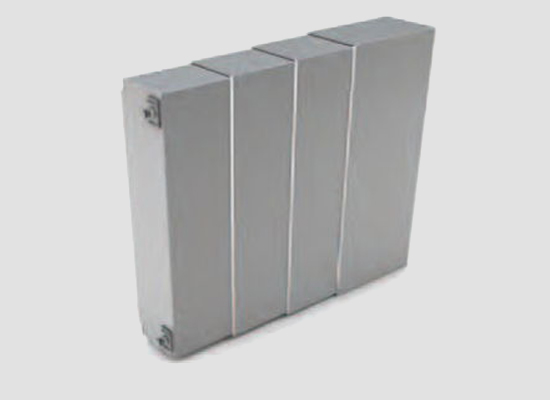

Standing covers are used on larger machine tools, mostly in the area above and below the cross beam. They can take many different shapes.

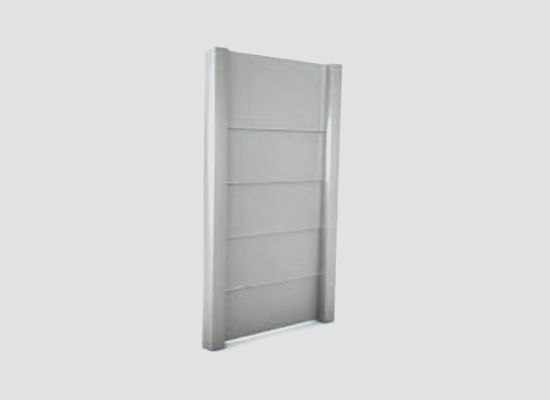

With blind telescopic covers, the cover plates move in separate guide rails, each of which is mounted on the machine at the sides. It is used exclusively in a vertical arrangement. The guide rails are generally made of brass.

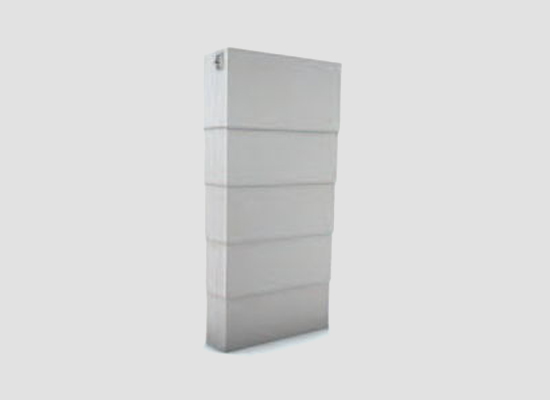

These covers are predominantly used on large gantry machine tools on a cross beam to the left and right of the support. The boxes are suspended vertically and protect the support guides from chips and cooling lubricants.
The shape with incline to one side has a special roof shape. Depending on the possible incline, covers can be constructed with widths of up to 1.5 m. This shape is likewise a recommended solution when large amounts of coolant are present. Depending on the angle of incline, this form also helps to discharge coolants / chips.
Tubular covers or covering shafts, spindles, etc. They can be made either with a round or a polygonal shape.

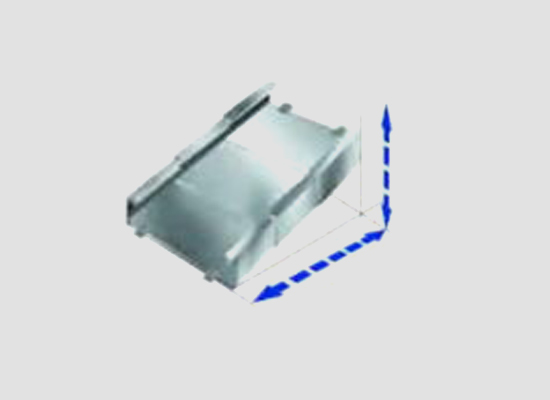

Dual-Axis covers are typically moving behind the tables and under the spindle when space is limited. This design is limited to 3 boxes unless guide rails are used, and must be flat design for this style of cover.

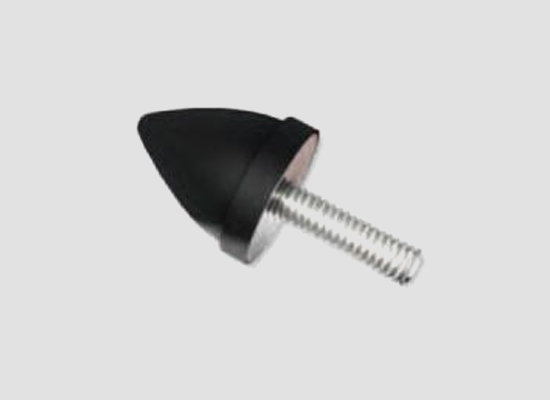

Damping elements that only work during expansion requirean additional element for compression. Here simple rubberbuffers mounted at an appropriate point on the rear wallhave proven themselves over many years.

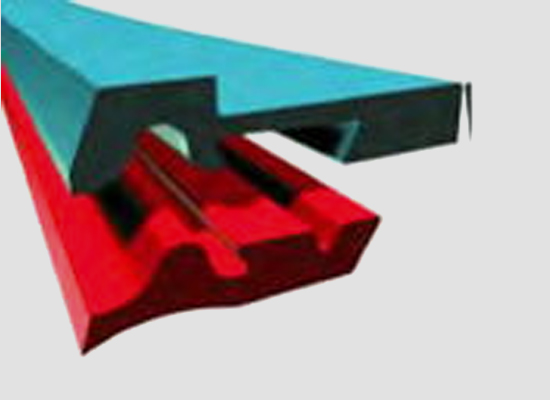

A specially-milled steel plate profile is spot-welded to the boxes and a PUR wiper lip is inserted. Necessary calculated distance of the cover plates 3.5 to 5.5 mm.

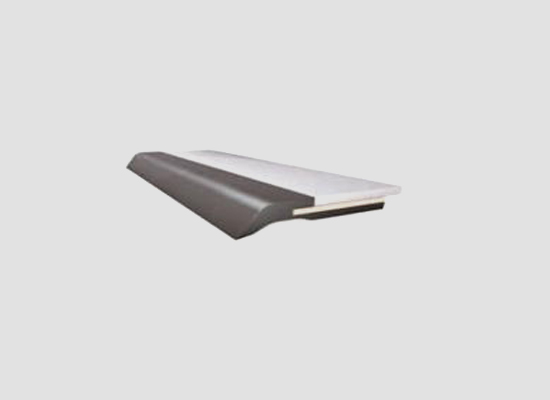

These wipers consist of an NBR profile vulcanized onto a steel strip. Necessary calculated distance of the cover plates 2.5 to 3.5 mm.
