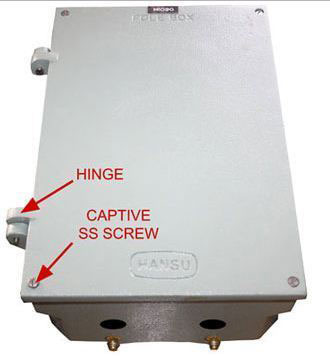

Design, manufacturing & supply of cast aluminium (lm-6) street light pole boxes with nipple entry at the back suitable for round pole complete with hinged cover and with either kitkat fuse or hrc fuse or mcb. It will be complete with upto 35 sq mm stud type terminals. Box is suitable for cables up to 4c x 35 sq mm cable. 2:1” or 2:1. 1/4” bottom entry will be provided. Arrangement for fixing bracket is provided at the back. Maximum of 3:1 ¼ “cable entries can be provided on bottom side ip65 class of protection as per is/iec 60529-2001,epoxy powder coated with 60 micron coating in light gray shade 631 as per is5,thickness of enclosure 3-6mm,6mm round neoprene rubber gasket in cover groove,2nos brass earthing by round head nickle plated brass screws with plain washer and spring washers,cover fixing by ss screws 5mm captive enclosure cast out of aluminium alloy lm-6 terminals stud type connectwel make with end plate ,end stop and markers on one side. Packing & forwarding for full lot upto transporter godown in newbombay will be rs. 600/- upto invoice value rs 24000/- & 2. 5% of invoice value if invoive value is more than rs. 24000.

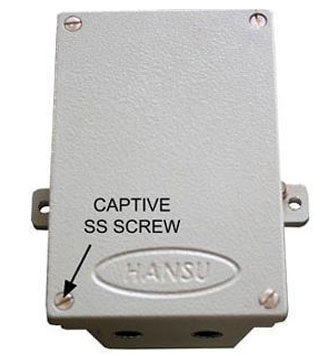

Sdesign, manufacturing & supply of cast aluminium (lm-6) street light pole boxes with nipple entry at the back suitable for round pole complete with fixed cover and with either kitkat fuse or hrc fuse. It will be complete with either 30a 4way terminal or upto 4 sq mm terminals. Box is suitable for cables up to 4c x 4 sq mm cable. 2:3/4” bottom entry will be provided. Arrangement for fixing bracket is provided at the back,ip65 class of protection as per is/iec 60529-2001 epoxy powder coated with 60 micron coating in light gray shade 631 as per is5,thickness of enclosure 3-6mm,6mm round neoprene rubber gasket in cover groove,2nos brass earthing by round head nickle plated brass screws with plain washer and spring washers,cover fixing by ss screws 5mm captive enclosure cast out of aluminium alloy lm-6 terminals clip on type connectwel make with end plate ,end stop and markers on one side. . Packing & forwarding for full lot upto transporter godown in newbombay will be rs. 600/- upto invoice value rs 24000/- & 2. 5% of invoice value if invoive value is more than rs. 24000

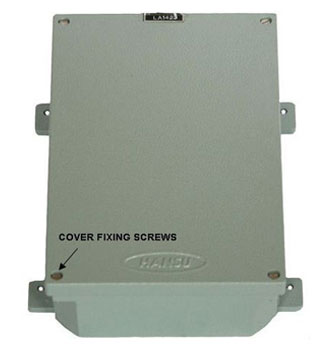

Design, manufacturing & supply of cast aluminum (lm-6) street light pole boxes with nipple entry at the back suitable for round pole complete with fixed cover and with either kitkat fuse or hrc fuse. It will be complete with terminal for cables upto 16 sq mm terminals. Box is suitable for cables up to 4c x 16 sq mm cable. 3:1” or 3:3/4” bottom entry will be provided. Arrangement for fixing bracket is provided at the back,ip65 class of protection as per is/iec 60529-2001,epoxy powder coated with 60 micron coating in light gray shade 631 as per is5,thickness of enclosure 3-6mm,6mm round neoprene rubber gasket in cover groove,2nos brass earthing by round head nickle plated brass screws with plain washer and spring washers,cover fixing by ss screws 5mm captive, terminals clip on or stud type connectwel make with end plate ,end stop and markers on one side. Packing & forwarding for full lot upto transporter godown in newbombay will be rs. 600/- upto invoice value rs 24000/- & 2. 5% of invoice value if invoive value is more than rs. 24000

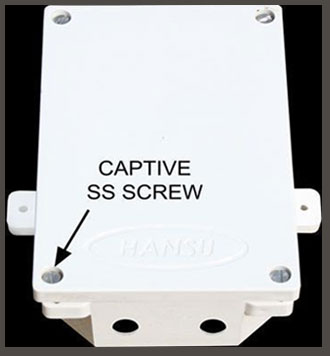

supply of frp/poly carbonate pole boxes with nipple entry at the back with kitkat type fuse and 30a 4 way terminal block. 2:3/4"cable entries will be provided at the bottom. Arrangement for fixing bracket is provided at the back ip65 class of protection as per is/iec 60529-2001 polycarbonate light gray shade,enclosure thickness 2-4mm 6mm round neoprene rubber gasket in cover groove 2nos brass earthing by round head nickle plated brass screws with plain washer and spring washers cover fixing by ss screws 4 mm captive . Packing & forwarding for full lot upto transporter godown in newbombay will be rs. 600/- upto invoice value rs 24000/- & 2. 5% of invoice value if invoive value is more than rs. 24000.
