Troubleshooting

Thermostatic Expansion Valves

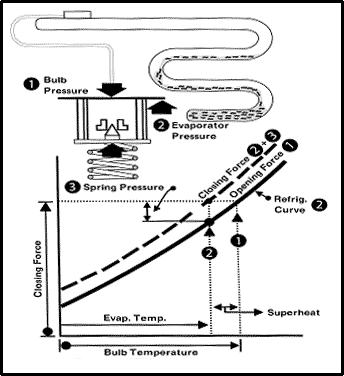

The Thermostatic Expansion Valve controls the liquid refrigerant flow entering into the evaporator in response to the super heat of the gas leaving it. Its basic function is to feed evaporator an expanded refrigerant as per variation in the suction pressure. It also avoids liquid stroke to the compressor. When responding to a refrigeration service call, the refrigeration technician immediately plays problem percentage upon entering the plant. Most refrigeration equipment breakdowns are repeat problems to some degree. Playing the percentage when responding to a service call enables the Technician to get to the root source of a problem as quickly as possible to prevent perishable product loss. The purpose of this form is to cover the higher percentage problems and repair procedures of TEVs in air-conditioning applications. A brief review of basic Thermostatic Expansion Valve operation is in order. The diaphragm is the actuating member of the Thermostatic Expansion Valve. There are three fundamental pressures acting on it: Sensing bulb pressure P1, equalizer pressure P2, and the equivalent spring pressure P3 The sensing bulb pressure is a function of temperature and acts on the top of the diaphragm causing the Thermostatic Expansion Valve to move in a opening direction. The equalizer and spring pressure act together underneath the diaphragm causing the valve to move in a closed position. Under normal operation (disregarding the pressure differential required across the diaphragm to move it), sensing bulb pressure equals equalizer pressure plus spring pressure, i.e.: P1 = P2 + P3. It is important to note that spring pressure is essentially constant once the valve is set. As a result, the Thermostatic Expansion Valve is actually controlling the difference between the bulb and the equalizer pressures, which is the amount of the spring pressure. The spring pressure represents the superheat the valve is controlling at the bulb location. Now with Thermostatic Expansion Valve basics aside, lets review some of the higher percentage Thermostatic Expansion Valve problems when servicing an air conditioning plant. The subject valves had previously been operating at the correct superheat setting.

Gas Charge Conventional Gas Changes are limited liquid that use the same refrigerant in the Thermostatic that use the same refrigeration system. The charge is such that, at a predetermined Temperature of the liquid has vapourised and any temperature in above this point results in virtually no increase in element pressure, because of the characteristic pressure limiting feature of its Thermostatic Element, the gas charged valve can provide compressor motor over load protection on some systems by limiting the maximum operating suction pressure (MOP). It also helps to prevent the return of refrigerant liquid to the compressor through suction line on starting. Increasing the superheat setting lowers the maximum operation suction pressure; decreasing the superheat setting raises it because the evaporator pressure, acts to balance the element pressure through the diaphragm. Gas charged valve must be carefully applied to avoid the loss of control from the bulb.

Liquid Charge straight liquid Charges use the same refrigerant in the Thermostatic Element that is used in the Refrigeration system. The volumes of the bulb capillary tubing, and diaphragm chamber are so proportioned that the bulb contains some liquid under all Temperature conditions. Therefore, the bulb always controls the valve operation, even with a colder diaphragm chambers or capillary tube. The characteristics of the Straight liquid Charge result in an increase in operating superheat as the evaporate temperature decreases. This usually limits the use of the straight liquid charge to moderately high evaporator Temperature may cause flood-back during pull down from normal ambient Temperatures.

Certain other types of charges are also used, by changing the Liquid or gas in the element to provide the control characteristics required. A proper study of the requirements should decide the charge.

Internal Equalizer When the Refrigerant Pressure drop through a single circuit evaporator is equivalent to not more than a 2°F change in Evaporator Temperature; a Thermostatic Expansion Valve that has an internal equalizer may be used. Internal equalization means that the valve outlet pressure is transmitted through an internal passage to the underside of the Diaphragm.

External Equalizer Because Evaporator and / or Refrigerant Pressure drop produces poor system performance with an internal equalizer valve, a valve that has an External Equalizer is used instead of the internal communicating passage, an external connected either to the suction line, or into the evaporator point downstream from the major Pressure drop. See fig. 8a & 8b.

12 Solutions for Fixing Common Thermostatic Expansion Valve Problems

(A) The Valve Will Not Feed Enough Refrigerant
1. Check the TEV Adjustment: The factory setting of a Thermostatic Expansion Valve is close to center stem. Count the total number of turns front seat to back seat, then front seat the adjustment stem to 50% of the total turns counted. Turn the adjusting stem counter clockwise in increments of 1/2 to 1 full turn every 15-minutes until the correct superheat is reached.

2. Check the Sensing Bulb Location: The sensing bulb should be securely fastened to a clean, straight section of the suction line. The bulb should not be influenced by ambient air temperature. The bulb should be attached to a horizontal suction line at the evaporator outlet. If the bulb cannot be located in this manner it may be located on a descending vertical line only. On suction lines and larger, it should be installed at 4 or 8 oclock on the side of the horizontal line. On smaller lines the bulb may be mounted at any point around the circumference except the bottom of the line where oil may influence the sensitivity. On multiple evaporators, the piping should be arranged so that the flow from any one valve cannot affect the sensing bulb of another. The equalizer connection should be made at a point several inches downstream of the bulb. Verify the sensing bulb is correctly installed.

Note: This check is also valid when the Thermostatic Expansion Valve is flooding the evaporator.

3. Check For Moisture: Water or a mixture of water and oil frozen in the valve port (or working parts of the valve) prevent proper operation. Since the valve is the first cold spot in the system, moisture will freeze restricting flow. The fact that the system has not been opened for years does not eliminate the potential for this problem. Elevating the temperature of a liquid line drier (already at maximum water retention) beyond its normal operating temperature can cause it to release moisture into the system. Liquid lines increase in temperature during a slow refrigerant leak, dirty condenser coil, failed condenser fan motor etc. Pour a cup of hot water on the valve body to melt the suspected internal ice formation. A telltale audible surge in refrigerant flow will indicate system moisture. Install a new filter-drier. Note: This check is also valid when the TEV is flooding the evaporator, the valve may freeze in a too open position.

4. Check for Contaminants in the Valve Body: Restrictive dirt or foreign material such as copper oxide scale, metal chips, oil breakdown, sludge, etc. Conventional strainers allow some types of these materials through ultimately obstructing the port of the Thermostatic Expansion Valve. Pump the system down, disassemble and clean the Thermostatic Expansion Valve. Install a filter-drier directly ahead of the TEV if additional contaminants are suspected between the main liquid line filter and the restricted Thermostatic Expansion Valve. If no contaminants are found, install a sight glass ahead of the TEV and go to step #5. Note: This check is also valid when the TEV is flooding the evaporator, the foreign material may prevent the valve from closing.

5. Check for a Solid Liquid Column to the TEV: Install a liquid line sight glass directly ahead of the Thermostatic Expansion Valve during step #4 while the system is pumped down. If flash-gas is present, check for a liquid line restriction or pressure drop caused by incorrect pipe size or poor piping practices. Correct the pressure drop as required. If the pressure drop is because of the length of the piping run or liquid lift, install a heat exchanger to sub-cool the refrigerant to the required temperature for elimination of the flash-gas.

6. Check Design Pressure Drop for Required Thermostatic Expansion Valve Capacity: The capacity of the Thermostatic Expansion Valve is a variable dependent on the pressure differential across the valve. Greater pressure drop across the TEV = greater Thermostatic Expansion Valve capacity. Remove the source of the pressure loss on the inlet, or pressure increase at the outlet. If the inlet pressure to the valve is due to low condensing pressure, install the appropriate head pressure controls. Installing a larger TEV is the last resort. These illustrations depict conditions that result in a loss of heat transfer due to either (top) unequal circuit loading or (bottom) unequal refrigerant distribution.

7. Check for Element Charge Migration: Pressure limiting type elements P, VGA and G charges have a limited volume of constituents. The bulb temperature must be lower than the element or the bulb constituents will migrate into the element causing the valve to throttle and or close. Warm the element with a heat gun (not a rosebud torch) returning the superheat to normal. Relocate the valve body to a location with a higher temperature than the sensing bulb.

(B) Thermostatic Expansion Valve Continuously or Cyclically Floods the Evaporator

A Thermostatic Expansion Valve is a modulating type valve with the ability to modulate the refrigerant flow rate much lower than its full load design rating. The more oversized the Thermostatic Expansion Valve, the larger the valve superheat swings. Thesuperheat swingâ references the number of degrees change from high to low at the evaporator outlet as the Thermostatic Expansion Valve modulates. The superheat swings are also referred to as hunting. A conventional non-balanced port Thermostatic Expansion Valve can modulate down to about 30% of its maximum loading. The Thermostatic Expansion Valve hunting (or swings) at this minimal percent are large enough that liquid refrigerant can spill past the sensing bulb before the valve throttles. A balanced port TEV can modulate down to approximately 25% of its maximum load rating before spillover occurs (the loading is lower with the balanced port valve because it is not influenced by inlet pressure).

Note: Increased pressure drop or decreased entering liquid temperature beyond design conditions increases the TEVs capacity.

8. Check the Thermostatic Expansion Valve Adjustment: The factory setting of a Thermostatic Expansion Valve is close to center stem. Count the total number of turns from front seat to back seat, then front seat the adjustment stem 50% of the total turns counted. Turn the adjusting stem clockwise in increments of 1/2 to 1 full turn every 15-minutes until the correct superheat is reached.

9. Check for a Solid Liquid Column to the Thermostatic Expansion Valve: The Thermostatic Expansion Valve adjustment stem may be opened far enough to offset less than a solid column of liquid in some applications. Should the condensing temperature drop, resulting in sub-cooled refrigerant, (a solid head of refrigerant) the Thermostatic Expansion Valve may flood. A lighter evaporator load may also result in a solid head of refrigerant to the TEV, leading to a flooded evaporator condition that did not formerly exist. Install a liquid line sight glass directly ahead of the TEV and verify a solid head of refrigerant during the adjustment procedure.

10. Time Study the Flooding Cycles: Thermostatic Expansion Valve with a severe hunt will go to zero degrees of superheat before the valve throttles closed. It may take up to several minutes for the liquid refrigerant in the flooded evaporator to boil off (exhibiting zero degrees superheat). The evaporator superheat may then conversely rise ten or more degrees for an additional minute or two before starting the cycle over. A Thermostatic Expansion Valve that is exhibiting this type of cyclical flooding condition should slowly be adjusted OPEN. Not only will the higher superheat value get lower, the zero degrees at the bottom of the TEV swing will increase to a superheated value. Reducing the adjustment spring pressure results in a higher volume, less erratic evaporator feed, in most applications.

11. Check the Evaporator for Air Side Heat Loading: The number of air turns in a walk-in cooler or feet per minute airflow in a refrigerated fixture should not be reduced. A loss of air movement because of dirt, ice, missing sheet metal panels or incorrect product load levels results in a loss of heat transfer. The Thermostatic Expansion Valve may hunt and flood if loaded too lightly.

Verify air movement is at design conditions.

12. Check the Evaporator for Unequal Circuit Loading: Multi-circuit evaporators and parallel evaporators connected to a single refrigerant distributor must receive an equal percentage of the total load. When each circuit is not subjected to the same heat load, the lightly loaded circuits will allow liquid refrigerant or low temperature vapor to enter the suction line and throttle the Thermostatic Expansion Valve. This will cause normally loaded circuits to be deprived of their share of the refrigerant. The net result is a loss of refrigerated evaporator surface and a potentially oversized Thermostatic Expansion Valve. Check the temperature of the suction outlets of each distributor circuit before the suction header. Unequal temperatures at these locations are the result of unequal loading. Check with the equipment manufacturer for the correct distributor and nozzle assembly if poor distribution is diagnosed.
