Application:

Ultra light weight Hydraulic jacks made in Aluminum alloy for easy handling in inaccessible and difficult locations. Jacks in single and double acting versions with lifting capacities ranging from 30 tons. to 100 tons. and stroke up to 1000 mm.

Specification:

Features:

• 4 stage,foldable and removable
• 360 Rotary Socket
• self contained hydraulic pumb with integral valve
• hat treated &chrome plated hydraulic cylinder rod
• Easy release of ram
• Heat treated forged alloy steel cross bolts & jaws with maganous phosphate plated

Features:

• Light weight, compact, easy to use
• Single acting spring return
• Cylinder is honed to a surface finish of 0.4 microns
• Cylinder is honed to a surface finish of 0.4 microns.
• Replaceable chisel
• Applications in petrochemicals, marine, steel plant, construction & cement plants

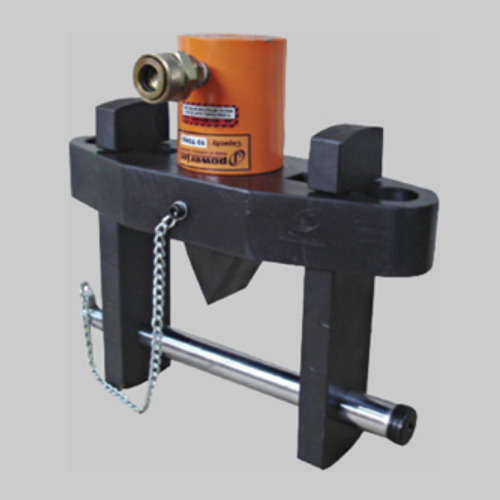

Keeping in sync with the times, we are engaged in manufacturing, supplying and trading Hydraulic Flange Spreader. Manufactured by using high quality material, offered flange spreaders comply with industry set standards. Our experts monitor every stage of production, in order remove defects and maintain higher standards of quality. We also offer these spreaders in customized range, so as to meet the exact needs of the clients.

Some of the features of these flange spreaders are mentioned as follows:

• Light weight
• Compact design
• Ease to use
• Single acting
• Cylinder is honed to a surface finish of 0.4 microns
• Hard chrome plated ram to resist scoring and corrosion
• Wiper to arrest ingress of foreign particles
• Adjustable jaw for job adaptability
• Wedge for limited spread application which are optional
• Tandem operation for spreading

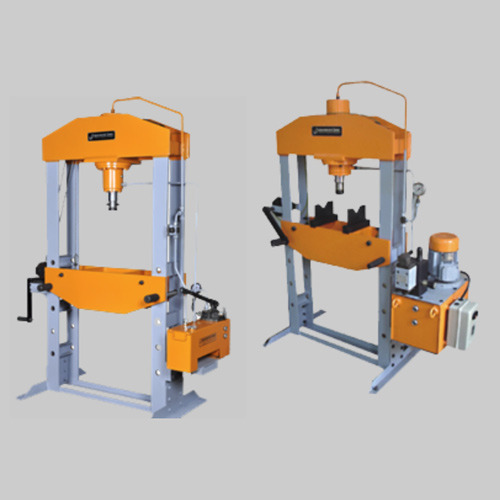

Specification:

Features:

• Single acting spring return / Double acting oil return
• Cylinder is honed to a surface finish of 0.4 microns
• Hard chrome plated ram to resist scoring and corrosion
• Ram wiper protects cylinder from entering dirt and foreign particles
• Working pressure 450 - 700 Bar. * Operated by Hand pump / Power pack
• Mechanical winch and V blocks shall be provided upto 100 T capacity presses

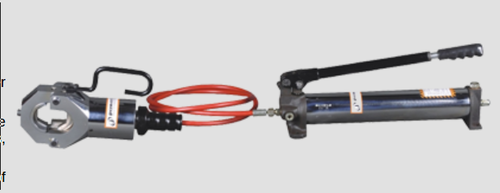

With firm commitment to quality, we are engaged in manufacturing, supplying and trading a comprehensive range if Hydraulic Crimping Tool. Available in various specifications, offered tools are also customized as per the requirements of the patrons. While manufacturing these tools, our professionals strictly follow industry laid norms and standards, at every stage. Along with this, our professionals use high-grade material and employ modern machines to manufacture these tools. All these tools are stringently tested on various parameters of quality and then forwarded for the final delivery to the clients.

These tools are appreciated for their following features:

• Single acting spring return for fast retraction
• Noiseless operation
• High pressure long life seals
• Useful in electrical power stations
• Designed for high voltage cable conduits, wire holders, ferrules and terminals
• Replaceable die sets of various sizes
• Custom built crimping tools are available

Specification:

These pumps are generally recommended for jacks above 30 tons capacity, high lift and multiple jacking.

Features/Benefits:

• Highly portable & light in weight
• Rugged construction
• Internal relief valve protects from overloading
• External adjustable release valve for releasing the pressure
• Provision available to attach pressure gauge
• Two speed operation with automatic change-over to high pressure reduces number of strokes
• Two speed hand pumps have two relief valves one for low pressure and other for high pressure
• Handle lock for double speed hand pumps
• Provision made for operating double acting jacks/cylinders through directional control valves
• Oil reservoir available according to draw off volume
• Provision available for fixing the pumping unit for non-portable applications

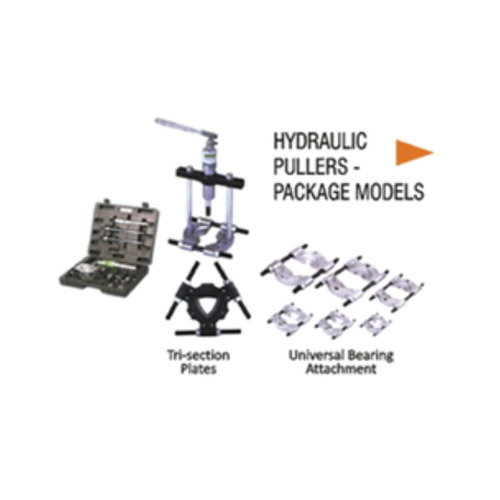

Features:

• Four stage of foldable & removable saves the handle force during operation
• 360 degree Rotary Socket
• Self-contained hydraulic pump and puller body with integral safety valve
• Heat treated & chrome plated hydraulic cylinder rod provides linear force
• Easily released valve
• Spring loaded live centering nut for easy job (removable)
• 2/3 jaws combination puller cross head with manganous-phosphate plated for rust proof and durability
• Heat treated forged alloy steel cross bolts & jaws with manganous phosphates plated for rust proof and long life service

Specification:

• Ultralight weight and compact
• High power to weight rations
• Reaction arm can rotate through 360o in 40 different Positions
• Working pressure - 700 bar ( 10,000 psi)
• Accuracy +/ - 3%
• Available in direct hex links or in square drive models
• High flow quick change coupler with dust caps
• Double acting precise cylinder
• Swivel hose connection with 360 freedom
• Quick interchanging of hex inserts
• Custom Built wrenches to suit specific applications.

Application:

These jacks are ideally used for lifting of girders, building foundations, handling of heavy duty machineries, steel fabrication, ship building, testing of concrete structures, pile testing etc.

Features:

• High strength, Heat treated alloy steel body for better life
• Hard chrome plated ram to resist scoring and corrosion
• Single acting load return
• High pressure long life seals. QCC with dust cap
• Wiper to arrest ingress of foreign particles
• Adequate gripping by grooved saddle
• Bottom mounting holes, collar threading and tilting saddle available on request
• Port size 3/8th inch NPT
• High tonnage & custom strokes available on request
• For high tonnage jacks, QCC is fitted on a safety manifold block to prevent protudence and possible damage while handling
• Working Pressure : 650 bar

Application:

These jacks are an excellent choice for maintenance, positioning bending, pressing. Ideal for a wide range of applications at construction site, mills, railway workshops, power plants and industrial maintenance.

Features:

• High strength, Heat treated alloy steel body for better life.
• Hard chrome plated ram to resist scoring and corrosion
• Single acting, spring return for smooth Lowering.
• Wiper to arrest ingress of foreign particles.
• Adequate gripping by grooved saddle.
• High pressure long life seals. Quick change couper with dust cap.
• Bottom mounting holes for bolting. Collar threading and tilting saddle available on request.
• Port size 3/8" inch NPT.
• Working Pressure 650 bar.

Application:

These jacks are ideally used for lifting of girders, building foundations, handling of heavy duty machineries, steel fabrication, ship building, testing of concrete structures etc.

Features:

• High strength, Heat treated alloy steel body for better life
• Blackodised ram
• Single acting load return with Threaded ram with mechanical safety lock-nut to sustain load on lock-nut for longer period
• Adequate gripping by grooved saddle. Tilting saddle available on request
• Adequate gripping by grooved saddle.High pressure long life seals. Bottom mounting holes for bolting
• QCC with dust cap. Port size 3/8th inch NPT
• High tonnage & custom strokes available on request
• For high tonnage jacks, QCC is fitted on a safety manifold block to prevent protudence and possible damage while handling
• Working Pressure : 650 bar

Features/Benefits:

• Rugged construction for safety and efficient jacking
• Alloy steel heat treated multiple pawls for strength and rigidity
• Alloy steel body and handle for durability.
• Forged & heat treated alloy steel rack with precision milled teeth for extra service life
• Large base for stability
• Tooth by tooth lifting and lowering. Trip lowering for quick withdrawal and
• Winding up operation. Lift per one stroke is 15mm
• Toe lift capacity is 50% of head load

Applications:

These are simplest and most versatile general purpose jacks widely used in railway track maintenance work, ship yards, oil fields, mining and construction work These jacks are manufactured and tested as per relevant Indian standards

Specifications:

Features:

• High strength, Heat treated alloy steel body for better life.
• Hard chrome plated ram to resist scoring and corrosion.
• Single acting spring return for smooth lowering
• Wiper to arrest ingress of foreign particles
• Bigger center hole designed allows to run screws/cables/studs to pull or push forces
• High pressure long life seals. Quick change coupler with dust cap
• Bottom mounting holes for fixturing different types of puller attachments. l Port size 3/8th inch NPT
• Working Pressure : 650 bar

All these floor cranes are highly applauded for their following features:

• Heavy duty
• Rigid construction
• Adjustable frame boom and legs
• Can be locked precisely in different positions
• Single acting, load return cylinder operated by hydraulic hand pump
• Cylinder is honed to a surface finish of 0.4 microns
• Longer service life
• Hard chrome plated ram
• Resistance against scoring and corrosion
• Fixed front wheels
• 3600 movable
• Easy mobility

Specification:

Features/Benifits:

• Compact, Flat design, heat treated alloy steel body for better life
• Hard chrome-plated ram to resist scoring & corrosion
• Single acting, spring return for smother lowering. High pressure long life seals
• Top mounting holes for easy fixturing. Grooved ram acts as integral saddle
• Wiper to arresr ingress of foreign particles
• Port size 1/4th" inch or 3/8th" inch NPT. Quick change coupler with dust cap
• Working Pressure 700 Bar

Additional Information:

• Item Code: H-01

Features:

• Compact design, high strength, heat treated alloy steel body for better life
• Hard chrome-plated ram to resist scoring & corrosion
• Single acting, spring return for smooth lowering. High pressure long life seals
• Bottom Mounting holes for bolting. Grooved ram acts as integral saddle
• Wiper to arrest ingress of foreign practicles
• Port size 1/4th" inch or 3/8th" inch NPT. Quick change coupler with dust cap
• Working Pressure 700 Bar

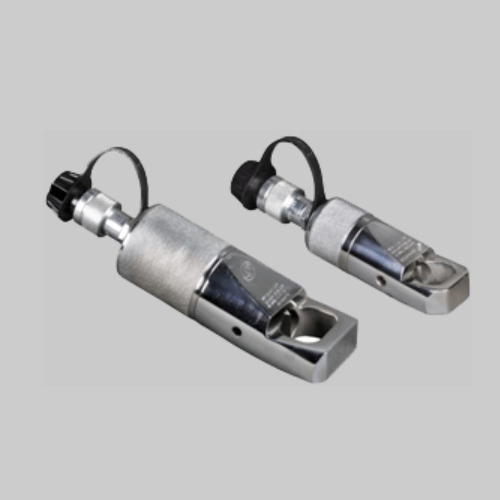

Features of these cutters are mentioned as under:

• Longer functional life
• Least maintenance
• Accurate dimensions
• Robustness
• Rust resistance
• Equipped with remote control Hydraulic hand Pump
• Inbuilt hand pump or electric power pack
• Suitable for cutting thick telephone and other similar cables

Light Weight, Double Acting, Oil Return, High Pressure Hydraulic Jack

Application :

These jacks are designed to provide oil force in both the advance and retraction of ram, in vertical & horizontal position, where cycle time is crucial. These are mainly used for hydraulic testing machine and for lifting, lowering, spreading of structures, bridges, heavy machinery etc.

Features/Benefits:

• High Strength, Alloy steel body for better life. Double acting
• Hard chrome plated ram to resist scoring and corrosion
• Ideal for heavy duty application
• For high tonnage jacks, QCC is fitted on a safety manifold block to prevent protudence and possible damage while handling
• High pressure long life seals. QCC with dust cap
• Wiper to arrest ingress of foreign particles
• Relief valve in return position prevents accident against over pressure intensification
• Adequate gripping by grooved saddle. High tonnage & custom strokes available on request
• Bottom mounting holes, collar threading, tilting saddle and Hose burst features available on request
• Port size 3/8th inch NPT.l Working pressure 650 bar
