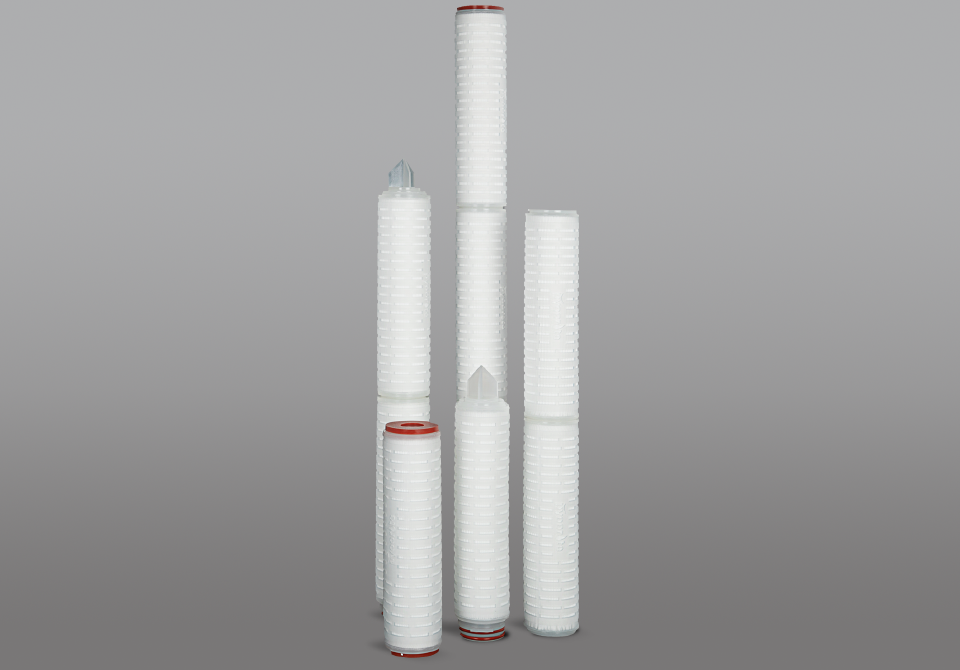

These filters are manufactured using pleated polypropylene double layered membrane as the filtering material, and polypropylene shell for internal and external support. These filters are thermally welded without any adhesive.
Pyoorite
Technical Name :PP Pleated Filter Cartridges
Raw Material:Virgin Polypropylene
ID :27mm
OD :65mm
Length :5" 10" 20" 30" 40" & 50"
Microns :0.1, 0.2, 0.45, 1, 2, 5 & 10µ
Construction :Inside and outside perforated core,
In between pleated membrane filtration media
Top & Bottom :DOE (Double open end), SOE (Single open end)
Flow :1m³ per hour per 10" at pressure of 2.5Kg/cm²
Temperature :60° C
