The storage device for power

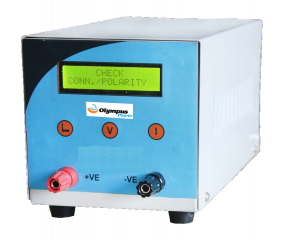

Olympus Power has wide range of intelligent multistage battery charger to enhance the battery life and adjust itself to battery conditions.
| Model | BC24-20A-SMPS |
| INPUT | |
| AC INPUT VOLTAGE | 220VAC, 1¯ |
| AC INPUT WORKING RANGE | 170VAC TO 270VAC |
| FREQUENCY | 50Hz ± 6% |
| INRUSH CURRENT | LIMITED BY NTC THERMISTER |
| SURGE VOLTAGE PROTECTION | MOV |
| EMI/EMC | EMI-RFI FILTER AT INPUT |
| OUTPUT : | |
| VOLTAGE & CURRENT | 12VDC / 24VDC (user selectable according to battery) |
| OUTPUT CURRENT 20A MAX | |
| (USER SELECTABLE IN STEPS OF 4A) | |
| Static regulation | ± 1 % |
| RMS CURRENT RIPPLE | ² 5% |
| CHARGING PROFILE | MULTI STEPS CHARGING (PLEASE SEE TABLE-1) |
| INDICATION & ALARM : | |
| LCD DISPLAY PARAMETERS | OUTPUT VOLTAGE |
| OUTPUT CURRENT | |
| STEP NUMBER | |
| SYSTEM VOLTAGE | |
| CHARGER STATUS | |
| BUZZER | CHARGE FINISH |
| PROTECTIONS : | BATTERY REVERSE PROTECTION. |
| SHORT CIRCUIT PROTECTION. | |
| SPARK PREVENTION WHILE CONNECTING BATTERY CLIPS. | |
| AUTOMATIC SHUT OFF WHEN BATTERY IS SCONNECTED. | |
| AC INPUT FUSE. | |
| GENERAL | |
| NUMBER OF BATTERY | MAX. 2 NO OF 12V |
| CONTROL | HIGH FREQUENCY PWM |
| COOLING SYSTEM | FAN COOLED |
| OPERATING TEMPERATURE | 0¡C TO 50¡C |
| RELATIVE HUMIDITY | 95% MAXIMUM,NON CONDENSING |
| ALTITUDE | 1500MTR AMSL |
| ENCLOSURE | IP20 |
| WEIGHT | 3.6kg |
| DIMENSIONS( H x W x D ) | 130mm X 240mm X 350mm |
| Since we are committed to continuous development of our products, the specification are subject to change without notice. | |
FOR 24V SYSTEM “IN FLOAT MODE, IF VBATT < 12.8V / 25.6V, CHARGING PROCESS WILL START AGAIN." [/table] |
| Model | BC12-5A-SMPS / BC24-5A-SMPS |
| INPUT | |
| AC INPUT VOLTAGE | 220VAC, 1¯ |
| AC INPUT WORKING RANGE | 170VAC TO 270VAC |
| FREQUENCY | 50Hz ± 6% |
| INRUSH CURRENT | LIMITED BY NTC THERMISTER |
| SURGE VOLTAGE PROTECTION | MOV |
| EMI/EMC | EMI-RFI FILTER AT INPUT |
| OUTPUT : | |
| VOLTAGE & CURRENT | 12VDC / 24VDC (user selectable according to battery) |
| 5 A Max. | |
| Static regulation | ± 1 % |
| RMS CURRENT RIPPLE | ² 5% |
| CHARGING PROFILE | MULTI STEPS CHARGING (PLEASE SEE TABLE-1) |
| INDICATION & ALARM : | |
| LCD DISPLAY PARAMETERS | OUTPUT VOLTAGE |
| OUTPUT CURRENT | |
| STEP NUMBER | |
| SYSTEM VOLTAGE | |
| CHARGER STATUS | |
| BUZZER | CHARGE FINISH |
| PROTECTIONS : | BATTERY REVERSE PROTECTION. |
| SHORT CIRCUIT PROTECTION. | |
| SPARK PREVENTION WHILE CONNECTING BATTERY CLIPS. | |
| AUTOMATIC SHUT OFF WHEN BATTERY IS DISCONNECTED. | |
| AC INPUT FUSE. | |
| GENERAL | |
| NUMBER OF BATTERY | MAX. 2 NO OF 12V |
| CONTROL | HIGH FREQUENCY PWM |
| COOLING SYSTEM | fan cooled |
| OPERATING TEMPERATURE | 0¡C TO 50¡C |
| RELATIVE HUMIDITY | 95% MAXIMUM,NON CONDENSING |
| ALTITUDE | 1500MTR AMSL |
| ENCLOSURE | IP20 |
| WEIGHT | 2.0KG |
| DIMENSIONS( H x W x D ) | 135mm X 130mm X 270mm |
| Since we are committed to continuous development of our products, the specification are subject to change without notice. | |
FOR 24V SYSTEM “IN FLOAT MODE, IF VBATT < 12.8V / 25.6V, CHARGING PROCESS WILL START AGAIN." [/table] |
| Model | BC12-8A-SMPS / BC24-8A-SMPS |
| INPUT | |
| AC INPUT VOLTAGE | 220VAC, 1¯ |
| AC INPUT WORKING RANGE | 170VAC TO 270VAC |
| FREQUENCY | 50Hz ± 6% |
| INRUSH CURRENT | LIMITED BY NTC THERMISTER |
| SURGE VOLTAGE PROTECTION | MOV |
| EMI/EMC | EMI-RFI FILTER AT INPUT |
| OUTPUT : | |
| VOLTAGE & CURRENT | 12VDC / 24VDC (user selectable according to battery) |
| 8 A Max. (user selectable in steps of 2A) | |
| Static regulation | ± 1 % |
| RMS CURRENT RIPPLE | ² 5% |
| CHARGING PROFILE | MULTI STEPS CHARGING (PLEASE SEE TABLE-1) |
| INDICATION & ALARM : | |
| LCD DISPLAY PARAMETERS | OUTPUT VOLTAGE |
| OUTPUT CURRENT | |
| STEP NUMBER | |
| SYSTEM VOLTAGE | |
| CHARGER STATUS | |
| BUZZER | CHARGE FINISH |
| PROTECTIONS : | BATTERY REVERSE PROTECTION. |
| SHORT CIRCUIT PROTECTION. | |
| SPARK PREVENTION WHILE CONNECTING BATTERY CLIPS. | |
| AUTOMATIC SHUT OFF WHEN BATTERY CLIP DISCONNECTED. | |
| AC INPUT FUSE. | |
| GENERAL | |
| NUMBER OF BATTERY | MAX. 2 NO OF 12V |
| CONTROL | HIGH FREQUENCY PWM |
| COOLING SYSTEM | fan cooled |
| OPERATING TEMPERATURE | 0¡C TO 50¡C |
| RELATIVE HUMIDITY | 95% MAXIMUM,NON CONDENSING |
| ALTITUDE | 1500MTR AMSL |
| ENCLOSURE | IP20 |
| WEIGHT | 2.0KG |
| DIMENSIONS( H x W x D ) | 135mm X 130mm X 270mm |
| Since we are committed to continuous development of our products, the specification are subject to change without notice. |
| Model | BC12-10A-SMPS / BC24-10A-SMPS |
| INPUT | |
| AC INPUT VOLTAGE | 220VAC, 1¯ |
| AC INPUT WORKING RANGE | 170VAC TO 270VAC |
| FREQUENCY | 50Hz ± 6% |
| INRUSH CURRENT | LIMITED BY NTC THERMISTER |
| SURGE VOLTAGE PROTECTION | MOV |
| EMI/EMC | EMI-RFI FILTER AT INPUT |
| OUTPUT : | |
| VOLTAGE & CURRENT | 12VDC / 24VDC (user selectable according to battery) |
| 10 A Max. (user selectable in steps of 2A) | |
| Static regulation | ± 1 % |
| RMS CURRENT RIPPLE | ² 5% |
| CHARGING PROFILE | MULTI STEPS CHARGING (PLEASE SEE TABLE-1) |
| INDICATION & ALARM : | |
| LCD DISPLAY PARAMETERS | OUTPUT VOLTAGE |
| OUTPUT CURRENT | |
| STEP NUMBER | |
| SYSTEM VOLTAGE | |
| CHARGER STATUS | |
| BUZZER | CHARGE FINISH |
| PROTECTIONS : | BATTERY REVERSE PROTECTION. |
| SHORT CIRCUIT PROTECTION. | |
| SPARK PREVENTION WHILE CONNECTING BATTERY CLIPS. | |
| AUTOMATIC SHUT OFF WHEN BATTERY IS DISCONNECTED. | |
| AC INPUT FUSE. | |
| GENERAL | |
| NUMBER OF BATTERY | MAX. 2 NO OF 12V |
| CONTROL | HIGH FREQUENCY PWM |
| COOLING SYSTEM | fan cooled |
| OPERATING TEMPERATURE | 0¡C TO 50¡C |
| RELATIVE HUMIDITY | 95% MAXIMUM,NON CONDENSING |
| ALTITUDE | 1500MTR AMSL |
| ENCLOSURE | IP20 |
| WEIGHT | 2.0KG |
| DIMENSIONS( H x W x D ) | 135mm X 130mm X 270mm |
| Since we are committed to continuous development of our products, the specification are subject to change without notice. | |
FOR 24V SYSTEM “IN FLOAT MODE, IF VBATT < 12.8V / 25.6V, CHARGING PROCESS WILL START AGAIN." [/table] |
