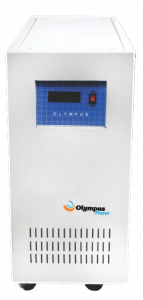

Lift Inverter

Features

Advance MICRO CONTROLLER based LIFT INVERTER products have been carefully designed to operate in both industrial and commercial environments. In commercial applications, our Lift inverter products fit according to aesthetically into the environment and perform reliably for years.

• Micro Controller/DSP Based smart controller design
• Pure Sine Wave Output
• Electronic Overload and Short Circuit Protection
• Easily Serviceable
• Auto Reset Feature
• Mains Input Voltage Range Selection.
• Multi Stage Charging
• Audio Visual Indications (Status & Fault)

Specifications

Lift Inverter: LF10120

Type	3 Phase Input – 3 Phase Output
Model	LF10120
INPUT
Input Voltage Range	380V ~ 480V AC
No of Phases	3Phase – 4Wire
Input Frequency	45Hz – 55Hz
UPS Input connection type	Hard Wire
BATTERY Full Load Runtime (minutes)	Depends on Load & Battery AH
OUTPUT
Output Capacity (KVA)	10 KVA
Power (watts)	8000
DC System Voltage (VDC)	120V
Frequency Compatibility	50Hz ±0.1Hz
Output Voltage	415V ±2%
Output waveform	Pure Sine Wave
Load PF Range	0.8 Lagging
Load Crest Factor	3:1
Efficiency	>85%
Load Capacity	>110% for 300ms
Phases	3Phase – 4Wire
Output Voltage THD	²3% (Linear Load)
GENERAL
LCD / LEDs Indications	Mains ON, Inverter ON, Battery Low Trip, Mains Fail, Battery Low Alarm / as per customer's specification
Alarms	Power Failure, Battery Low & Overload Short Circuit
Switch	One Switches control off / on power status
Maintenance By-Pass	Manual By-Pass Switch
Protection	Battery Low & Overload , Short circuit , Mains UV / OV, Output UV / OV , Single Phasing & Phase unbalance (for 3-Ph input only)
Cooling Method	Forced air cooled
DIMENSIONS
Cabinet Dimensions(HxWxL)mm	600 X 355 X 700
Cabinet Weight (kg)	60 Kg
Shipping Dimensions(HxWxL)mm	615 X 370 X 715
Shipping Weight (kg)	70 Kg
Housing Material	Powder coated / painted MS
ENVIRONMENTAL
Operating Temperature Range	0¡C to 50¡C
Relative Humidity	95% (non-condensing)
Acoustic Noise	²51dB at 1.5 meter
Degree of Protection	IP 20
BATTERY
Number of Battery	10
Battery Charging Profile(Boost /Foat)	Suitable according to Battery type (eg:VRLA / SMF / Wet Lead Acid Battery)
Max Charging Current(when battery is fully discharge)	10A ±2amp
SPECIAL FEATURES
Cold Start (startup in battery mode during a power failure)	Cold – start operation supported
CERTIFICATIONS
Quality Certifications	ISO 9001:2008
WARRANTY
Product Warranty Period	1 – year limited warranty
Since we are committed to continuous development of our products, the specifications are subject to change without notice.

Lift Inverter: LF7.572

Type	3 Phase Input – 3 Phase Output
Model	LF7.572
INPUT
Input Voltage Range	380V ~ 480V AC
No of Phases	3Phase – 4Wire
Input Frequency	45Hz – 55Hz
UPS Input connection type	Hard Wire
BATTERY Full Load Runtime (minutes)	Depends on Load & Battery AH
OUTPUT
Output Capacity (KVA)	7.5 KVA
Power (watts)	6000
DC System Voltage (VDC)	72V
Frequency Compatibility	50Hz ±0.1Hz
Output Voltage	415V ±2%
Output waveform	Pure Sine Wave
Load PF Range	0.8 Lagging
Load Crest Factor	3:1
Efficiency	>85%
Load Capacity	>110% for 300ms
Phases	3Phase – 4Wire
Output Voltage THD	²3% (Linear Load)
GENERAL
LCD / LEDs Indications	Mains ON, Inverter ON, Battery Low Trip, Mains Fail, Battery Low Alarm / as per customer's specification
Alarms	Power Failure, Battery Low & Overload Short Circuit
Switch	One Switches control off / on power status
Maintenance By-Pass	Manual By-Pass Switch
Protection	Battery Low & Overload , Short circuit , Mains UV / OV, Output UV / OV , Single Phasing & Phase unbalance (for 3-Ph input only)
Cooling Method	Forced air cooled
DIMENSIONS
Cabinet Dimensions(HxWxL)mm	600 X 355 X 700
Cabinet Weight (kg)	60 Kg
Shipping Dimensions(HxWxL)mm	615 X 370 X 715
Shipping Weight (kg)	70 Kg
Housing Material	Powder coated / painted MS
ENVIRONMENTAL
Operating Temperature Range	0¡C to 50¡C
Relative Humidity	95% (non-condensing)
Acoustic Noise	²51dB at 1.5 meter
Degree of Protection	IP 20
BATTERY
Number of Battery	6
Battery Charging Profile(Boost /Foat)	Suitable according to Battery type (eg:VRLA / SMF / Wet Lead Acid Battery)
Max Charging Current(when battery is fully discharge)	10A ±2amp
SPECIAL FEATURES
Cold Start (startup in battery mode during a power failure)	Cold – start operation supported
CERTIFICATIONS
Quality Certifications	ISO 9001:2008
WARRANTY
Product Warranty Period	1 – year limited warranty
Since we are committed to continuous development of our products, the specifications are subject to change without notice.

Lift Inverter: LF10180

Type	3 Phase Input – 3 Phase Output
Model	LF10180
INPUT
Input Voltage Range	380V ~ 480V AC
No of Phases	3Phase – 4Wire
Input Frequency	45Hz – 55Hz
UPS Input connection type	Hard Wire
BATTERY Full Load Runtime (minutes)	Depends on Load & Battery AH
OUTPUT
Output Capacity (KVA)	10 KVA
Power (watts)	8000
DC System Voltage (VDC)	180V
Frequency Compatibility	50Hz ±0.1Hz
Output Voltage	415V ±2%
Output waveform	Pure Sine Wave
Load PF Range	0.8 Lagging
Load Crest Factor	3:1
Efficiency	>85%
Load Capacity	>110% for 300ms
Phases	3Phase – 4Wire
Output Voltage THD	²3% (Linear Load)
GENERAL
LCD / LEDs Indications	Mains ON, Inverter ON, Battery Low Trip, Mains Fail, Battery Low Alarm / as per customer's specification
Alarms	Power Failure, Battery Low & Overload Short Circuit
Switch	One Switches control off / on power status
Maintenance By-Pass	Manual By-Pass Switch
Protection	Battery Low & Overload , Short circuit , Mains UV / OV, Output UV / OV , Single Phasing & Phase unbalance (for 3-Ph input only)
Cooling Method	Forced air cooled
DIMENSIONS
Cabinet Dimensions(HxWxL)mm	600 X 355 X 700
Cabinet Weight (kg)	60 Kg
Shipping Dimensions(HxWxL)mm	615 X 370 X 715
Shipping Weight (kg)	70 Kg
Housing Material	Powder coated / painted MS
ENVIRONMENTAL
Operating Temperature Range	0¡C to 50¡C
Relative Humidity	95% (non-condensing)
Acoustic Noise	²51dB at 1.5 meter
Degree of Protection	IP 20
BATTERY
Number of Battery	15
Battery Charging Profile(Boost /Foat)	Suitable according to Battery type (eg:VRLA / SMF / Wet Lead Acid Battery)
Max Charging Current(when battery is fully discharge)	10A ±2amp
SPECIAL FEATURES
Cold Start (startup in battery mode during a power failure)	Cold – start operation supported
CERTIFICATIONS
Quality Certifications	ISO 9001:2008
WARRANTY
Product Warranty Period	1 – year limited warranty
Since we are committed to continuous development of our products, the specifications are subject to change without notice.

Lift Inverter: LF15180

Type	3 Phase Input – 3 Phase Output
Model	LF15180
INPUT
Input Voltage Range	380V ~ 480V AC
No of Phases	3Phase – 4Wire
Input Frequency	45Hz – 55Hz
UPS Input connection type	Hard Wire
BATTERY Full Load Runtime (minutes)	Depends on Load & Battery AH
OUTPUT
Output Capacity (KVA)	15 KVA
Power (watts)	12000
DC System Voltage (VDC)	180V
Frequency Compatibility	50Hz ±0.1Hz
Output Voltage	415V ±2%
Output waveform	Pure Sine Wave
Load PF Range	0.8 Lagging
Load Crest Factor	3:1
Efficiency	>85%
Load Capacity	>110% for 300ms
Phases	3Phase – 4Wire
Output Voltage THD	²3% (Linear Load)
GENERAL
LCD / LEDs Indications	Mains ON, Inverter ON, Battery Low Trip, Mains Fail, Battery Low Alarm / as per customer's specification
Alarms	Power Failure, Battery Low & Overload Short Circuit
Switch	One Switches control off / on power status
Maintenance By-Pass	Manual By-Pass Switch
Protection	Battery Low & Overload , Short circuit , Mains UV / OV, Output UV / OV , Single Phasing & Phase unbalance (for 3-Ph input only)
Cooling Method	Forced air cooled
DIMENSIONS
Cabinet Dimensions(HxWxL)mm	600 X 355 X 700
Cabinet Weight (kg)	60 Kg
Shipping Dimensions(HxWxL)mm	615 X 370 X 715
Shipping Weight (kg)	70 Kg
Housing Material	Powder coated / painted MS
ENVIRONMENTAL
Operating Temperature Range	0¡C to 50¡C
Relative Humidity	95% (non-condensing)
Acoustic Noise	²51dB at 1.5 meter
Degree of Protection	IP 20
BATTERY
Number of Battery	15
Battery Charging Profile(Boost /Foat)	Suitable according to Battery type (eg:VRLA / SMF / Wet Lead Acid Battery)
Max Charging Current(when battery is fully discharge)	10A ±2amp
SPECIAL FEATURES
Cold Start (startup in battery mode during a power failure)	Cold – start operation supported
CERTIFICATIONS
Quality Certifications	ISO 9001:2008
WARRANTY
Product Warranty Period	1 – year limited warranty
Since we are committed to continuous development of our products, the specifications are subject to change without notice.

Lift Inverter: LF25360

Type	3 Phase Input – 3 Phase Output
Model	LF25360
INPUT
Input Voltage Range	380V ~ 480V AC
No of Phases	3Phase – 4Wire
Input Frequency	45Hz – 55Hz
UPS Input connection type	Hard Wire
BATTERY Full Load Runtime (minutes)	Depends on Load & Battery AH
OUTPUT
Output Capacity (KVA)	25 KVA
Power (watts)	20000
DC System Voltage (VDC)	360V
Frequency Compatibility	50Hz ±0.1Hz
Output Voltage	415V ±2%
Output waveform	Pure Sine Wave
Load PF Range	0.8 Lagging
Load Crest Factor	3:1
Efficiency	>85%
Load Capacity	>110% for 300ms
Phases	3Phase – 4Wire
Output Voltage THD	²3% (Linear Load)
GENERAL
LCD / LEDs Indications	Mains ON, Inverter ON, Battery Low Trip, Mains Fail, Battery Low Alarm / as per customer's specification
Alarms	Power Failure, Battery Low & Overload Short Circuit
Switch	One Switches control off / on power status
Maintenance By-Pass	Manual By-Pass Switch
Protection	Battery Low & Overload , Short circuit , Mains UV / OV, Output UV / OV , Single Phasing & Phase unbalance (for 3-Ph input only)
Cooling Method	Forced air cooled
DIMENSIONS
Cabinet Dimensions(HxWxL)mm	600 X 355 X 700
Cabinet Weight (kg)	60 Kg
Shipping Dimensions(HxWxL)mm	615 X 370 X 715
Shipping Weight (kg)	70 Kg
Housing Material	Powder coated / painted MS
ENVIRONMENTAL
Operating Temperature Range	0¡C to 50¡C
Relative Humidity	95% (non-condensing)
Acoustic Noise	²51dB at 1.5 meter
Degree of Protection	IP 20
BATTERY
Number of Battery	30
Battery Charging Profile(Boost /Foat)	Suitable according to Battery type (eg:VRLA / SMF / Wet Lead Acid Battery)
Max Charging Current(when battery is fully discharge)	10A ±2amp
SPECIAL FEATURES
Cold Start (startup in battery mode during a power failure)	Cold – start operation supported
CERTIFICATIONS
Quality Certifications	ISO 9001:2008
WARRANTY
Product Warranty Period	1 – year limited warranty
Since we are committed to continuous development of our products, the specifications are subject to change without notice.
