Applications : Power Factor Panels, Furnace Panels, UPS, Fluroscent Lamps.

Om make reactors are designed to meet specific design criteria such as Q factor, inductance tolerances etc. series line reactors shall be designed for harmonic filtering service and for slowing the rate of rapid current charges. The reactors shall be UL component - recognized and shall be built to comply to UL 508 construction shall be of copper wire - wound on magnetic steel cores. Series line reactors shall be sized appropriately for the total connected load. Design maximum temperature rise for reactors shall be 115°c on bobbin wound and 155°c on form wound devices at rated circuit.

Non-linear equipment generate harmonic as multiples of a fundamental frequency such as AC/DC motor speed controllers, are furnaces compact fluorescent lamps, uninterruptible power sources. As a result of this fact besides the fundamental frequency, 3rd, 5th, 7th, 9th, 13th, harmonic are generated.

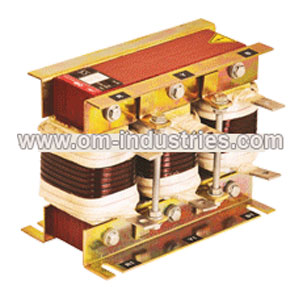

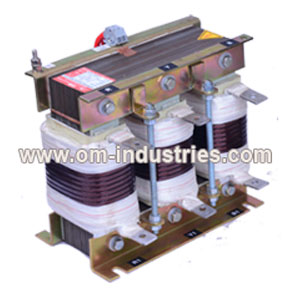

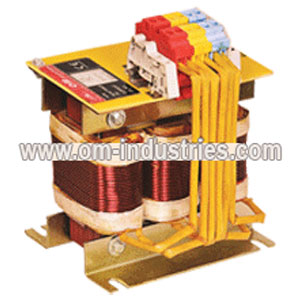

Specification of Harmonic filter Reactor (Detuned Reactor) :

• Operating Voltage: 3 x 415/440V
• Supply Frequency: 50/60Hz
• Filtering Detuning Factor: 5.69%, 7%, 14% corresponding to tuning frequencies of 210Hz, 189Hz, and 134 Hz for the base of 50Hz.
• Tolerance of Inductance: ± 5%
• High Linearity: 1.8In (180%)
• Over Load Capability: 150 % for 10 minute of Rated current & 200 % 10 Second of Rated current.
• High Voltage Test: 4 KVA
• Temperature rise: 110° < maximum on full Load
• Maximum Audible Level at Two (2) Meters : Line / Load Application 76 dBa
• Standard: IS-5553-/EN-61558-2-20/IEC-60076-6
• 'CE' approved.

Product Range :

• 5KVAr to 100 KVAr(Copper/Aluminum)
