Formwork

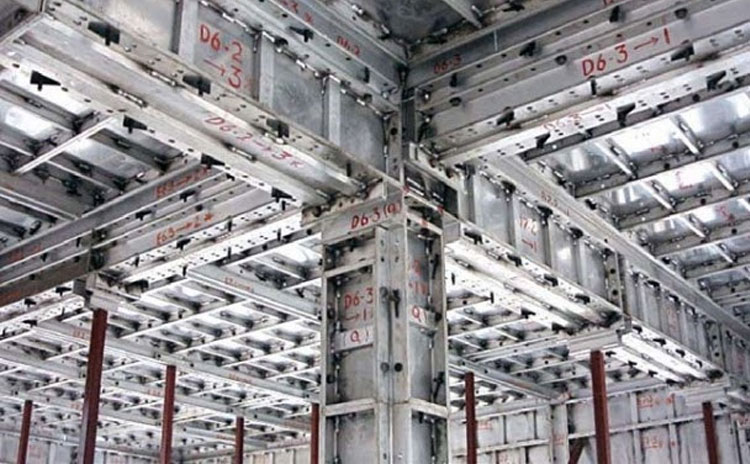

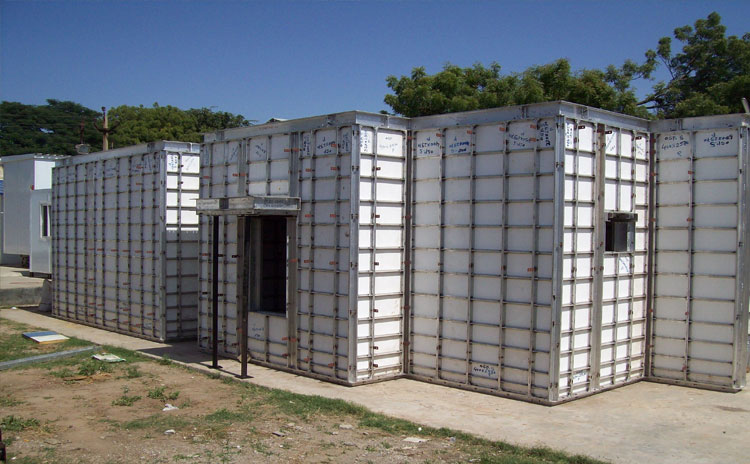

ALUMINIUM FORMWORK
Aluminum Formwork System, a comparatively a new technology in India, saves cost, time and improves the quality of construction. For repetition of building layouts and for above-the-plinth work, Aluminum Formwork system is very cost effective. Aluminum Formwork panels can be designed for any condition/component of building such as bay windows, stairs, balconies and special architectural features.
Specification :
Supply of structurally & systematically designed Aluminium Formwork system for Monolithic Concrete Construction, (Walls and Slabs cast together).
• The system shall be capable of minimum 150 repetitions use in ideal condition.
• The form work system shall be designed to suit units cluster + passage + services like lift wall and ducts, stairs etc. as per your drawings, casting at one shot as per the plans.
• Each component of the system shall bear distinct identification mark matching, with assembly / installation drawings for the system.
• The form work system shall be supplied with three sets of assembly / installation drawings in hard copy & one soft copy in CAD format and installation manual for the given plan.
• The system supplied shall be of best quality with perfect dimensions and finish.
• The wall form shall be able to withstand concrete pressure arsing of due to wall thick + pumping and casting pressure of concrete .
• The slab form shall be able to withstand pressure of concrete + pumping and casting pressure of concrete.
• The whole systems shall be capable for multi-storeyed construction of Typical Basement and stories.
• The system shall approx. weight of 24Kg/Sqm ± 5%.
• The formwork system shall include all accessories like, Pin-Wedges, Wall ties, Nut-Bolts and other accessories necessary to erect the form work system for monolithic concrete construction of multi-storeyed buildings.
• Additional Alignment Waller shall be provided for all the walls to withstand concrete pressure and alignment of the wall.
• The aluminium components shall be from 6061 / 6063 aluminium alloy with T6 temper while the sheet and panels shall 3105 aluminium alloy.
• Company provide services of technical supervisor toguide and also provide equipment for successful erecting and casting of one floor of the building.

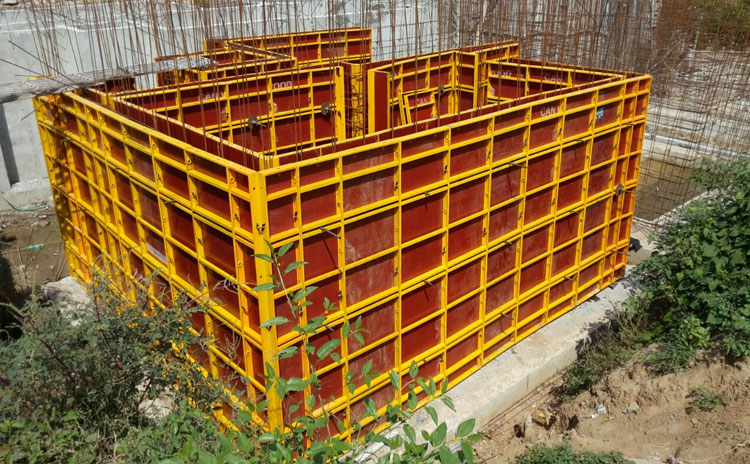

MS AND PLY FORMWORK
We offer MS Frame Made from Steel Sections like Angle/ Channel on which plywood can bolted. The frames areaccurately made as per sizes & give strength & life to plywood / plastic board & better furnish to concrete surface finish.
SEND ENQUIRY
MS FRAME AND UPVC FORMWORK
We offer MS Frame Made from Steel Sections like Angle/ Channel on which plywood can bolted. The frames areaccurately made as per sizes & give strength & life to plywood / plastic board& better furnish to concrete surface finish.
SEND ENQUIRY

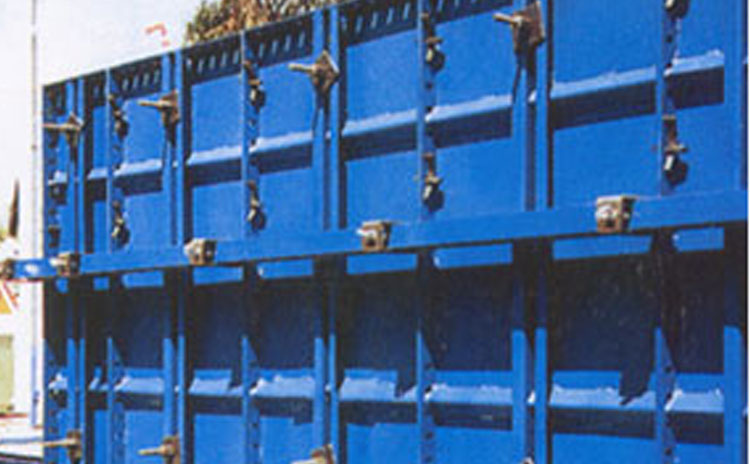

ONLY MS FORMWORK
Provide each and every kind of MS formwork which is used for any industrial purpose. Most of MS framework used in construction sites.
SEND ENQUIRY
