Specification of Printed Armature DC Servo Motors

Models of Printed Armature DC Servo Motors are available in B series and BR series. Models with rated torque in the range of 34 Ncm to 1432 Ncm. Rated speed of 3000 RPM. Some of these models are manufactured with inbuilt tachogenerator.

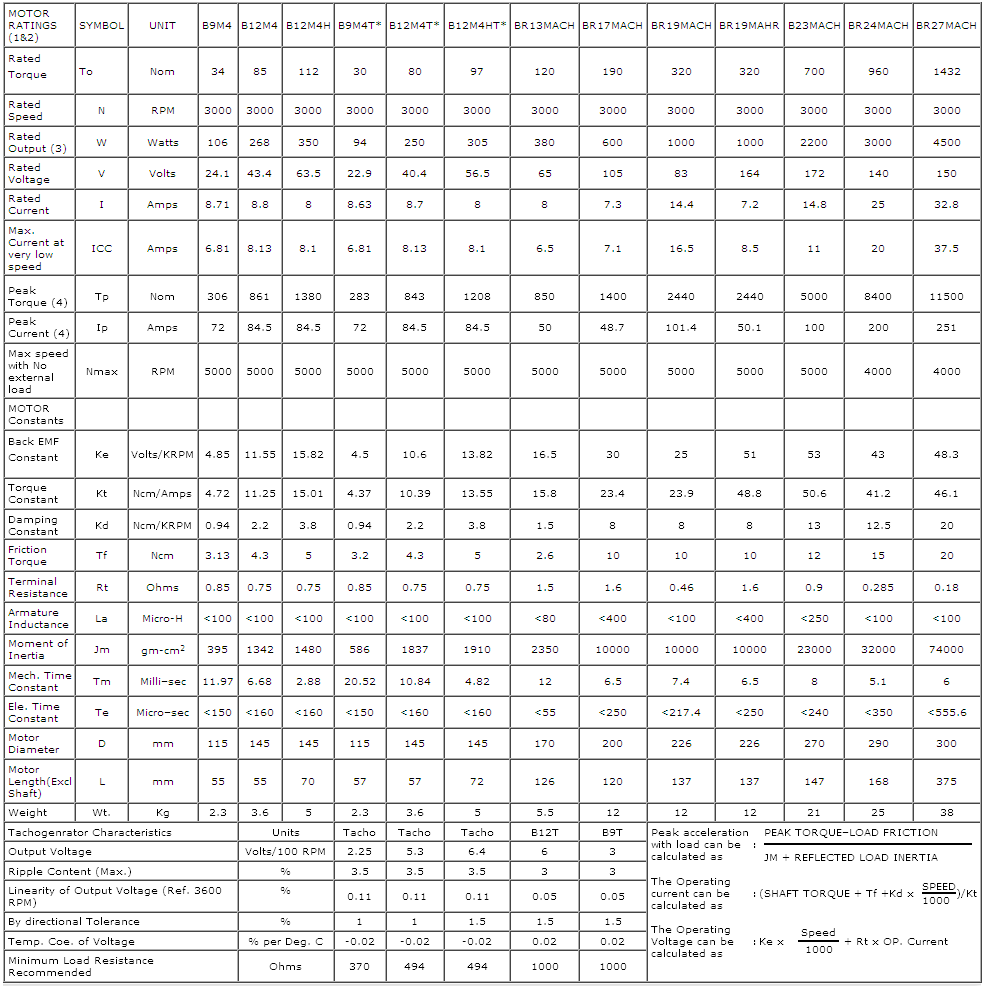

Performance figures


Mounting on metal plate with thermal insulation (200 x 200 x 10mm) and pure DC Supply, ambient temperature, 0 deg C to 40 deg C, for motors up to 300 Watts
Mounting on metal plate with termal insulation (400 x 400 x 10mm) and pure DC supply, ambient temperature, 0 deg C to 40 deg C for motors above 300 Walts
Motors normally used in a large variable speed range. Extended duty at rated output not recommended. Allowed cycle S3 - 50ms, 1%
* This motor is having inbuilt Tachogenrator.
