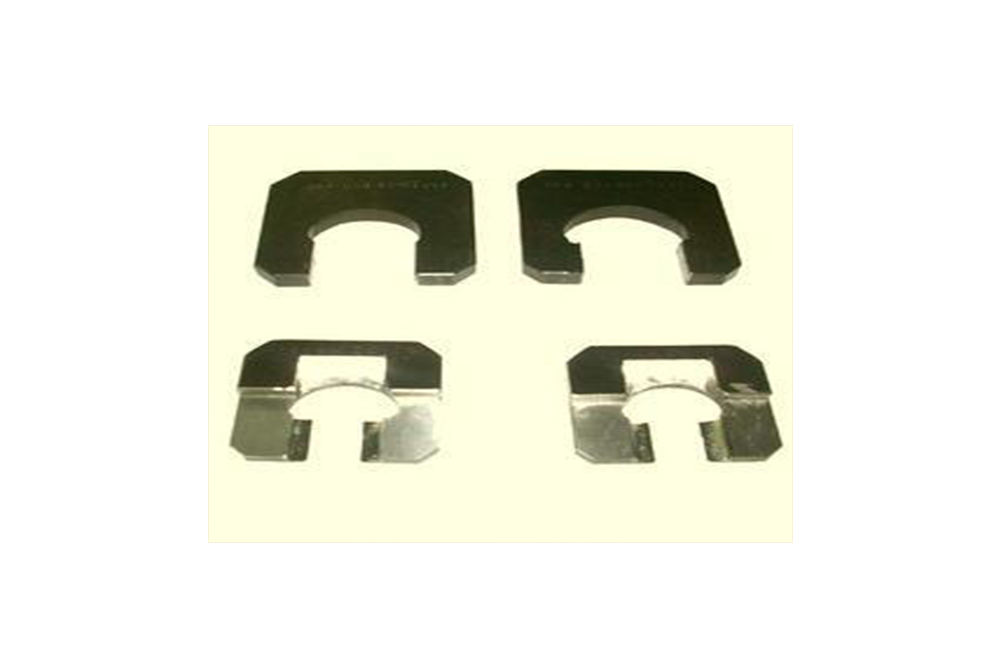

Snap Gauges

In order to meet the diverse requirements of our clients, we are engaged in offering a gamut of Snap Gauges. Offered snap gauges are used in production settings where specific diametrical or thickness measurements. These snap gauges are manufactured as per the set standards utilizing excellent quality components and avant-garde technology. Also, offered snap gauges are stringently checked on diverse quality parameters so as to deliver a perfect range.

Features:

• Sturdiness
• Dimensional accuracy
• Fine finish

Types:

• Single ended progressive type
• Double ended
• Adjustable frame type
• Adjustable frame type

Specification:

• Measuring Range: 0 - 30 mm(0-1.2")
• Limit Error: ± 0.03 mm

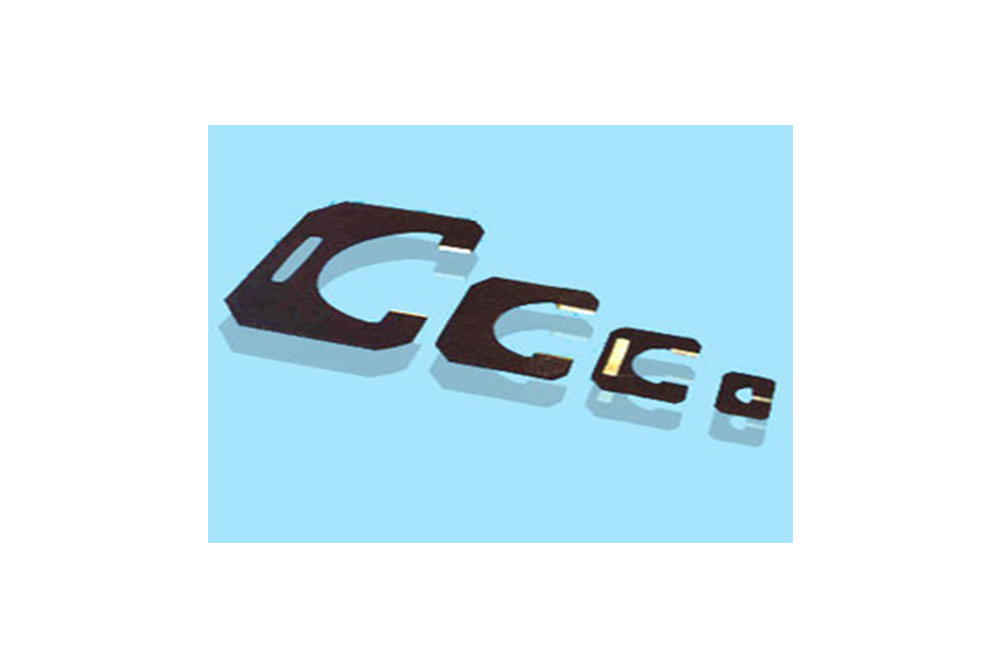

Plain Snap Gauges

We are instrumental in offering our clients with a qualitative range of Plain Snap Gauges. These are developed using both steel and tungsten carbide as well as special slip and loose slips that conform to the IS, DIN,BS, JIS and other specifications along with mike check sets and wear protector sets. Our range is also approved for exceptional calibration and traceability and is presented in varied combinations.

Features:

• Corrosion proof
• High calibration
• Sturdy construction
• Cost effectiveness

Types:

Single ended progressive type

• They are most popular snap gauge types owing to its fast gauging method. The front portion of the gauge is the GO member. As the gauge slides into the work-piece it reaches the NOGO member area where it (ideally) stops sliding.

Double ended

• They have dedicated GO and NOGO sides. The gauge has to be inserted in each side to know if it has reached the limit. Although it is a comparatively slow method of gauging it is more reliable and allows more gauging area thereby lower wear and higher gauge life.

Adjustable frame type

• They offer the flexibility of building up your own gauge in any size. It is used mostly where the number of components to be inspected is less but the variety of sizes to be inspected is more.

Specification:

• 0.5 mm. to 4 mm. in Split type design.
• 4 mm. to 160 mm. in Single ended progressive type or double ended type.
• 0.5 mm. to - 360 mm. in Adjustable type design.

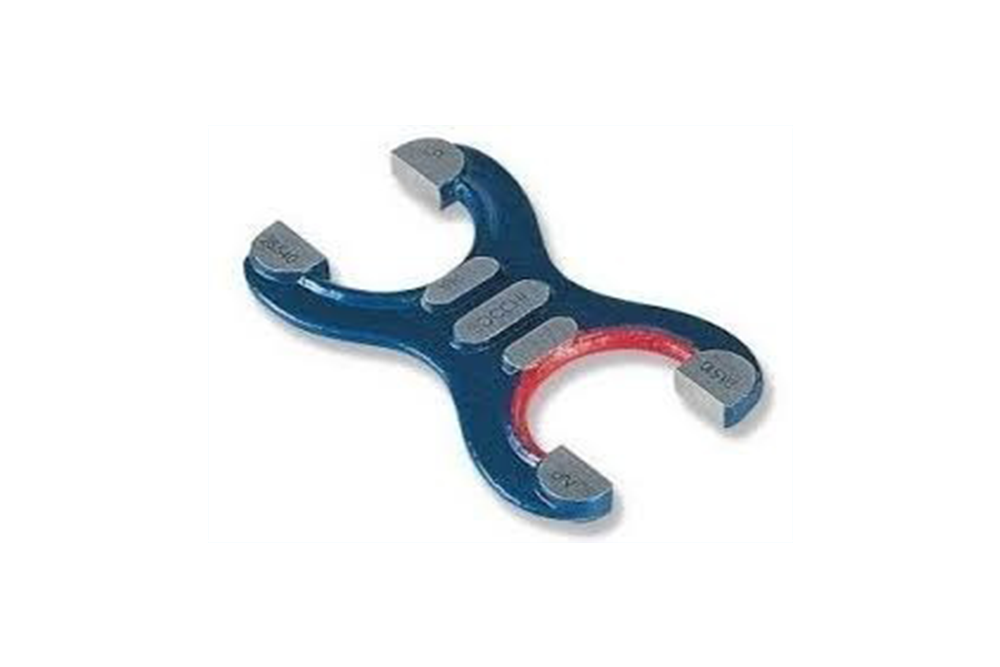

Double Ended Snap Gauges

Leveraging on our immense industry expertise, we are procuring Double Ended Snap Gauge. This double ended snap gauge is procured from trustworthy vendors of the marketplace who design this in sync with industry standards. The offered gauge is highly recommended for high degree wear resistance in different applications. In addition to this, we are delivering this gauge in various specifications to choose the best match with applications specific requirements.

Features:

• High performance
• Accurate results
• Durability
