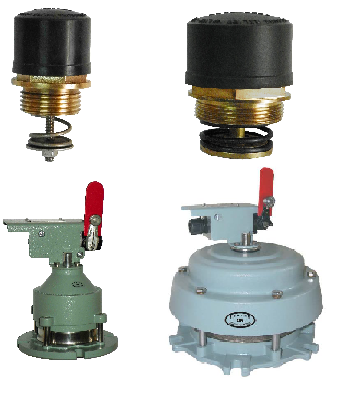

Pressure Relief Valve

  • PRV is a safety device used in the distribution transformer up to 5 MVA, OLTC, and similar equipment. The PRV is used to prevent heavy damages of the tank due to the sudden rise of internal pressure.

Exclusive Features of our 1" & 2" Pressure Relief Valves:

  • Compact, Economical and highly reliable design
  • The short tail allows an easy place for any portion of the cover
  • Bursting pressure adjustable from 22 to 70 Kg/sq. cm
  • Rugged Forged Brass body and Shutter with 1" and 2" BSP outer thread for Vertical and Horizontal mounting of the Tank
  • Center Rod is Made out of Brass to Ensure a Safe and Steady Service and a Long Life
  • Protection Built into the Cap in order to direct any Oil Spills Downward
  • The Valve can be used as filling Cap too
