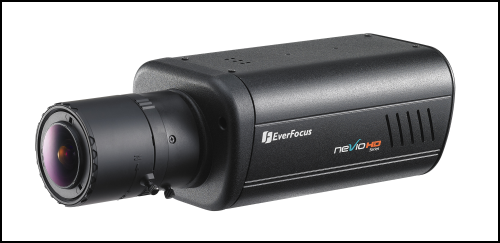

EAN3300 is a 3 Megapixel high-definition (HD) network camera which delivers high definition image quality. EAN3300 supports both H.264 and M-JPEG multi-streaming. The camera has a built-in slot for a micro SDHC card, providing uninterrupted recording when network system is down. Power Over Ethernet (IEEE 802.3af) supplies power to the camera via the network for easy installation with only one cable, eliminating the need for power cables and reducing installation costs. EAN3300 conforms to ONVIF/PSIA for compatibility with other network video devices – even from other manufactures
Features
• 3 Megapixel high-definition (HD) network camera
• 1/2.8” Full HD color CMOS image sensor supports with both H.264 and M-JPEG in full frame rate
• High Performance Noise Reduction Function
• Video Encoder including Line Driver for NTSC/PAL TV Signal
• Dual Codec for H.264 and M-JPEG
• Built-in micro SDHC slot for a SDHC card enabling local storage
• Provide true Day/Night functionality with IR removable filter
• Built-in network interface (10Base-T/ 100Base-TX) for remote monitoring by PC
• Two Way Audio
• ONVIF/PSIA compliant
EDN3340 is a 3 Megapixel high-definition (HD) network camera which delivers high definition image quality. EDN3340 supports both H.264, MPEG-4 and M-JPEG multi-streaming. The camera has a built-in slot for a micro SDHC card, providing local recording when the event was triggered. Power over Ethernet (IEEE 802.3af) supplies power to the camera via the network for easy installation with only one cable, eliminating the need for power cables and reducing installation costs. EDN3340 optimizes the IRIS opening under all lighting conditions with motorized Vari-focal P-IRIS Lens and our own algorithm. EDN3340 conforms to ONVIF / PSIA for compatibility with other network video devices – even from other manufacturers. You can also use EverFocus Mobile Applications to remotely view the live views of the cameras through your handheld devices; or use EverFocus CMS to remotely manage multiple IP devices connected on the network.
Features
• 3 Megapixel high-definition (HD) network camera
• 1/3” Full HD color CMOS image sensor delivers high resolution, and supports both H.264 、MPEG-4 and M-JPEG in full frame rate
• P-IRIS Lens with a stepper motor for exact positioning to improve the IRIS performance
• Provides True Day/Night functionality with automatic IR filter operation
• High Performance Noise Filter improves image quality
• Extended IR range of up to 20M/ 65ft. with 33 LEDs
• Vandal Proof:IK10-rated metal housing
• Dual power capability PoE or 12 VDC for flexible installation
• ONVIF/PSIA compliance interoperates with broad range systems
• Built0in micro SDHC slot for a SDHC card enabling local storage
• Local alarm inputs and outputs
• Two Way Audio transport (line level input/output)
Different Models of this product:
EDN Series is a mini palm sized dome network camera, delivering megapixel high definition image quality, supports H.264, MPEG-4 and M-JPEG video compression codec. EDN Series support 19 IR LEDs with mechanical ICR and auto light sensor for day and night monitoring. The camera has a built-in micro SD card slot, providing local recording when the event is triggered. Power over Ethernet (IEEE 802.3af) supplies power to the camera via the network for easy installation with only one cable, eliminating the need for power cables and reducing installation costs. EDN Series conforms to ONVIF for compatibility with other network video devices – even from other manufacturers. You can also use EverFocus mobile applications to remotely view the live views of the cameras through your handheld devices; or use EverFocus CMS to remotely manage multiple IP devices connected on the network.
Features
• 1/2.7” color CMOS image sensor delivers 2 megapixel resolution
• Mini palm-sized, easy Installation
• Provides true day / night functionality with automatic IR filter operation
• Wide dynamic range function
• Extended IR range of up to 10 meters with 19 IR LEDs
• Multi-streaming from H.264, M-JPEG or MPEG-4.
• H.264 Up to 30 fps at 1920 x 1080 of video resolution
• Built-in microphone
• Built-in micro SD card slot enable edge recording.
• Support motion detection & email notification
• Power over Ethernet
• Supports live monitoring of video from mobile devices via MobileFocus / MobileFocus Plus Apps (iOS and Android)
EHN3340 is a 3 Megapixel high-definition (HD) network camera which delivers high definition image quality. EHN3340 support both H.264 and M-JPEG multi-streaming. The camera has built-in slot for a SDHC card, providing local recording when the event was triggered. Power over Ethernet (IEEE 802.3at) supplies power to the camera via the network for easy installation with only one cable, eliminating the need for power cables and reducing installation costs. EHN3340 optimizes the IRIS opening under all lighting conditions with a motorized Vari-focal P-IRIS lens and as well as our own algorithm. EHN3340 is ideal for outdoor applications that require super image detail and IP68 supported. EHN3340 conforms to ONVIF / PSIA for compatibility with diverse network video devices.
Features
• 3 Megapixel high-definition (HD) network camera
• 1/3” Full HD color CMOS image sensor delivers high resolution, and supports both H.264 and M-JPEG in full 30fps frame rate
• P-IRIS Lens with a stepper motor for exact positioning to improve the IRIS performance
• Provides True Day/Night functionality with automatic IR filter operation
• High Performance Noise Filter improves image quality
• IP68 and vandal resistai
• Extended IR range of up to 30M/ 98.4 ft. with 33 LEDs
• Dual power capability PoE or 12VDC for flexible installation
• ONVIF/PSIA compliance interoperates with broad range systems
• Built-in SDHC slot for a SDHC card enabling local storage
• Local alarm inputs and outputs
• Two Way Audio transport (line level input/output)
EverFocus introduces the EZN series, the latest Megapixel HD network camera that captures the most details in stunning HD quality. The EZN3340 supports multi-streaming in both H.264 and M-JPEG for various network conditions. It features a built-in slot for micro SDHC card, providing uninterrupted recording in case the network is down. Power Over Ethernet (IEEE 802.3af) delivers power to the camera via a single network cable, eliminating the need for power cables and greatly simplifying the installation. The EZN3340 supports motorized Vari-focal auto IRIS lens and remote Zoom & Focus lens control via web browser. With IP66 waterproof rating, the EZN3340 delivers ideal performance in moisture and various outdoor weather conditions that require superior image detail. The EZN3340 conforms to industry ONVIF/PSIA standard, allowing great interoperability with a wide range of 3rd party network video devices.
Features
• 3 Megapixel HD Outdoor IR & WDR Bullet Network Camera
• HD color CMOS image sensor and supports both H.264 and M-JPEG in full 30fps frame rate.
• High Performance Noise Filter improves image quality
• Dual Codec for H.264 and M-JPEG allows choice of stream formats to fit the application
• Provides true Day/Night functionality with automatic IR filter operation
• Two Way Audio transport (line level input/output)
• Dual power capability PoE or 12VDC for flexible installation
• Local alarm inputs and outputs
• IR cut filter support
• E-Z lock ring at the base is designed with easy to grip tabs for firmly clamp the camera in place, plus a set screw for added security
• Easy bottom access to video test point and lens control inside weather-proof cover plus Remote Zoom & Focus adjustment by web browser
• IP66 and vandal resistant
• Built-in micro SDHC slot for a SDHC card enabling local storage
