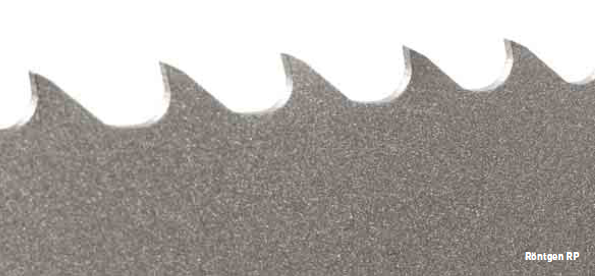

Bi-alfa cobalt RP
RÖNTGEN bi-alfa cobalt RP is an extension of the highly successful bi-alfa M42 range. The tooth shape is produced with a cutting angle of 16° without any loss in tooth strength. This aggressive tooth form is ideal for hard materials, improving chip flow and blade life.
Recommended applications
- Long chipping materials
Bi-alfa RP Master
RÖNTGEN bi-alfa RP Master combines the precision sawing capabilities of the Master blade with the aggressive 16-degree cutting angle of the RP-tooth. The CBN ground finish linked to the triple chip tooth geometry guarantees fast and square sawing, and excellent cut finish even on the most difficult-to-cut materials.
Recommended applications
- Heat resistant steels, exotic alloys and stainless steel.
- Titanium, nickel base alloys
- Nickel based super alloys
Bi-alfa Master
The RÖNTGEN bi-alfa Master band saw blade harnesses the benefits of "triple chip" tooth geometry, widely recognised as the optimal form for production sawing. The teeth are CBN precision ground to form a chamfered high tooth (A) and a pair of lower finishing teeth (B & C). Cutting faces are ground parallel to the back edge ensuring absolutely straight cutting. The M42 tooth tips have a height difference calculated to suit the typical chip load characteristics of each blade width/pitch combination. High cutting rates can be achieved without compromising blade life or cut finish.
Recommended applications
- Heat resistant steels,
- Exotic alloys and stainless steel.
- Heat resistant steels and titanium
Bi-alfa cobalt M42r
The RONTGEN bi-alfa cobalt band saw blade has HSS M42 cutting tips. The high wear resistance of the saw blade results from the very hard and evenly distributed carbides in the tooth tips, formed during the hardening and temple ring process. The martensitic structure of the cutting tips and high cobalt content create excellent hot hardness and toughness reducing wear rates at high sawing speeds. With a high chromium backing . the saw blade can with-stand the considerable flexing stresses, tension and blade guide pressure present in modern sawing machines.
All Material with a tensile strength up to 1400N/mm2(44HRc)
Recommended applications
- All material with a tensile strength up to 1400N/mm2{44HRc}
Supply options
- Up to 13mm band width –optional coil length of 30m packed in a plastic box
- Standard coil length 50, 75 or 100m, dependant on blede width , and packed in wooden boxes
- Welded loops
- For alternative coil lengths and packing options please contact us directly

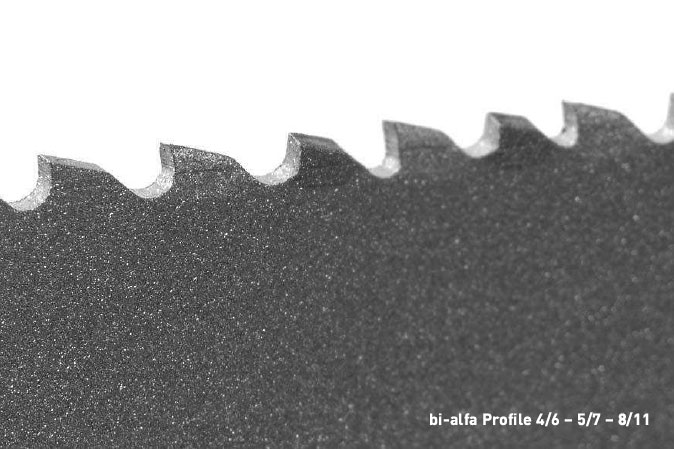

Bi- alfa Profile and Profile WS
The new RONTGEN bi-alfa Profile and Profile WS provides outstanding performance for all interrupted cuts!
Shock loading conditions in interrupted cuts like structural steel section, tubes, profiles and small solid materials can reduce the lifetime of standard saw blades considerably. For these demanding applications RONTGEN offer the perfect solution with Profile and Profile WS .
Recommended applications
- Tubes and Profile
- Structurals steel sections with high tension load
Bi-alfa cobalt WS
The RONTGEN bi-alfa cobalt WS band saw blade is produce with HSS M42 cutting tips for abrasion resistance. The saw blade features a wider than normal set to create more clearance through the cut. The wider cutting channel helps to prevent the blade from binding and stalling in the cut, a common feature of structural steels.
Recommended applications
- All work piece – especially structural steels – with high tension.
Bi-alfa cobalt WS ALU
The RONTGRN bi –alfa cobalt WS ALU band saw blade is produce with HSS M42 Cutting tips for abrasion resistance. The saw blade features a wide kerf and a more aggressive cutting angle. This facilitates a more efficient chip flow, reduces binding and clogging , and promotes longer blade life for all non – ferrous metals.
Recommended applications
- Cutting of non-ferrous plate, bar and gates and risers on casting. For aluminium with a silicon content below 7%.
