Strut Channels
Strut section is a multiple use section. It is very easy to erect a bolted structure with this section. It has another advantage that the structure can be erected on the site with the minimum requirement of other equipments or tools. The surface treatment could be pre-galvanized, electro galvanized, and powder coated or plain.
The connection fitting and fasteners like bolts and nuts, spring nuts are also available by requirement. If you have any requirement pls feel free to contact us any time.
Strut section can be used in :
- Storage System
- Steel Structure
- Conveyor Guides
- Automobile Industry
- Furniture

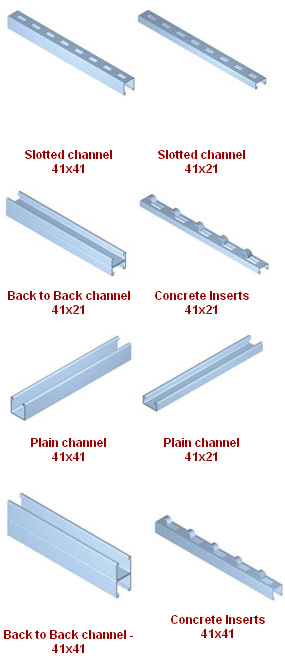

PLAIN CHANNEL 41 X 41
PC 44 (plain channel 41x 41)
Material thickness = 2.5 mm
Weight = 2.64 Kgs/m |
|
PLAIN CHANNEL 41 X 21
PC 42 (plain channel 41 x 21)
Material thickness = 2.5 mm
Weight = 1.84 Kgs/m |
|
BACK TO BACK CHANNEL
41 X 41
BTB 44 (back to back channel 41 x 41)
Material thickness = 2.5 mm
Weight = 5.28 Kgs/m |
|
BACK TO BACK CHANNEL
41 X 21
BTB 42 (back to back channel 41 x 21)
Material thickness = 2.5 mm
Weight = 3.68 Kgs/m |
|

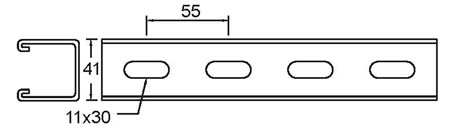

SLOT PATTERNS
Strut channels are produced with slots also with a standard length of 3 mtrs. Extra long up to 6 mtrs. can also be produced on request.
