Mimic Panels and Desks


What is a Mimic Panel ?

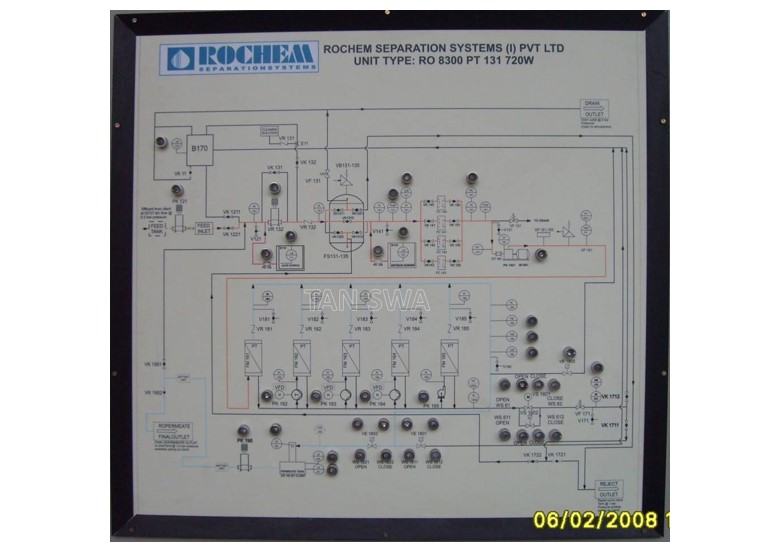

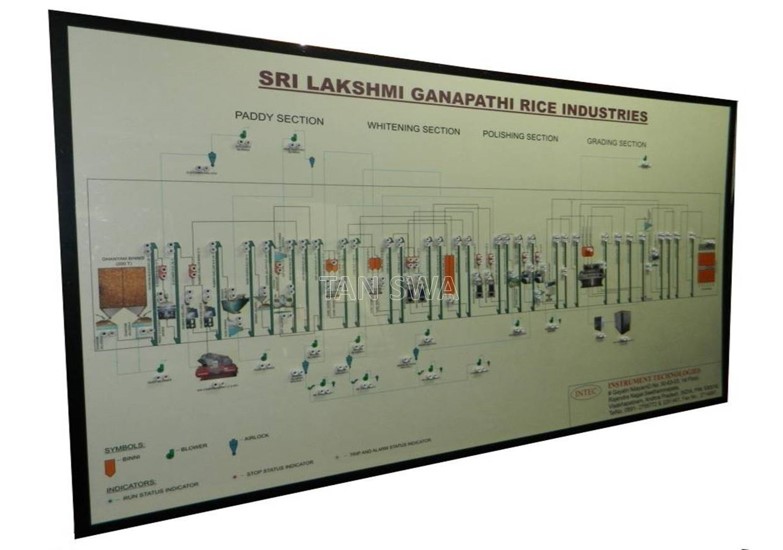

Mimic & Annunciator panels are being used in industry for many years to display Process Status and Alarms. They are now regaining popularity due to its non-dependence on any communication network. In Mimic Panels, the process or flow charts are pictorially represented on the front side of a Control desk/ Panel.
Generally mimic displays are printed on polyester or polycarbonate sheets and provided with acrylic front sheet for protection.
LEDs and other Indicators can be fitted on the display for Process Indication. We supply Conventional Mimics as well as Mosaic Mimics and Annunciator Panels along with MS Powder Coated/ Stainless Steel Enclosures and Internal Wiring of Mimic LEDs/ Annunciator Windows. We have in-house team of designers to design the Mimic Display as per client's process layout.

Our Range includes:

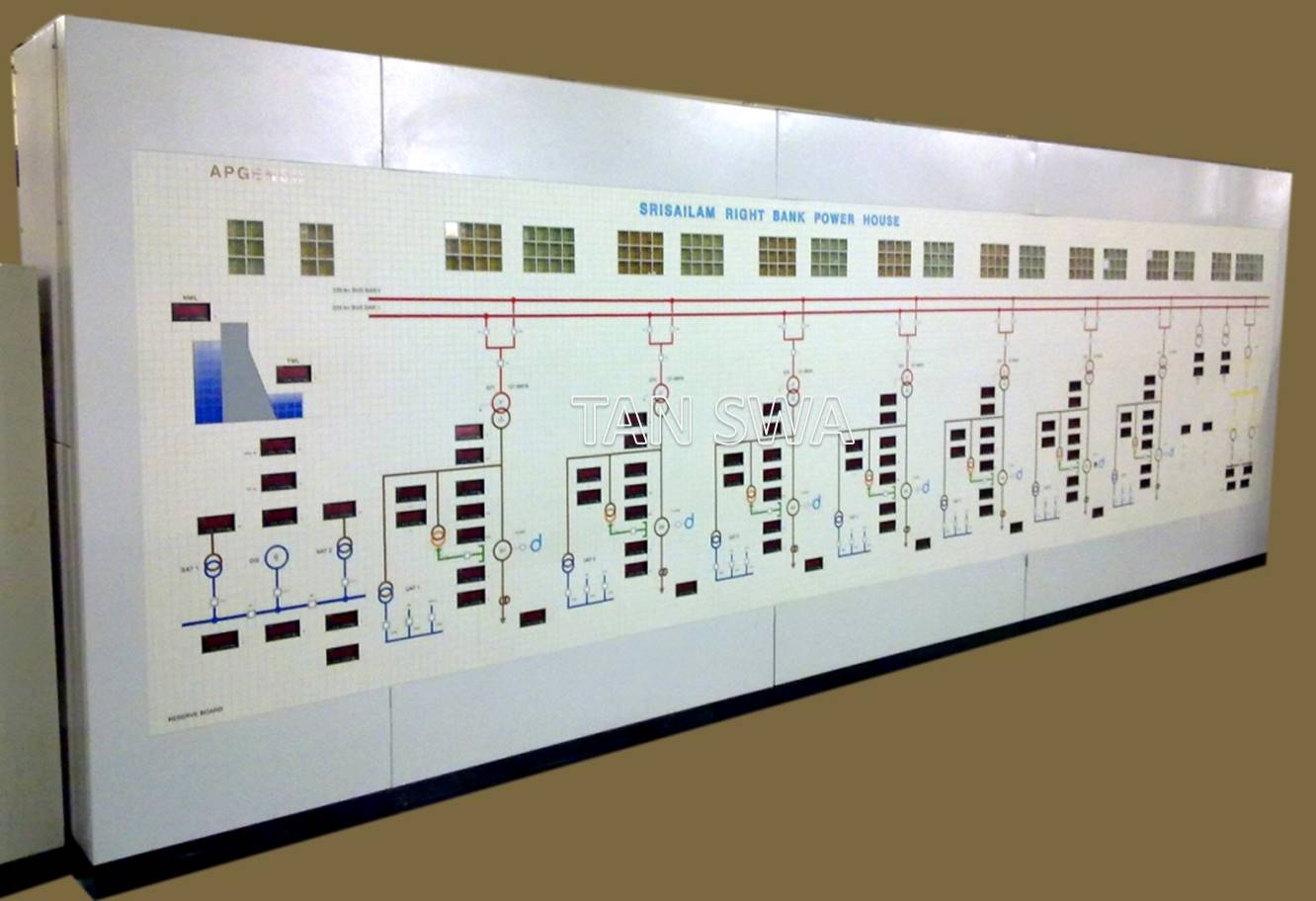

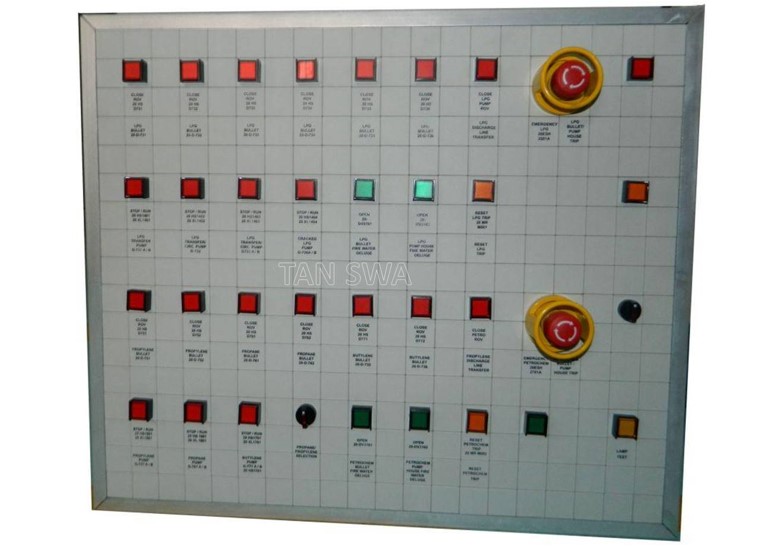

  • Mosaic Mimic Panels with 25 x 25 Mimic Tiles

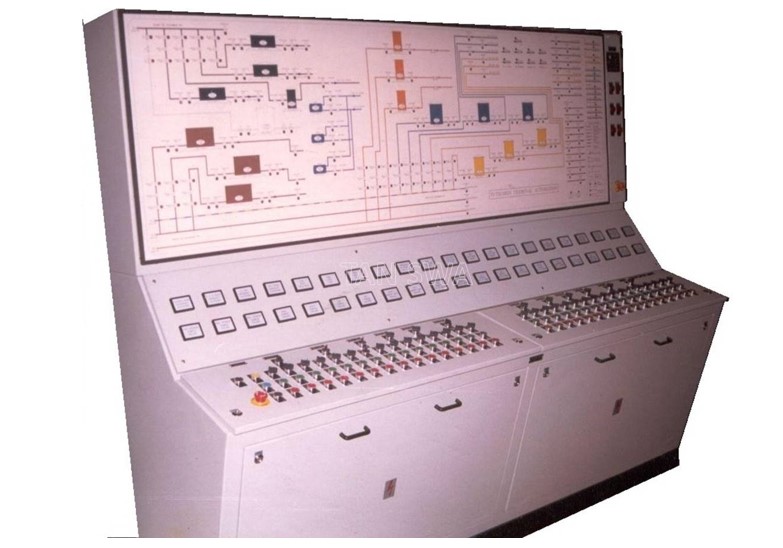

  • Mosaic Desk

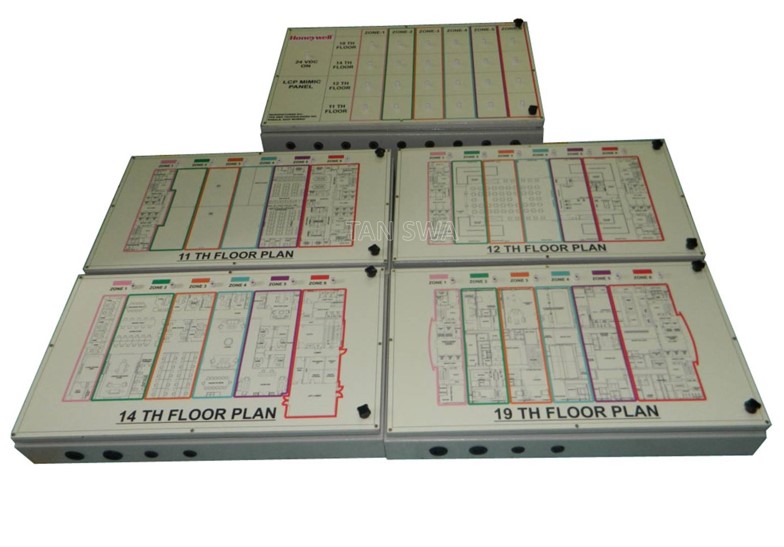

  • Addressable Fire Alarm Mimic Display
  • Security Desk Mimic

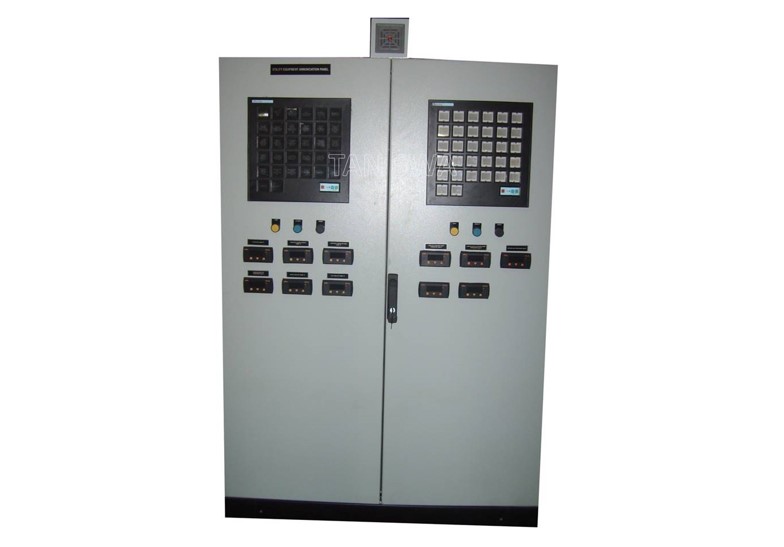

  • Annunciator Panels with Minilec/Insatalrm/other make Annunciator Windows
  • Combination of Annunciator Window and Mimic Display Panels
  • Being located in Navi Mumbai, our supplied Panels including conventional & Mosaic Mimic Panels are installed not only in India but also in various countries like Dubai, Qatar, Saudi Arabia KSA, Oman, Kuwait and also in Austria, Germany, USA, Australia, Sri Lanka, Singapore, Malaysia, Vietnam, Indonesia, India, Nigeria, China, South Korea, Bangladesh, Zambia etc

    PRODUCT SHOWCASE

    10 METER LONG IMCC & VFD PANEL WITH 20 SECTIONS HAVING 200+ FEEDERS

    • End User: IDMC Kannauj Plant
    • Client: Supertech Instrumentation

    MCC CUM PLC PANEL

    • End User: BKT
    • Client: Supertech Instrumentation

    VFD PANEL

    • End User: Navbharat Coal, Hyderabad
    • Client: Rude India

    VFD PANEL WITH AIR CONDITIONING UNIT

    • End User: CRI Pumps
    • Client: Supertech Instrumentation

    VFD PANEL WITH ROCKWELL DRIVES

    • End User: IPCA
    • Client: A.D. Electronics (Rexel)

    IMCC PANELS WITH SCHNEIDER COMPONENTS

    • End User: Asian Paints, Oman
    • Client: Supertech Instrumentation

    COMPARTMENTALIZED DRIVE PANEL

    • Consultant: EIL
    • Client: A.D Electronics (Rexel)
