Applications
• Offices, Malls, Showrooms, Boutiques
• Railway Stations, Buses, Trains, Metros
• Meeting Rooms, Exhibitions, Conference Halls
Features
• Can be used for retrofits as well as new projects
• No ballasts or chokes required.
• Excellent substitute for PLC Lamps with 2G11 Base
• Elegant and Sleek
• All Lights manufactured with SMD design with latest technology
• Unique Heat sink design with high surface area for quick heat dissipiation
• Total isolated constant current drivers( Separate)
• Available in Pure White & Warm White Colors
• Consumes 50% to 70% less energy than conventional PLC Tubes
• No UV or RF interference
• No toxic substance like Mercury
Electrical Data
| Input Voltage | AC 65V-265V / 50Hz-60Hz |
| Power Factor | > 0.9 |
| Driver Efficiency | > 0.85 |
| THD | > 15% |

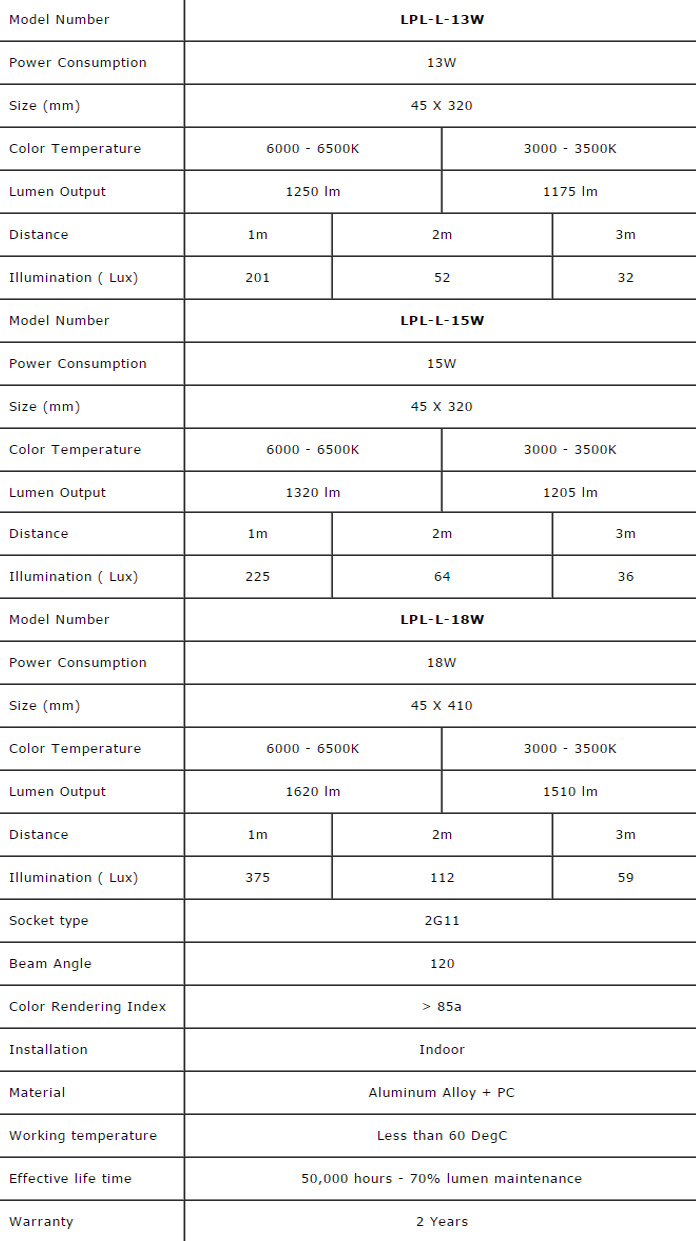

Photometric Characteristics
Installation Procedure
1) In case you are replacing the existing PL Light with LED PL Light, please follow the instructions given
in the manual.
2) In case of new installation, the LED PL Light can be mounted directly on the holder with out ballast
or starter.
Warning - Improper installation of LED PL tube may result in failure of the product. Please follow the instructions carefully
Notes :
• Please contact us for other sizes and wattages
• The design and specifications and subject to change with out prior notice.
